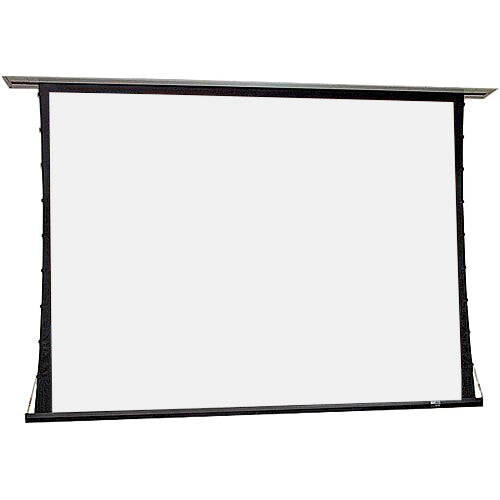

Draper Ultimate Access XL V, 27' 6", NTSC, Matt White XT1000VB, 110 V
- Case dimensions are 14-1/16" high x 11" deep (36 cm x 28 cm), includes trim flange
- Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in the Technical Documents tab for details
- Maximum image width up to 22' (671 cm) wide, depending on surface selection
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area
- Adjustable or removable hoisting brackets included for easy lifting during installation
- Sliding brackets on top of case allow unlimited adjustment for mounting. Sliding brackets inside case accommodate different size screens
- Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling
- Independently motorized ceiling closure panel opens into the case
- Junction box and 110V three-position wall switch included for recessed wall mounting
- Low voltage video interface or other controls can be built into the housing for below ceiling access
- White case standard, black available upon request
- Custom sizes available
- UL Listed

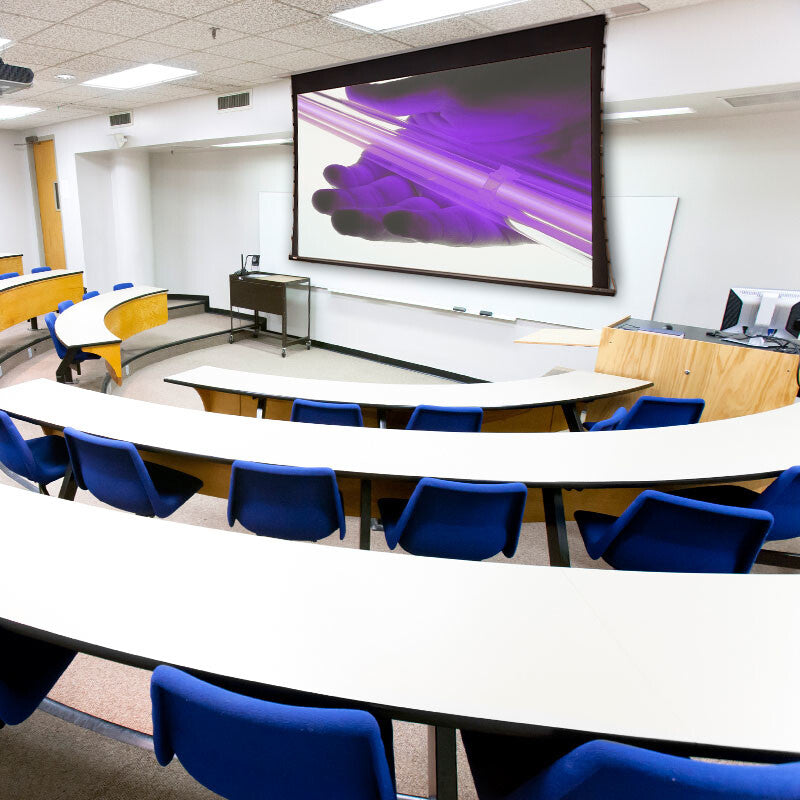

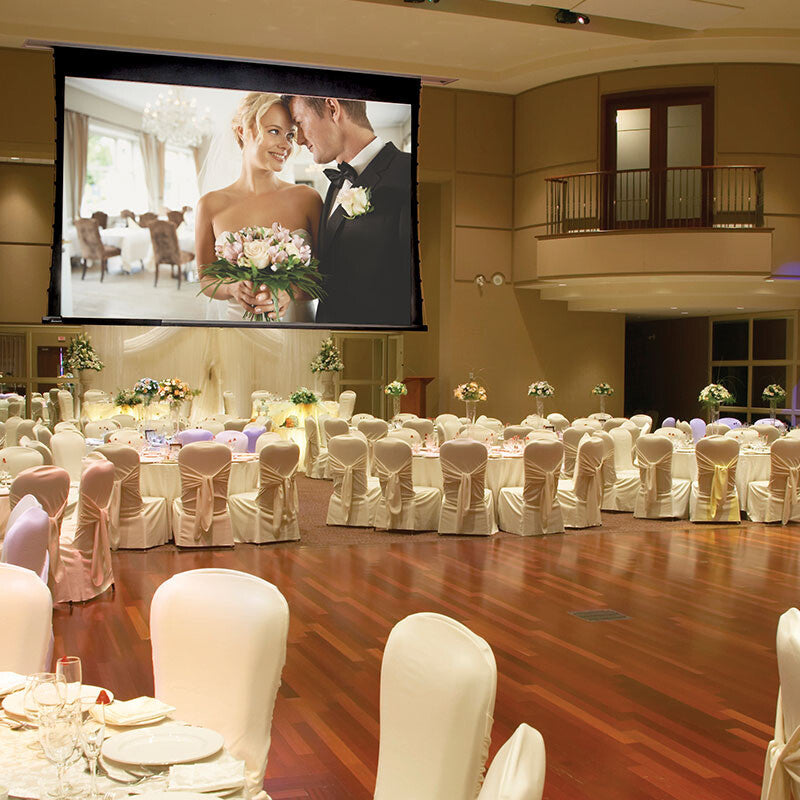

Major venues—conference centers, ballrooms, or university classrooms—benefit from the larger sizes available with the Access XL V electric projection screen. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. A bottom access panel provides easier service and maintenance.
-
Diagonal
-
Drive Type
-
Mounting Type
-
Native Aspect Ratio
-
Viewable Screen Height (H)
-
Viewable Screen Width (W)
