Draper  |  SKU: DR-145018FB

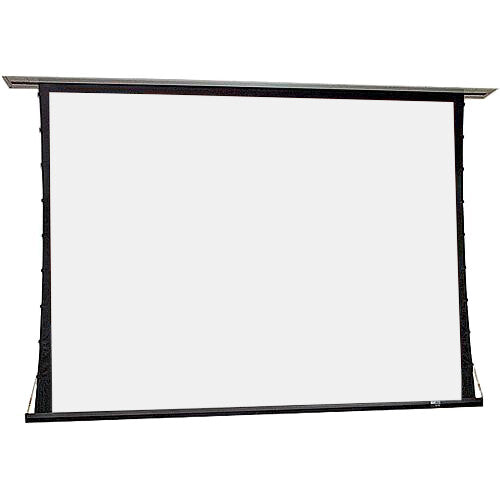

Draper Ultimate Access XL V, 230", NTSC, Grey XH600V, 110 V

  • Case dimensions are 14-1/16" high x 11" deep (36 cm x 28 cm), includes trim flange
  • Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in the Technical Documents tab for details
  • Maximum image width up to 22' (671 cm) wide, depending on surface selection
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area
  • Adjustable or removable hoisting brackets included for easy lifting during installation
  • Sliding brackets on top of case allow unlimited adjustment for mounting. Sliding brackets inside case accommodate different size screens
  • Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling
  • Independently motorized ceiling closure panel opens into the case
  • Junction box and 110V three-position wall switch included for recessed wall mounting
  • Low voltage video interface or other controls can be built into the housing for below ceiling access
  • White case standard, black available upon request
  • Custom sizes available
  • UL Listed
Manufacturer PDFs

LIMITED WARRANTY

manual pdf

leaflet

Ultimate Access XL V, 230", NTSC, Grey XH600V, 110 V

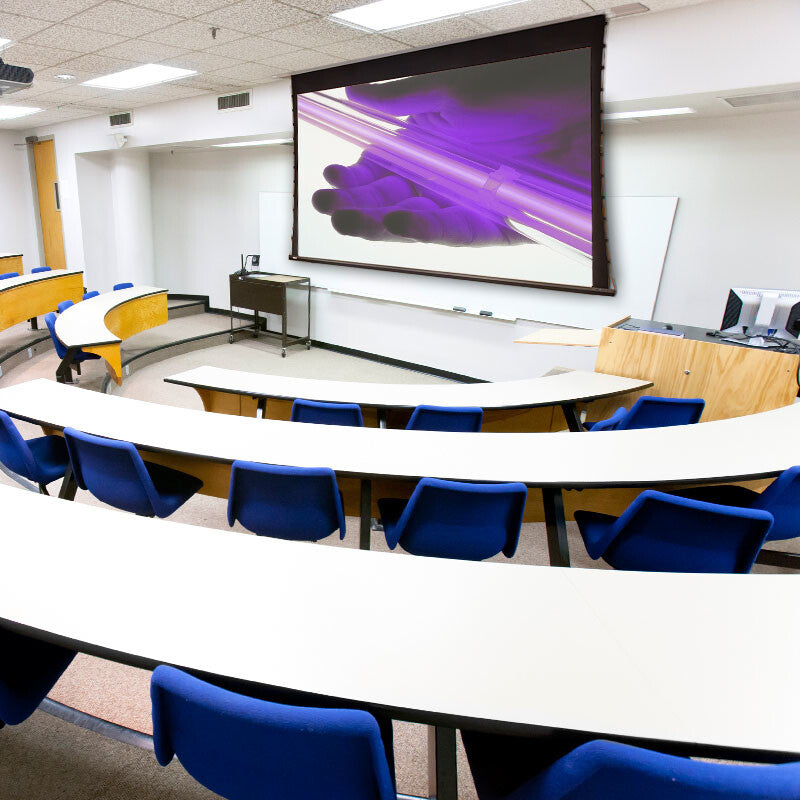

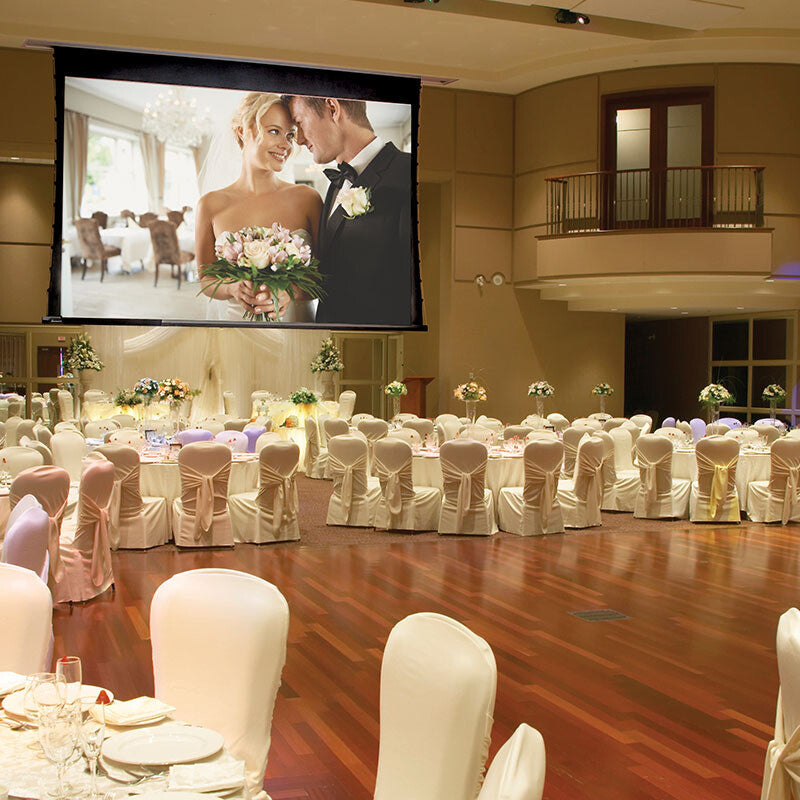

Major venues—conference centers, ballrooms, or university classrooms—benefit from the larger sizes available with the Access XL V electric projection screen. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. A bottom access panel provides easier service and maintenance.
