Draper | SKU:
DR-144013U
Draper Ultimate Access XL E, 200", NTSC, Matt White XT1000E, 110 V, with LVC-IV Low Voltage Controller
- Case dimensions are 14-1/16" high x 11" deep (36 cm x 28 cm), includes trim flange. White case standard, black available upon request
- Built-in controls may increase case length. Mounting brackets may add to case dimensions
- Maximum image width up to 22' (671 cm) wide, depending on surface selection
- Sliding brackets on top of the case allow for adjustments for mounting. Sliding brackets inside case accommodate different size screens
- Black drop standard, depending on screen size. Extra drop above image area available upon request
- Independently motorized ceiling closure panel opens into the case
- Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling
- Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available
- Low voltage video interface or other controls can be built into the housing for below ceiling access
- Custom sizes available
Manufacturer PDFs
Draper Ultimate Access XL E, 200", NTSC, Matt White XT1000E, 1...
$18,526
Ultimate Access XL E, 200", NTSC, Matt White XT1000E, 110 V, with LVC-IV Low Voltage Controller

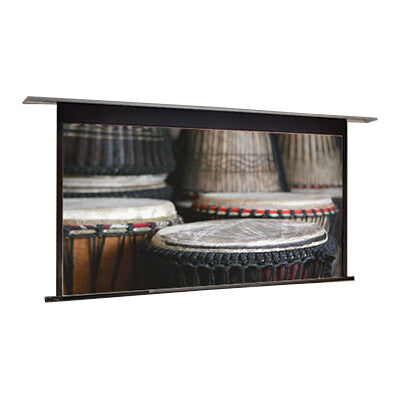

Ultimate Access XL E Electric Projection Screen
Major venues—conference centers, ballrooms, or university classrooms—benefit from the larger sizes available with the Access XL E electric projection screen. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. This free-hanging electric screen maintains flatness due to the weight of the screen and bottom dowel. A bottom access panel provides easier service and maintenance.
-
Diagonal
-
Drive Type
-
Mounting Type
-
Native Aspect Ratio
-
Viewable Screen Height (H)
-
Viewable Screen Width (W)
