Draper  |  SKU: DR-143025

Draper Ultimate Access V, 94", 16:10, Matt White XT1000VB, 110 V

  • Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange
  • Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in the Technical Documents tab for details
  • Maximum image width up to 12' (366 cm) wide, depending on surface selection
  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area
  • Adjustable or removable hoisting brackets included for easy lifting during installation
  • Sliding brackets on top of case allow for adjustments for mounting. Sliding brackets inside case accommodate different size screens
  • Bottom access panel door is detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance

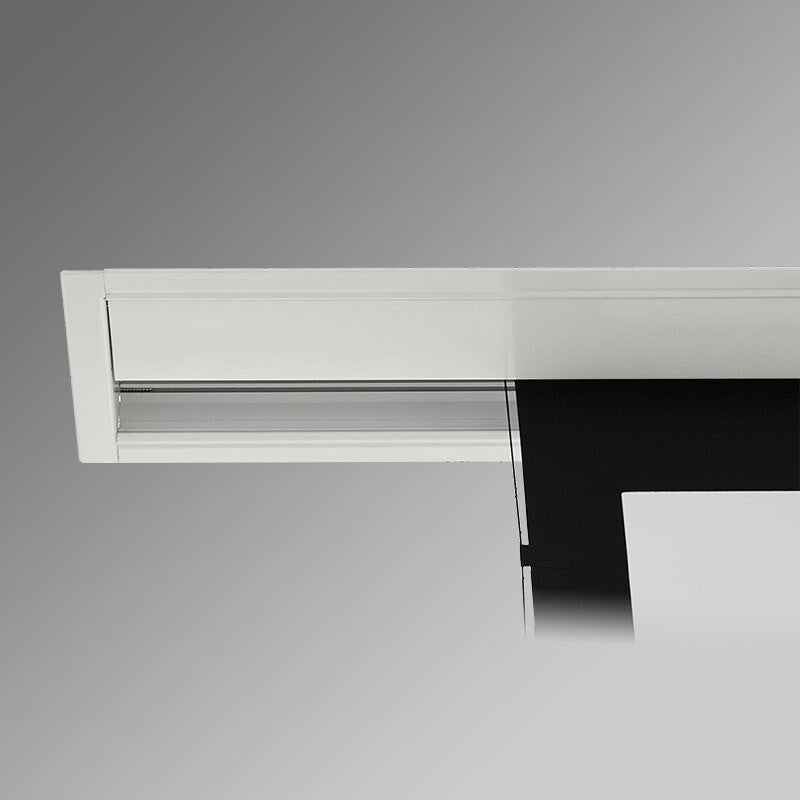

  • Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling
  • RF welded tabs create a more durable seal eliminating separation and stickiness
  • Quick-connect wiring allows for early installation of the case with the addition of the screen later
  • Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available
  • Low voltage video interface or other controls can be built into the housing for below ceiling access
  • White case standard, black available upon request
  • Custom sizes available
  • UL Listed
Manufacturer PDFs

LIMITED WARRANTY

manual pdf

leaflet

Ultimate Access V, 94", 16:10, Matt White XT1000VB, 110 V

Smooth, clean design and complete concealment make the Ultimate Access V projection screen ideal for mid-sized training rooms, boardrooms, home theaters, and universities. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. A bottom access panel door on the case makes service and maintenance easy.

Draper

Draper Ultimate Access V, 94", 16:10, Matt White XT1000VB, 110 V

$10,775
Ultimate Access V, 94", 16:10, Matt White XT1000VB, 110 V

Smooth, clean design and complete concealment make the Ultimate Access V projection screen ideal for mid-sized training rooms, boardrooms, home theaters, and universities. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. A bottom access panel door on the case makes service and maintenance easy.
