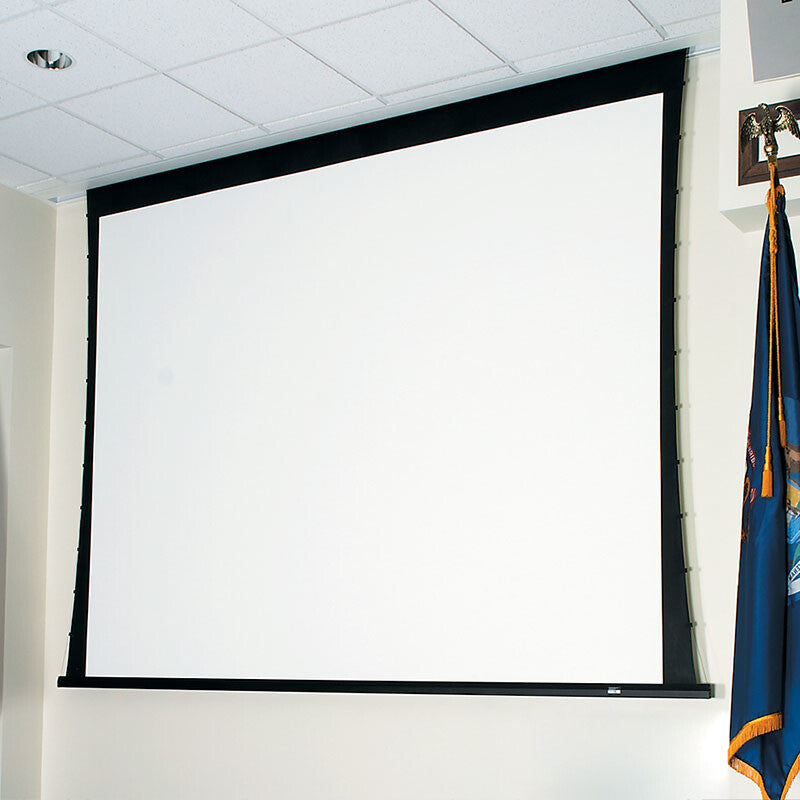

Draper Ultimate Access V projection screen 4.19 m (165") 16:10
- Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange
- Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in the Technical Documents tab for details
- Maximum image width up to 12' (366 cm) wide, depending on surface selection
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area
- Adjustable or removable hoisting brackets included for easy lifting during installation

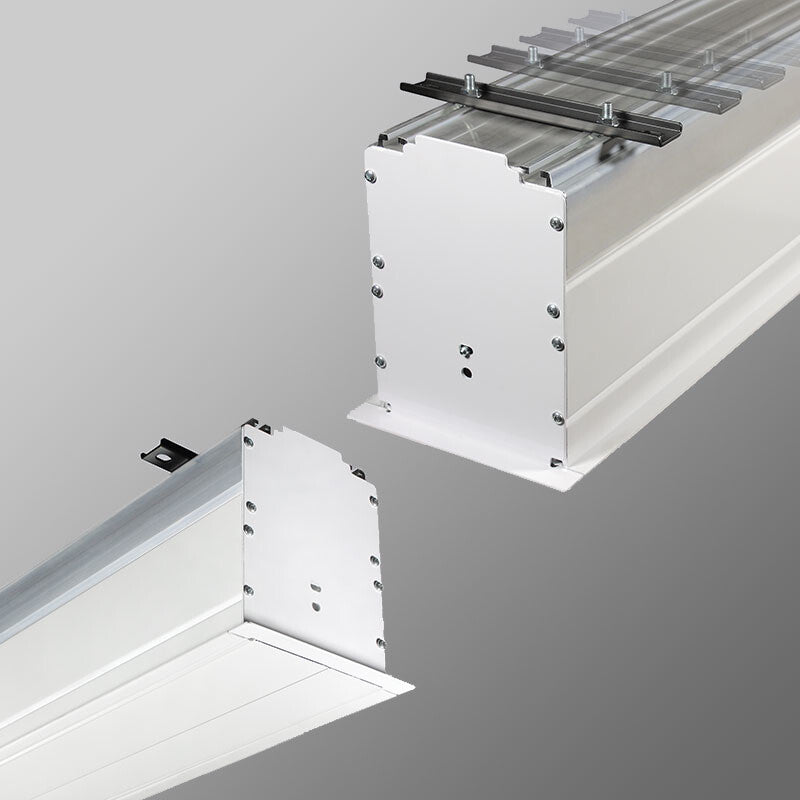

- Sliding brackets on top of case allow for adjustments for mounting. Sliding brackets inside case accommodate different size screens
- Bottom access panel door is detachable or hangs in place with âTâ bracket to provide accessibility for service or maintenance

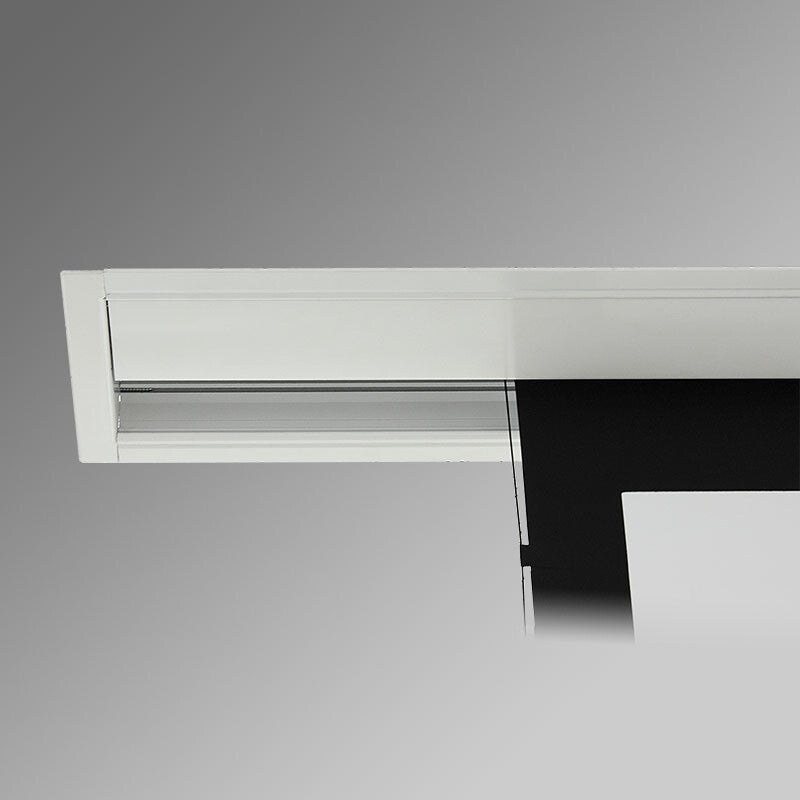

- Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling

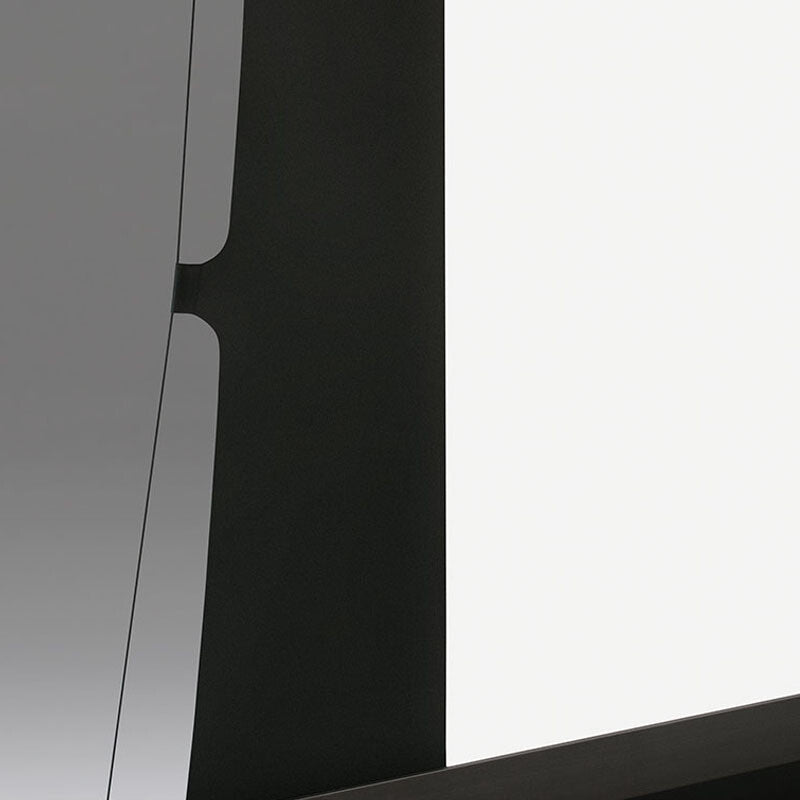

- RF welded tabs create a more durable seal eliminating separation and stickiness
- Quick-connect wiring allows for early installation of the case with the addition of the screen later
Manufacturer PDFs

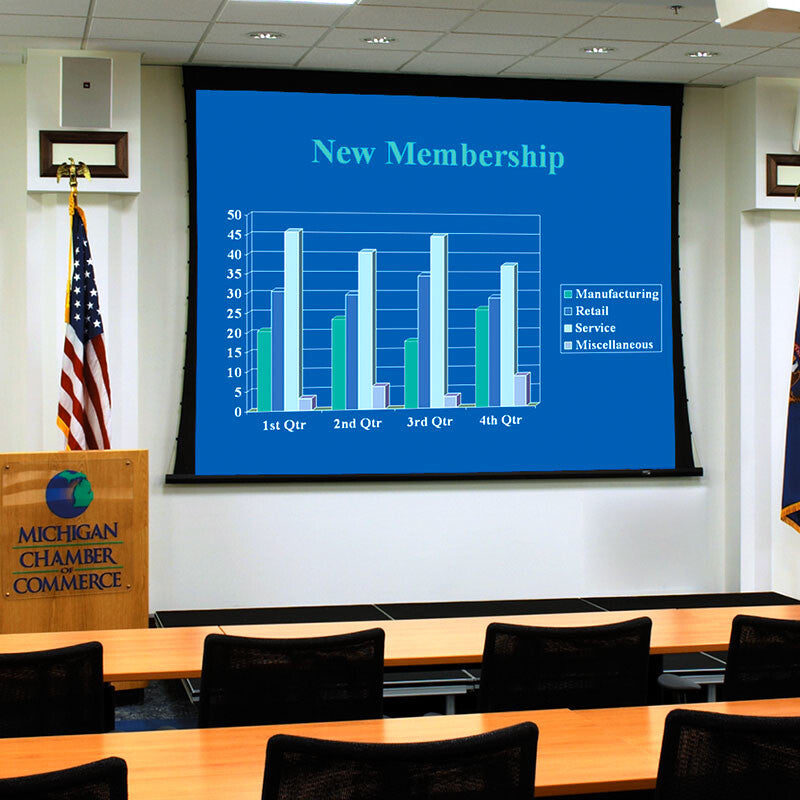

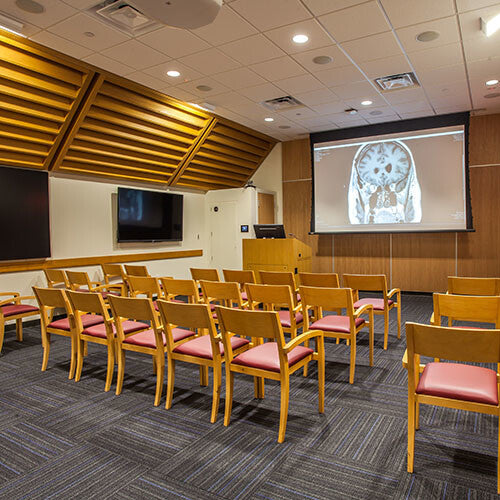

Smooth, clean design and complete concealment make the Ultimate Access V projection screen ideal for mid-sized training rooms, boardrooms, home theaters, and universities. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. A bottom access panel door on the case makes service and maintenance easy.
-
Diagonal
-
Drive Type
-
Mounting Type
-
Native Aspect Ratio
-
Viewable Screen Height (H)
-
Viewable Screen Width (W)
