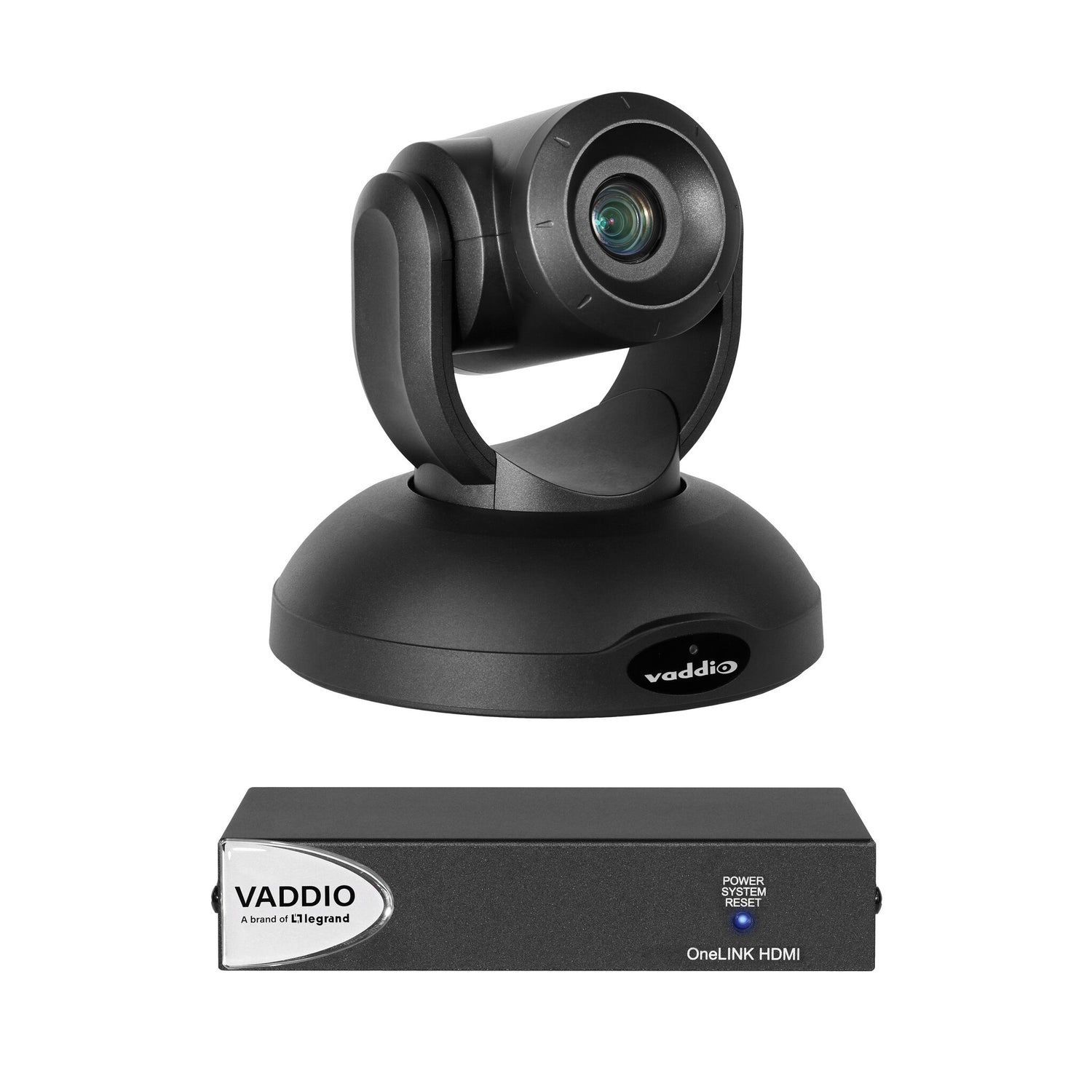

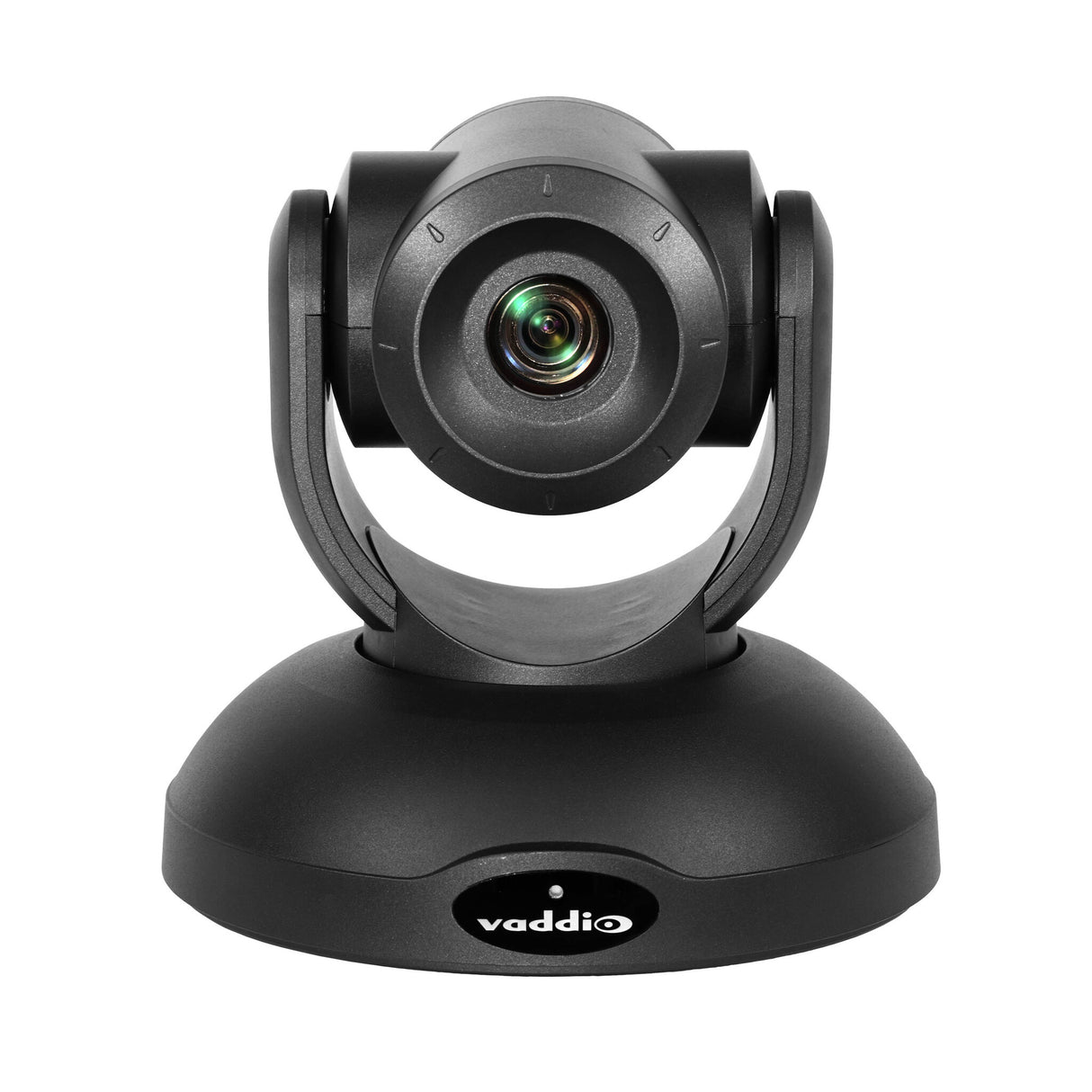

Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System

This system combines the RoboSHOT 20 UHD camera with the OneLINK HDMI Receiver for HDBaseT Cameras to extend power, video and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 20 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.

Key Features:
Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
Horizontal field of view 74° (wide) to 4.8° (tele) at 20x
Imaging and performance comparable to 3-chip cameras
Precise pan and tilt movements from 0.35° to 120° per second
Presenter-friendly IR remote control
Administrative control via web interface
Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)


Vaddio Deployment ToolEasily deploy and manage hundreds of conference rooms with the free desktop application.

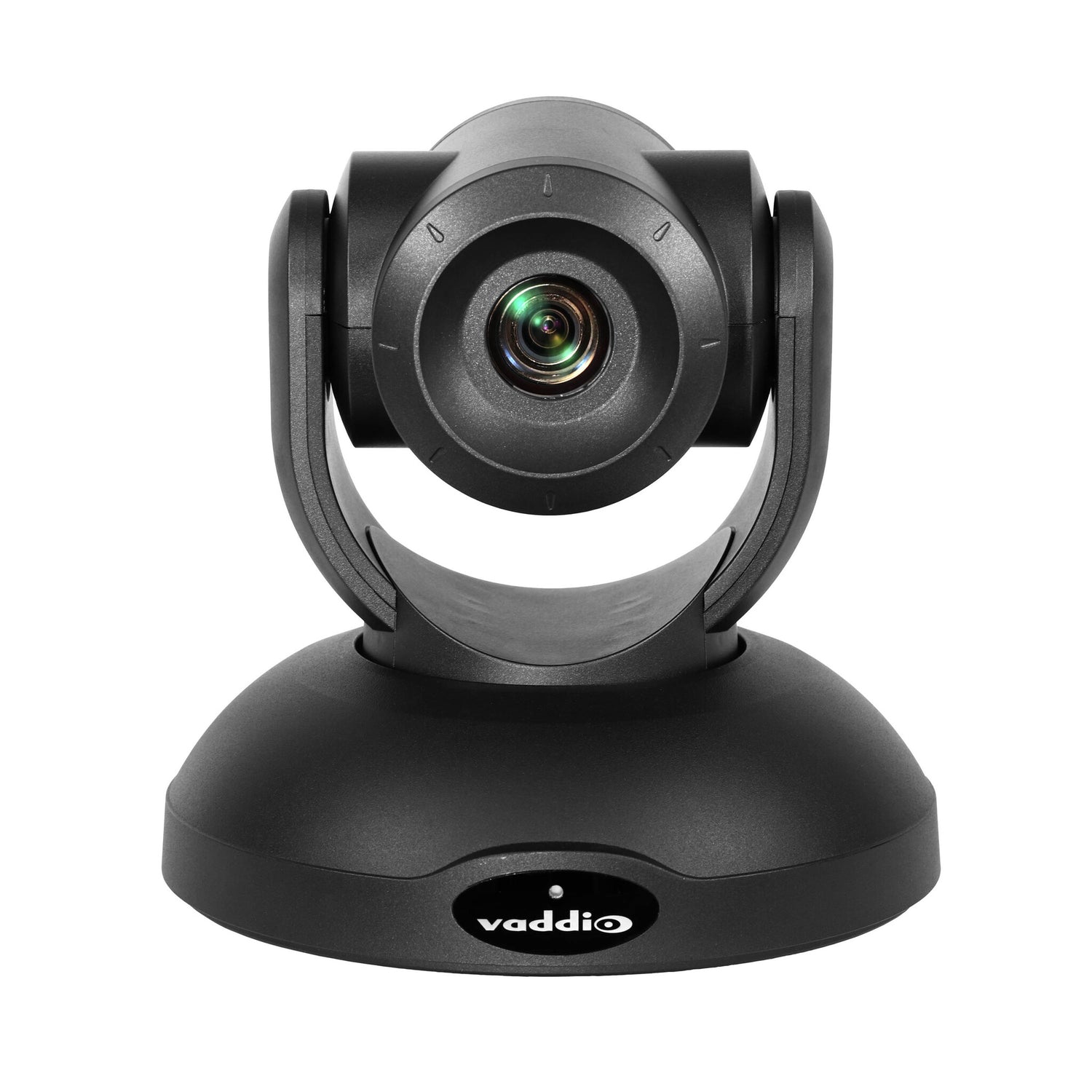

Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces this powerful UHD camera is perfect for higher education classrooms, corporate broadcasting and houses of worship.

Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.

With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.

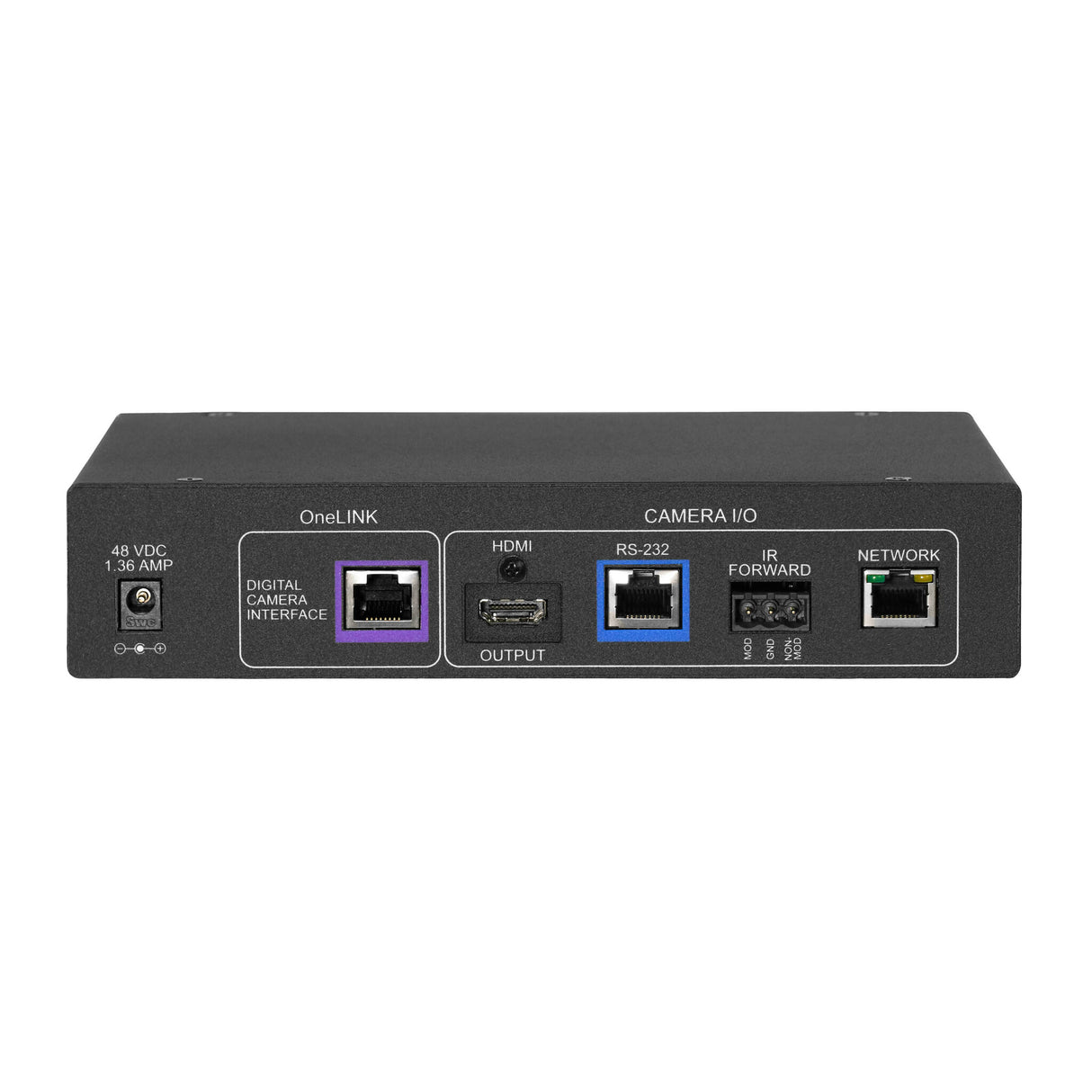

The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.

This Package Includes:
RoboSHOT 20 UHD PTZ camera (in silver/black, black or white)

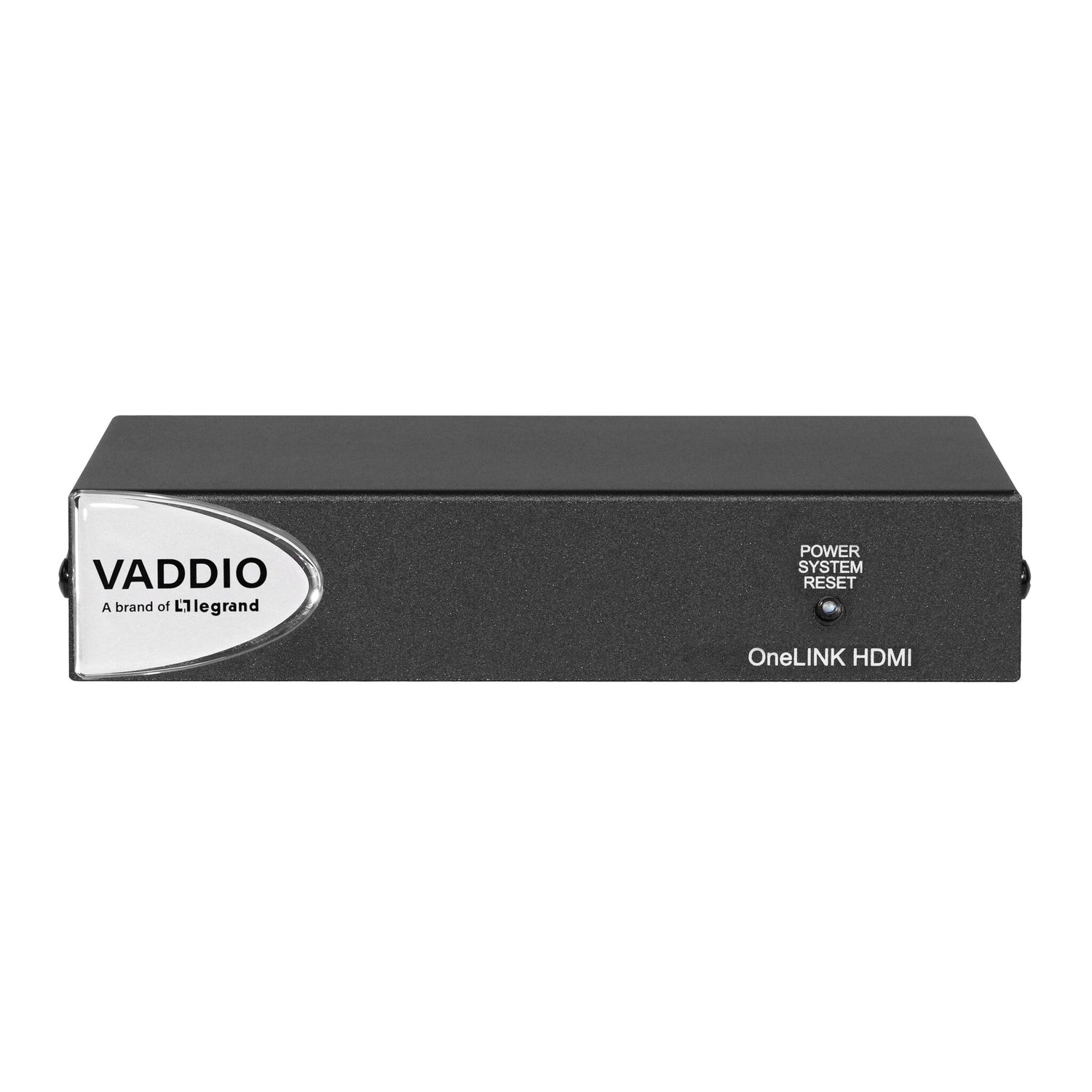

OneLINK HDMI Interface
12V power supply with AC cord set(s)
48V power supply with AC cord set(s)

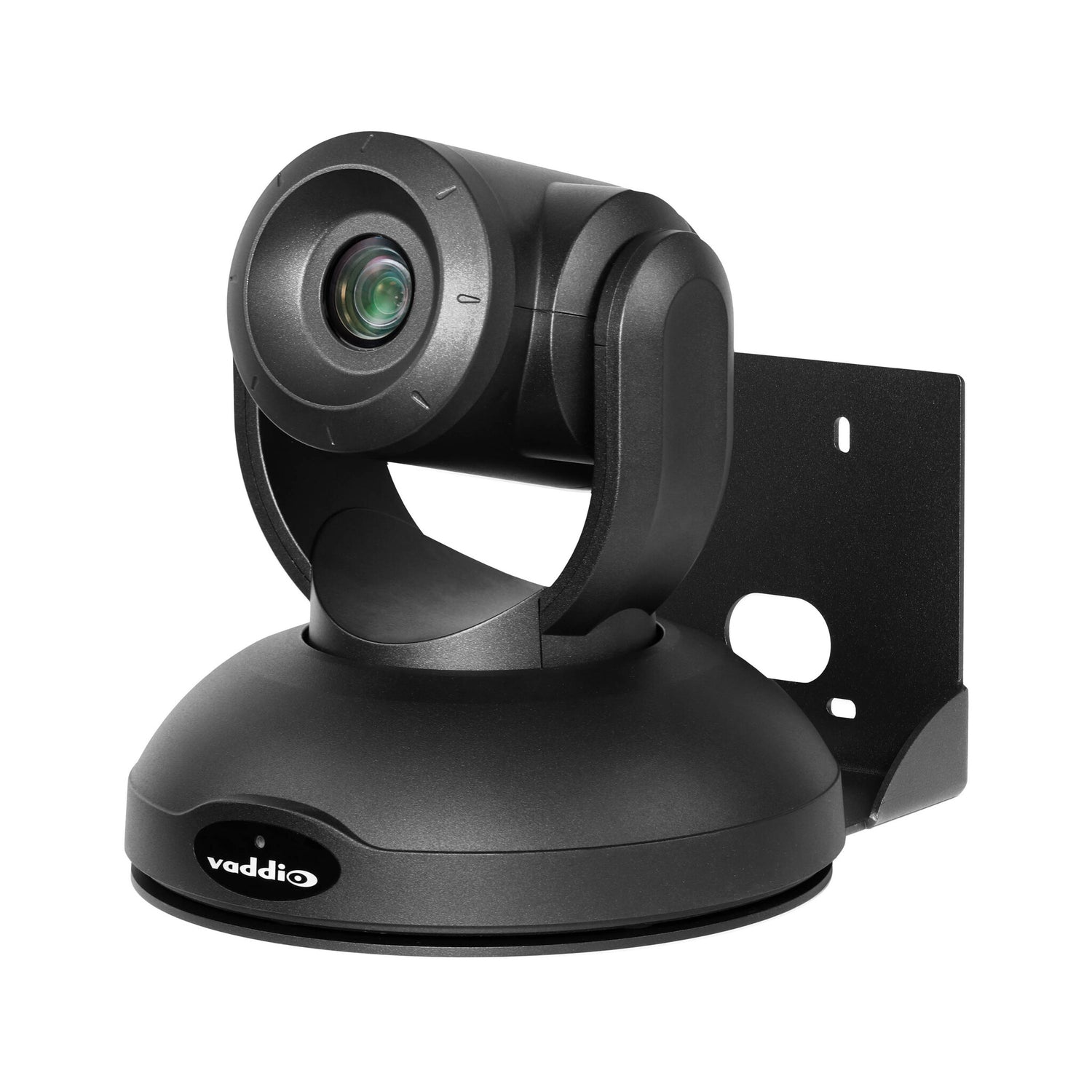

Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
Vaddio IR Remote Commander
EZCamera RS-232 Control Adapter
