WIREMOLD RFB6E-OG cable tray accessory

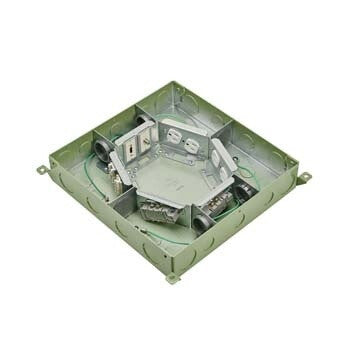

- Six-compartment box: To accommodate power, communication, or A/V
- Pass-around tunneling: Flexible design of RFBE Series floor boxes allows adjacent compartments to be wired together

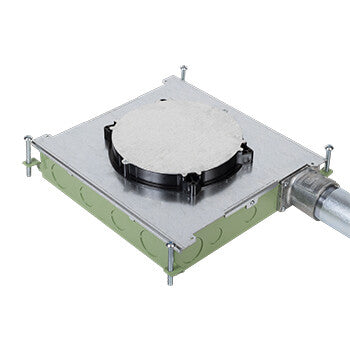

- Accepts 2'' trade size conduit hub (2HUB): Allows a 2'' trade size conduit to attach to the side of box while minimizing concrete pour depth
- Accepts round Evolution series poke-thru covers: Covers come in surface and flush styles, available in brushed aluminum, satin brass plated, satin nickel plated, and six powder-coated finishes to blend in with any space
- Suitable for slab-on-grade ground level floors: on-grade version fits in concrete pours of greater than 4-1/16''
- Lightweight ““slab-on-grade”” version: Special fusion-bonded epoxy corrosion resistant paint finish allows for slab-on-grade use without the weight of cast iron material
- Easy installation in many floor surface types: Carpet, Tile, Bare concrete and Terrazzo floors
Manufacturer PDFs
WIREMOLD RFB6E-OG cable tray accessory

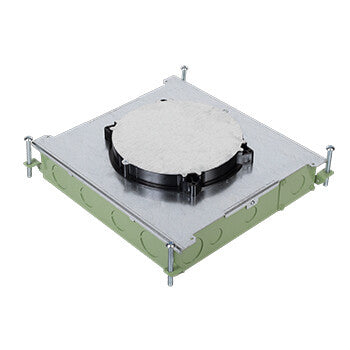

$461Resource RFB®E Series Six Gang On-Grade Floor Box is a versatile activation solution that provides power and/or communication services to open space areas or directly to the workstation. For use in either on-grade or above grade concrete floors, it is fully adjustable with a tunnel compartment. Supplied with two (2) duplex mounting plates, two (2) communication mounting plates (RFB62A), and (2) blank mounting plates. Other device plates sold separately. RFB®E Series Floor Boxes are now available with the new Evolution™ Activation Covers. This new cover series incorporates TopGuard protection to prevent water, dirt, and debris from entering the power and communication devices. The Evolution™ Activation Covers are UL Listed to U.S. and Canadian safety standards for tile, terrazzo, carpet, and wood floors. The RFB®E Series has many unique applications, some of which include schools, financial institutions, commercial office buildings, and residences.
