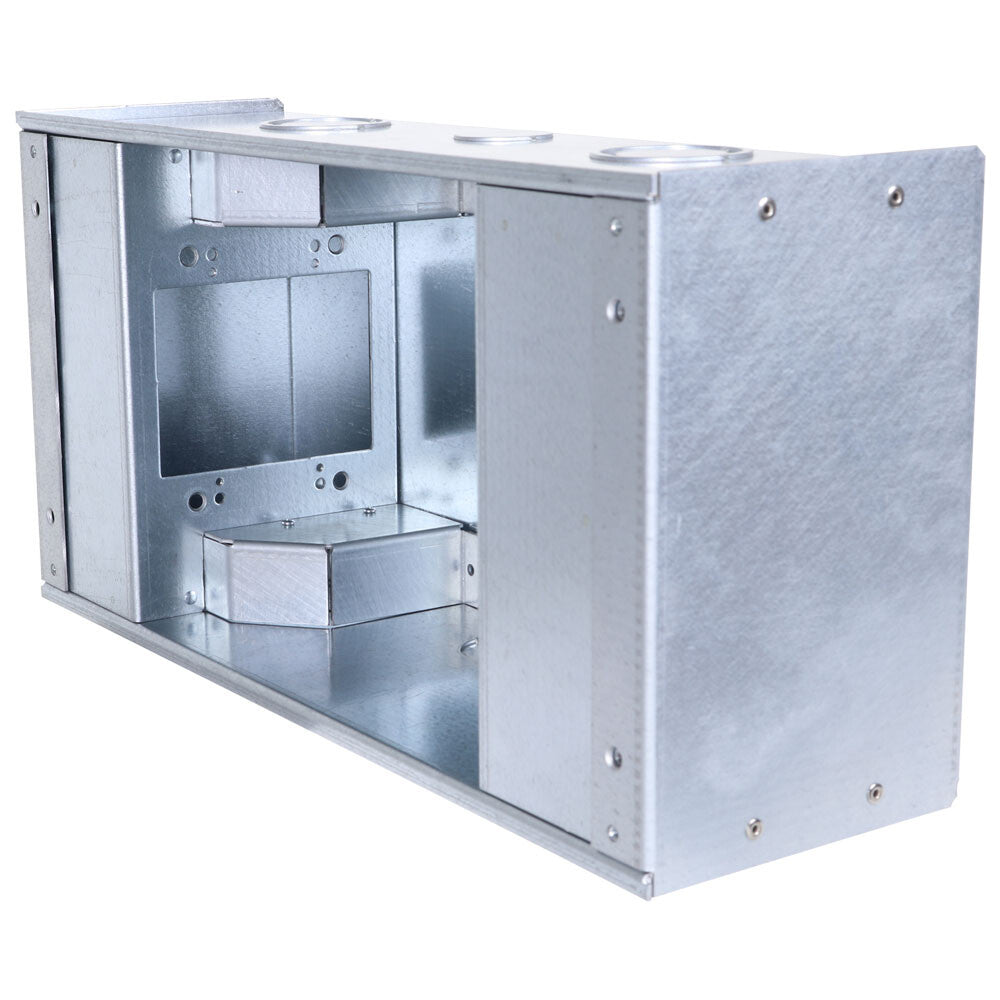

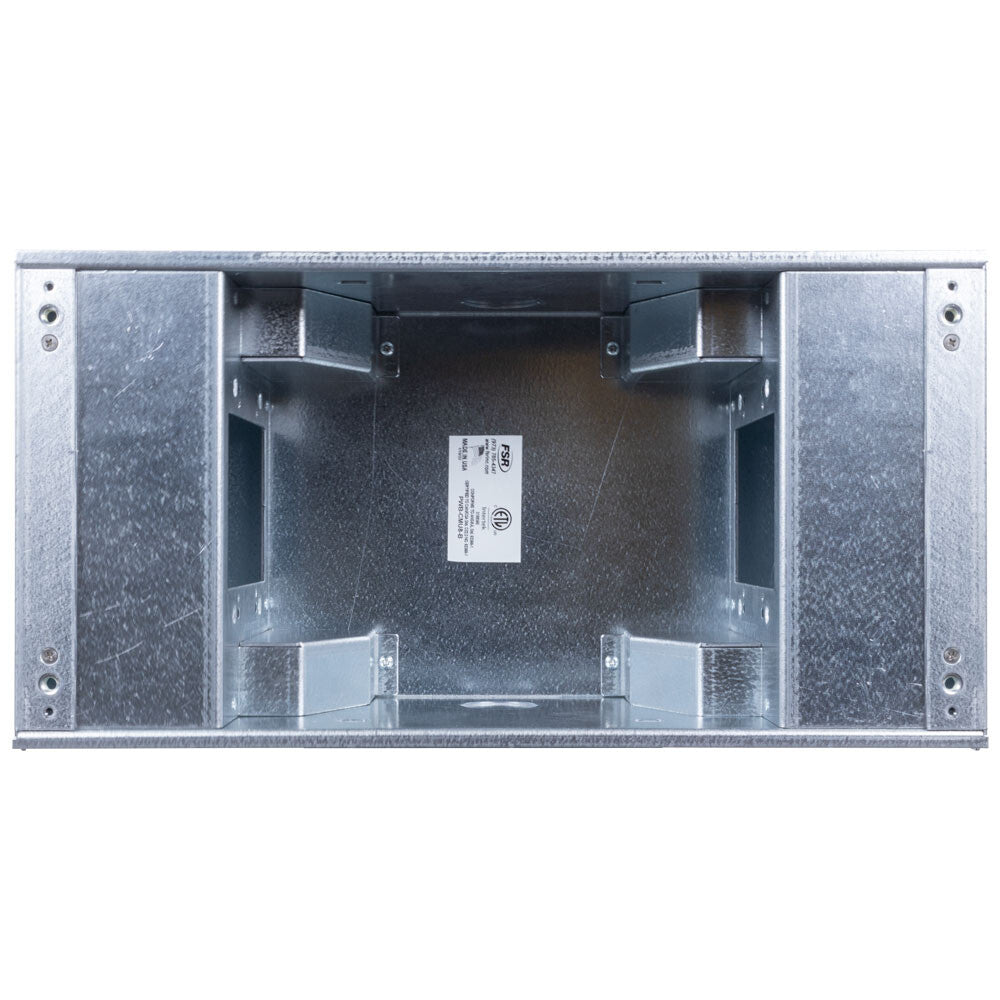

FSR PWB-CMU8-B electrical junction box Metal
- Engineered for installation in 8” block walls
- Creates an attractive surface with no visible jagged block edges once painted
- Available knockouts are 1”, 1.25”, and 1.5” centered on the opening of the most common two-hole CMU blocks
- Two oversized 2-gang 3.25" depth compartments (convertible to a single gang)
- Removable compartments for installing active brick receivers and accommodate standard electrical plates
- Cover is painted white and is suitable for over painting
- Cover features beveled edge and cable lash bar to support the exiting cables
FSR PWB-CMU8-B electrical junction box Metal
$570The CMU8 has an available 1”, 1.25”, and 1.5” knockouts centered on the opening of the most common two-hole CMU blocks. This wall box ships with a construction cover for the rough out construction phase. Inside the box, its two 2-gang compartments face the middle. These compartments are convertible to a single gang with the provided block-off plates; they are also removable for installing active brick receivers and accommodate standard electrical plates. The gang compartments are oversized to allow for extra service loops and cable storage and with a depth of 3.25” to allow for the largest of the active electronic wall-plates.
The split metal finish cover is painted white and is suitable for over painting as the rest of the room is sprayed. The cover features a beveled edge and cable lash bar to support the exiting cables so the connectors do not dislodge from the wall plates or ware due to movement.
