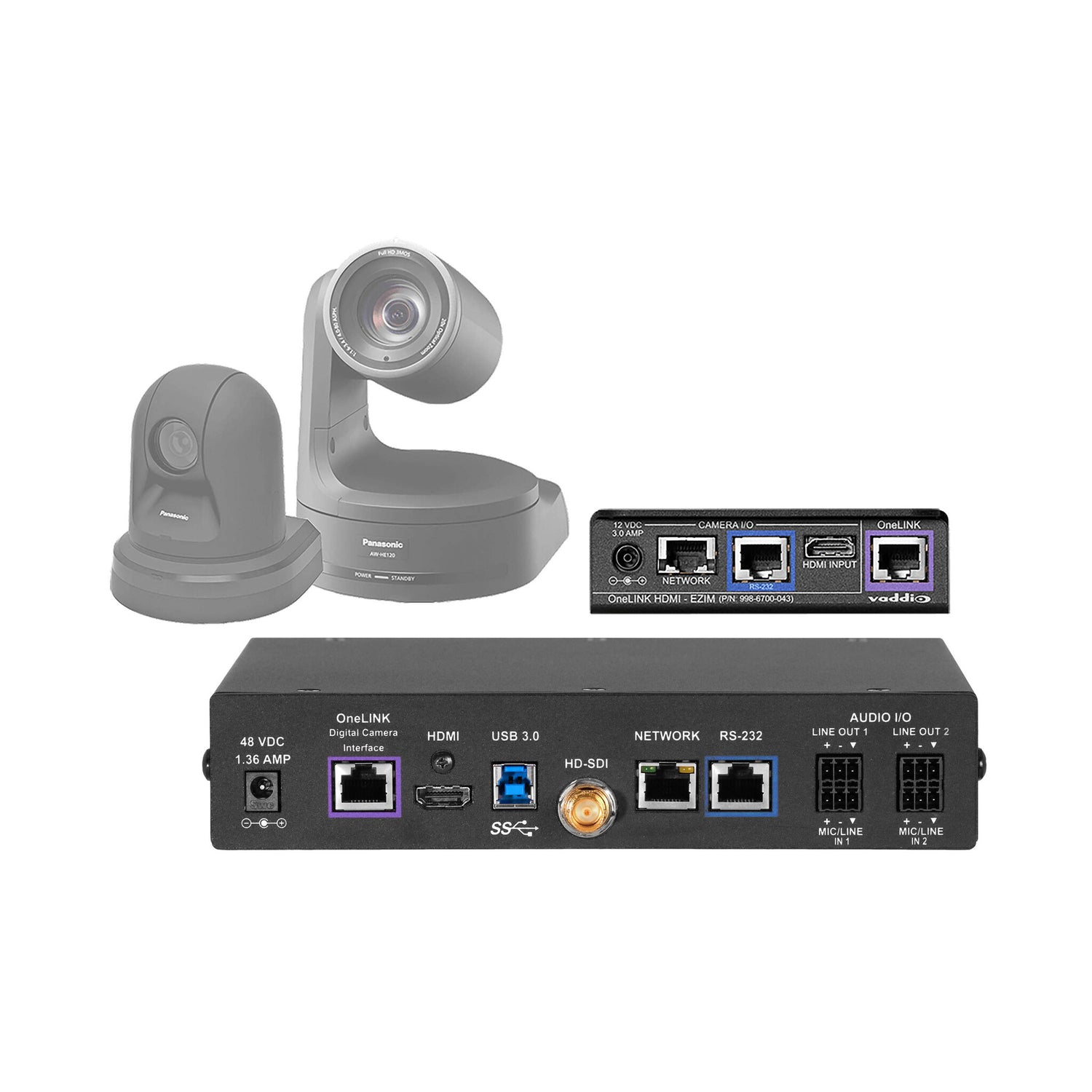

Vaddio OneLINK Bridge Kit for Sony and Panasonic HE-Series Cameras

Brings your non-USB camera and non-USB audio components into your USB conferencing environment for traditional videoconferencing quality, without the traditional price tag. Extends power, video and control to your compatible Sony or Panasonic camera over a single category cable.

Packaged for Sony SRG and Panasonic HE series cameras.

Key Features:
Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
Bridges audio and video for easy soft-client conferencing
Configurable audio matrix with AEC

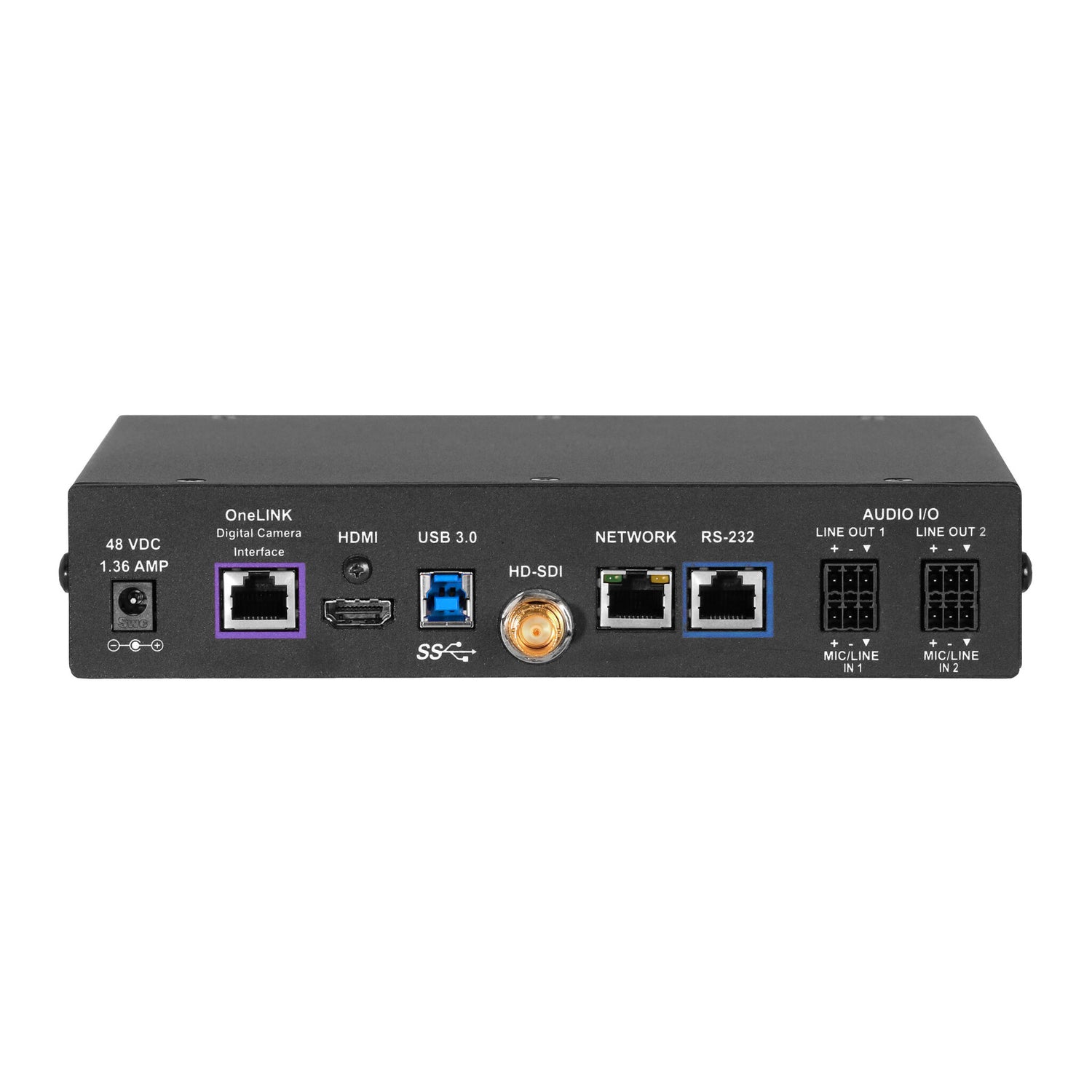

Simultaneous HDMI, USB 3.0, and HD-SDI outputs
Up to 1080p/60 resolution available over uncompressed USB


Vaddio Deployment ToolEasily deploy and manage hundreds of conference rooms with the free desktop application.



For Sony SRG series and Panasonic HE series cameras.

More flexibility for room design and installation

Makes your camera a conferencing camera: OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. You get traditional videoconferencing audio quality with soft-client connectivity – and without the traditional videoconferencing price tag.

Sounds complicated - but it's not. Tailored for Sony and Panasonic HE series cameras, this OneLINK Bridge kit simplifies installation by extending power, video and control to your camera over a single Cat-5e cable up to 328 ft (100m).

Benefits:
More flexibility in camera placement
HDBaseT interface extends power, video and control up to 328 ft (100 m)
Delivers an uncompressed USB 3.0 media stream for high-definition cloud conferencing
Connects to any cloud conferencing application, such as Google Hangouts, Skype for Business, WebEx, Zoom and others
Plug and play usability for BYOD conferencing environments
Intuitive browser-based user interface for configuration and system administration


This Package Includes:

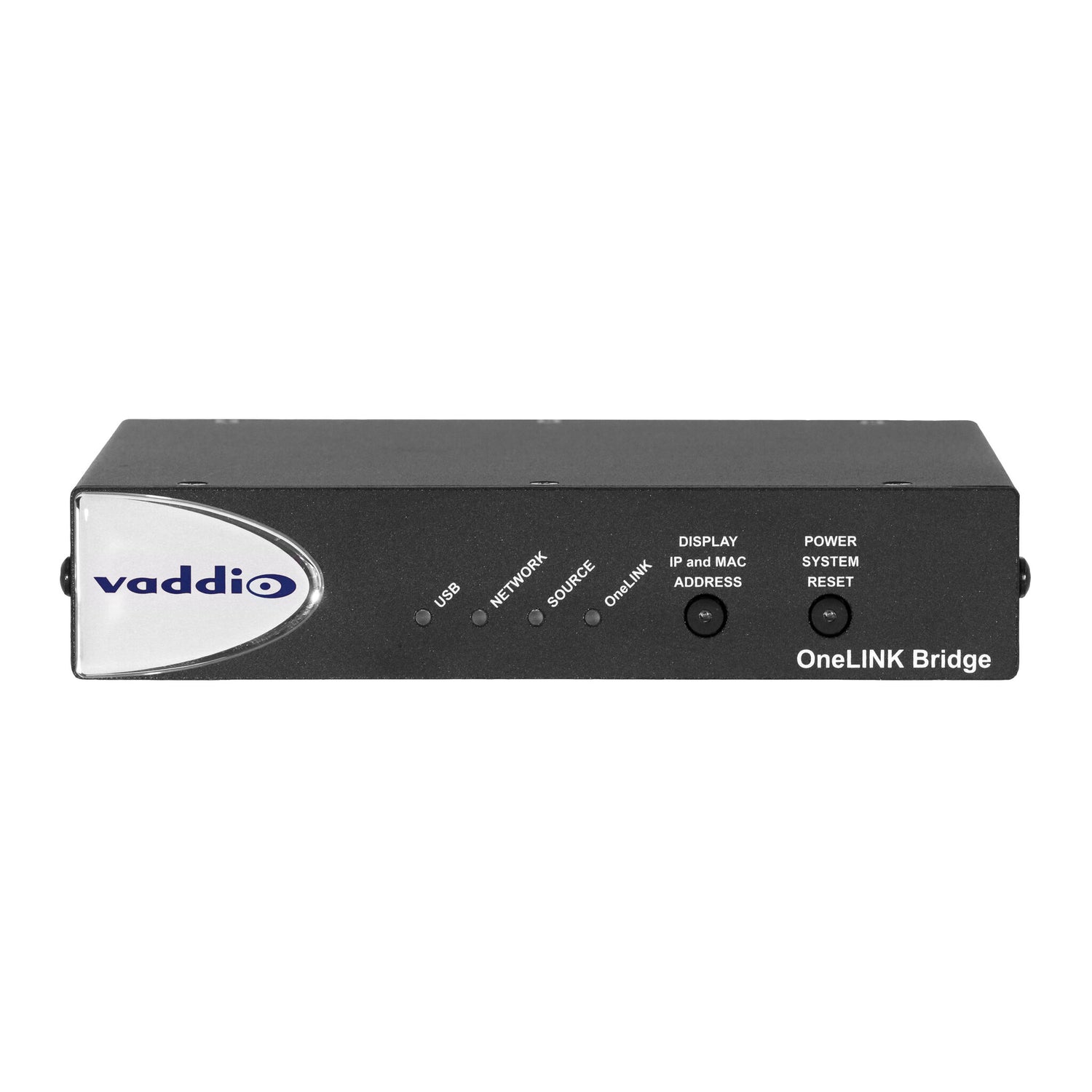

OneLINK Bridge Interface

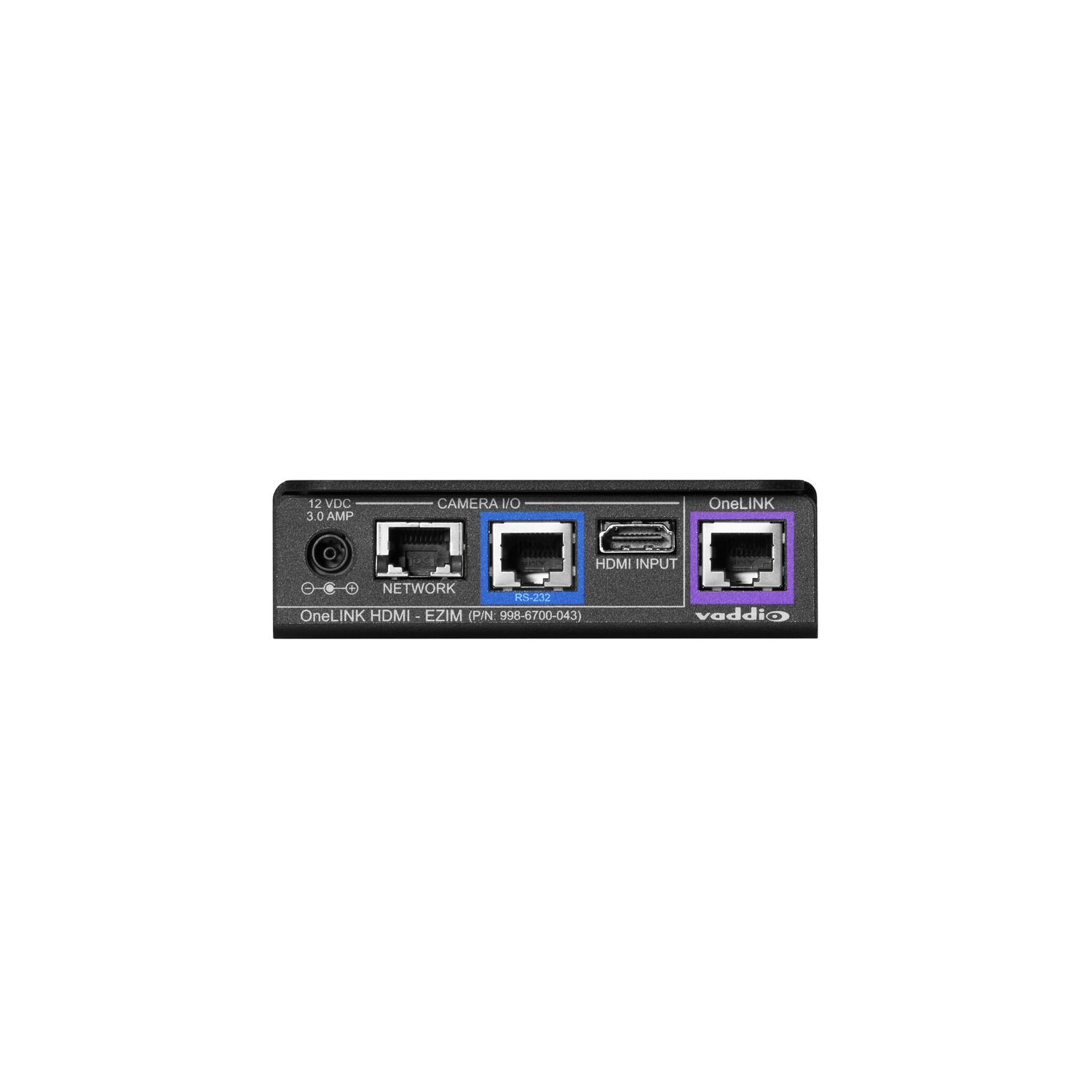

OneLINK HDMI EZIM with mounting screws

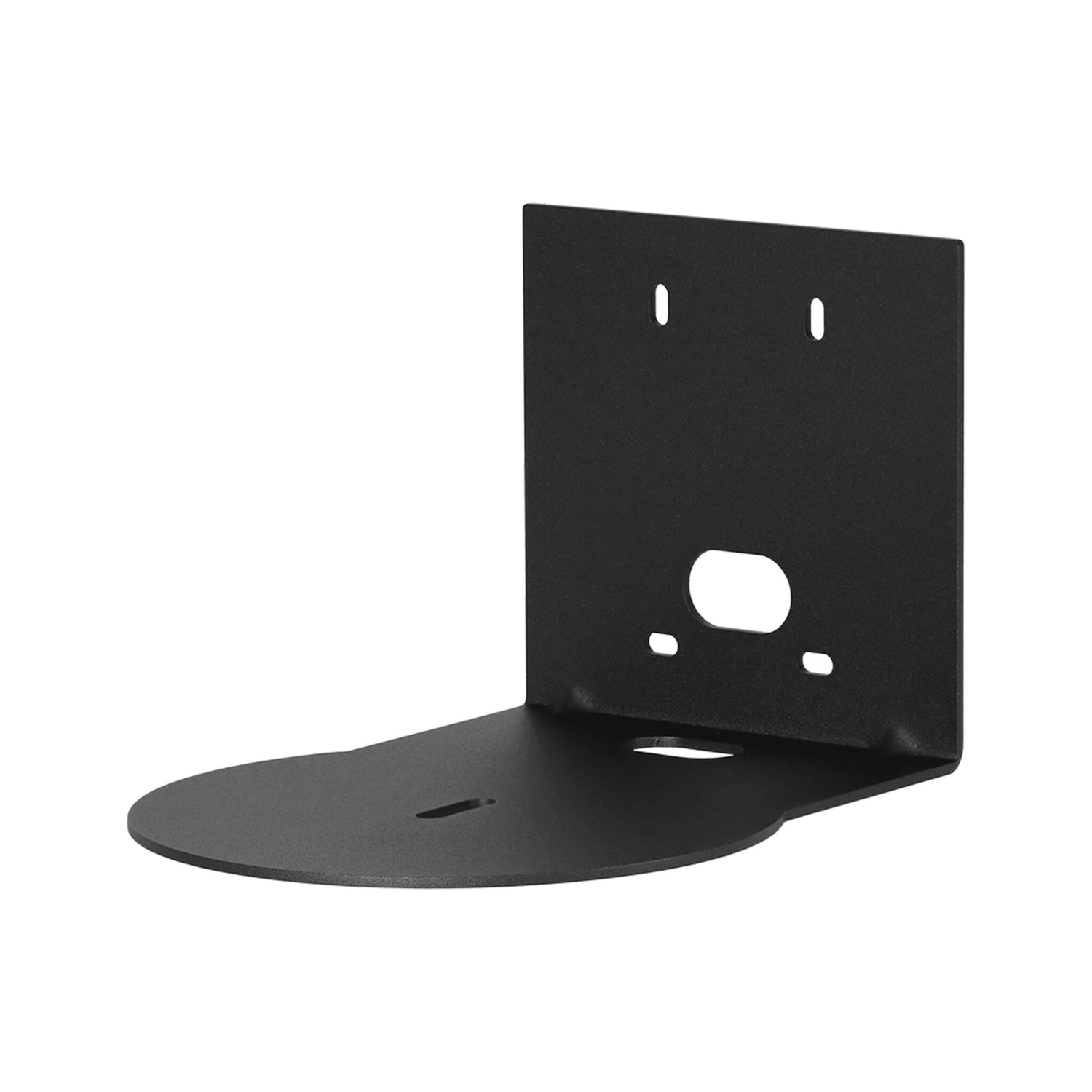

Thin Profile Wall Mount (black) with mounting hardware**
Quick-start card
48V power supply with AC cord set(s)
4 qty 3-position phoenix-style connectors
1' (0.3m) cat-5 cable, black
1' (0.3m) HDMI cable
1' (0.3m) RJ-45 to 8-pin mini-din cable
1' (0.3m) EIAJ-04 to EIAJ-04 power cable for certain camera models
1' (0.3m) EIAJ-04 to 3mmx6.3mm power cable for certain camera models
6' (1.8m) USB 3.0 cable, type A to B


** If mounting the Panasonic AW-HE120 or AW-HE130 cameras the Thin Profile Wall Mount Bracket for Panasonic AW-HE130 should be used instead
