FSR  |  SKU: FSR-18509

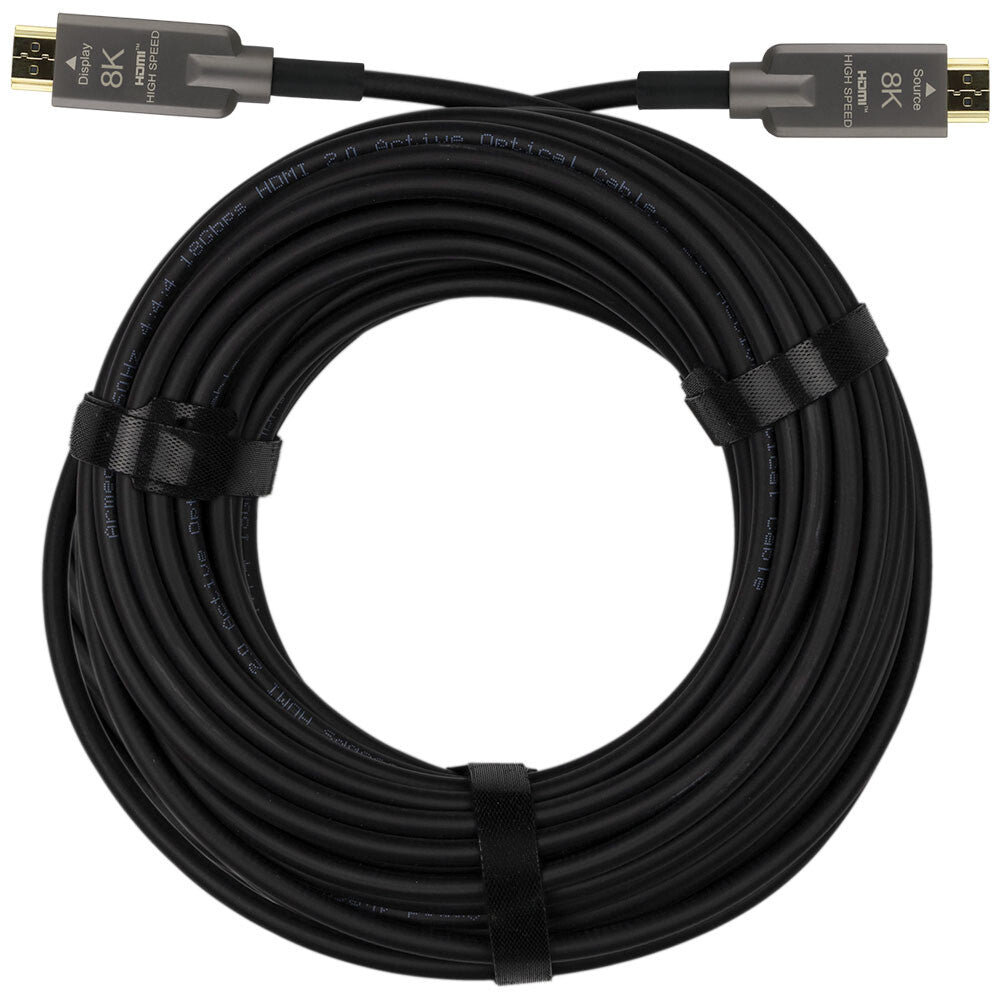

FSR DR-H2.1-SR-30M HDMI cable HDMI Type A (Standard) Black

  • Video resolution up to 8K 60Hz 4:4:4 uncompressed HDMI video and supports all HDCP versions
  • Supports a bandwidth of 48 Gbps
  • Discreet stainless steel reinforced inner jacket
  • Enhanced Pull Strength of 100 lbs
  • Suitable for Rough Service. Short term load limit of 2000N/100mm (450lbs./4”)
  • Supports DDC for HDCP, EDID, PCM, Dolby, DTSHD and True HD audio
  • Overcomes distance limitations of conventional HDMI cables
30m, 7680x4320px, 60 Hz, 48 Gbit/s

8K CoilGuard Digital Ribbon Cables

Our 8K Next Generation Digital Ribbon Cables with CoilGuard utilize a proprietary technology to allow high-speed and high-definition HDMI signal transmission over distances of up to 100 ft. The CoilGuard is suitable for rough service and a short-term load limit of 2000N/100mm (450lbs./4"). This durable cable is fitted with a stainless steel reinforced inner jacket and a discreet outer black jacket that allows the cable to withstand rough service and blend in after installation. The hybrid fiber/copper cables deliver a speed of 48 Gbps video bandwidth when directly connected or 18 Gbps when 6' copper cables are added to ends. They can easily handle up to 8k 60Hz 4:4:4 HDR uncompressed HDMI video and are eARC compatible. The advanced technology inside the cables use four glass fibers, seven copper wires, and supply the necessary power to the embedded circuitry at both ends of the cable. They also meet the HDMI and HDCP testing standards. The connector shells are labeled “source” and “display” to aid in proper connections. The cables come pre-terminated in convenient lengths; see chart below.

FSR

FSR DR-H2.1-SR-30M HDMI cable HDMI Type A (Standard) Black

$570
30m, 7680x4320px, 60 Hz, 48 Gbit/s

8K CoilGuard Digital Ribbon Cables

Our 8K Next Generation Digital Ribbon Cables with CoilGuard utilize a proprietary technology to allow high-speed and high-definition HDMI signal transmission over distances of up to 100 ft. The CoilGuard is suitable for rough service and a short-term load limit of 2000N/100mm (450lbs./4"). This durable cable is fitted with a stainless steel reinforced inner jacket and a discreet outer black jacket that allows the cable to withstand rough service and blend in after installation. The hybrid fiber/copper cables deliver a speed of 48 Gbps video bandwidth when directly connected or 18 Gbps when 6' copper cables are added to ends. They can easily handle up to 8k 60Hz 4:4:4 HDR uncompressed HDMI video and are eARC compatible. The advanced technology inside the cables use four glass fibers, seven copper wires, and supply the necessary power to the embedded circuitry at both ends of the cable. They also meet the HDMI and HDCP testing standards. The connector shells are labeled “source” and “display” to aid in proper connections. The cables come pre-terminated in convenient lengths; see chart below.

View product
