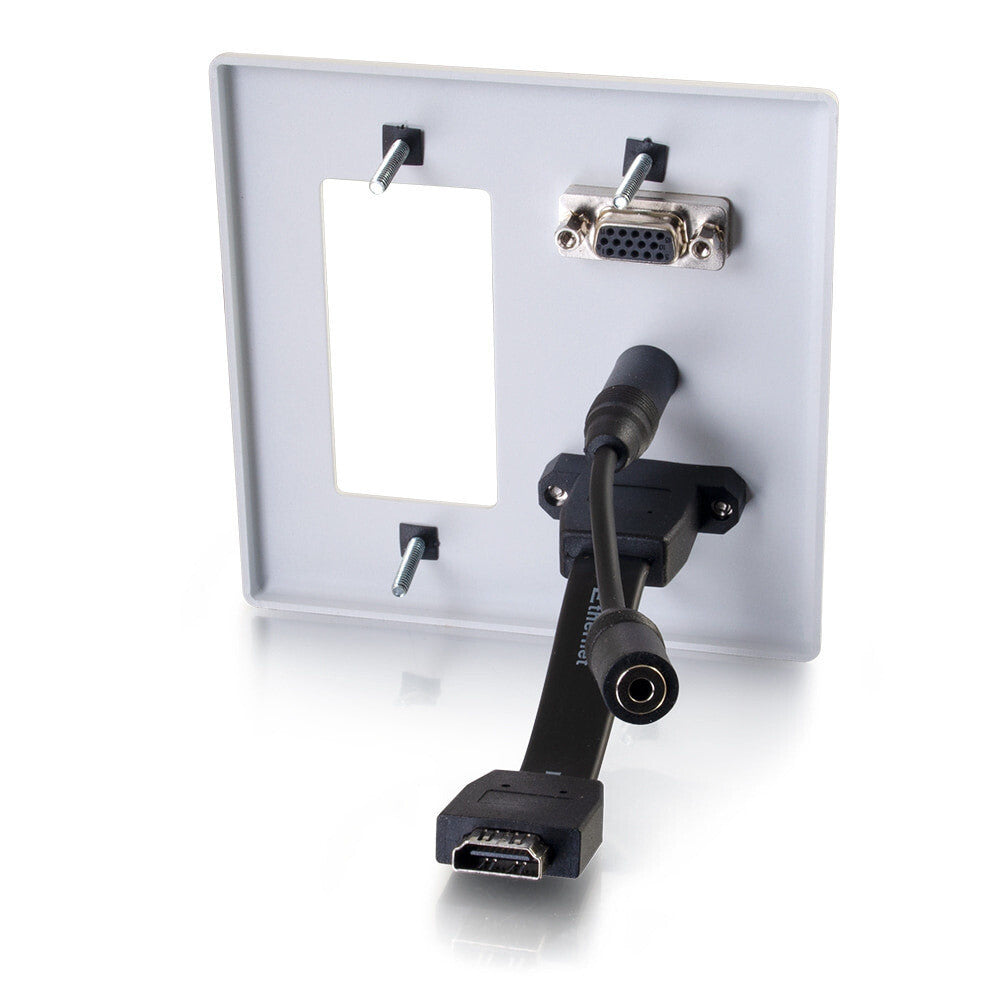

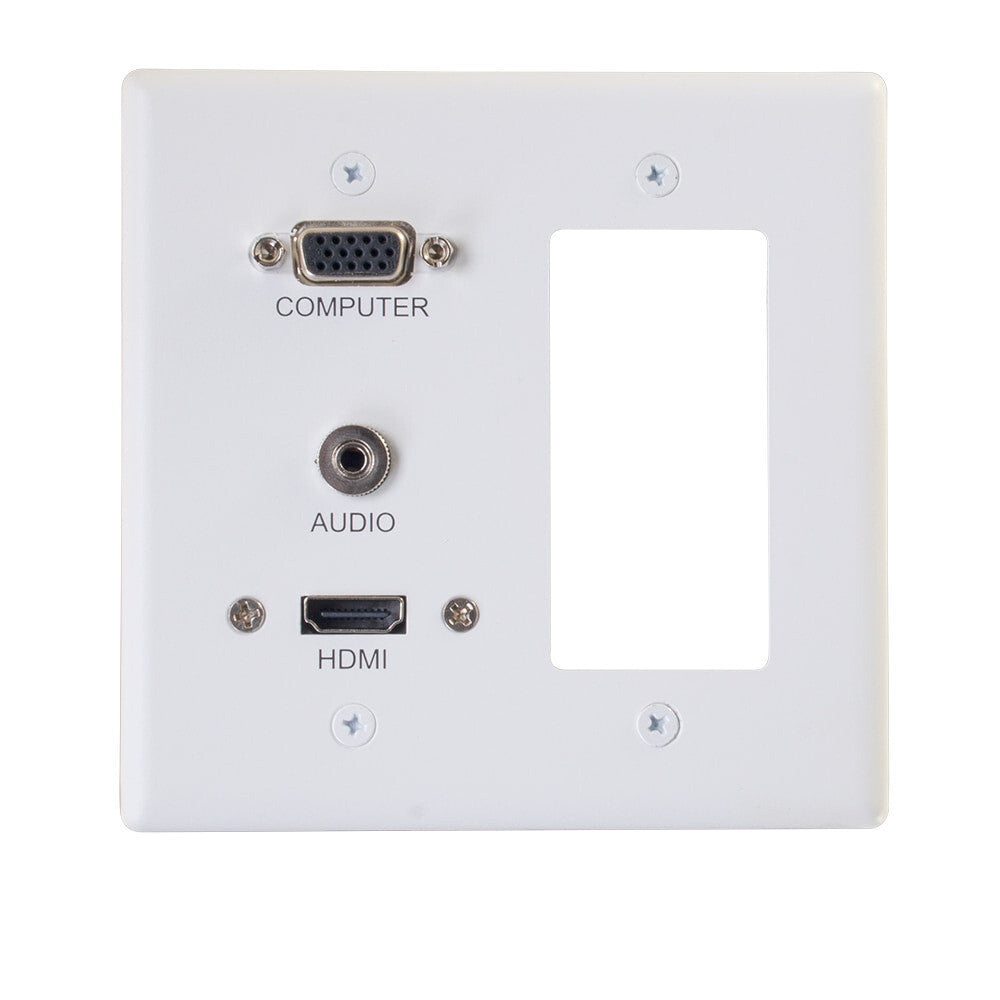

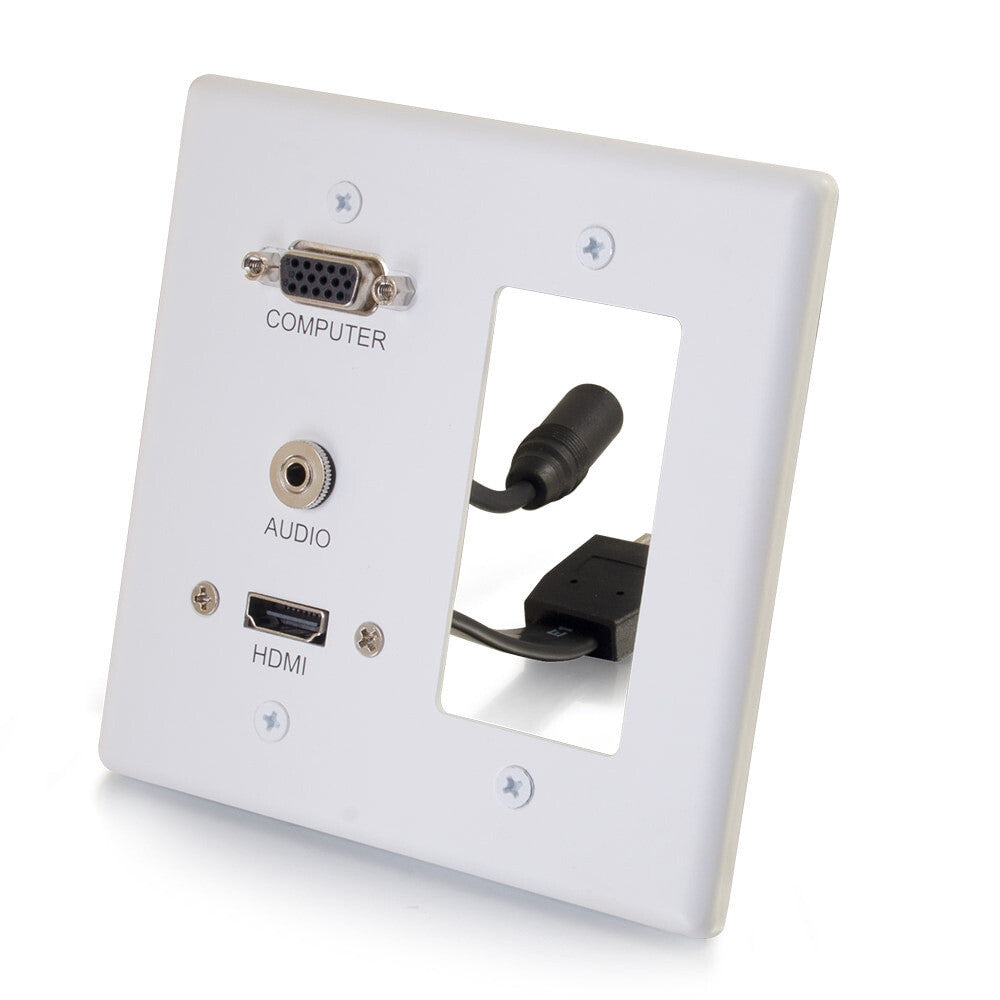

C2G HDMI®, VGA and 3.5mm Audio Pass Through Double Gang Wall Plate ...
$69The HDMI, VGA and 3.5mm Audio Pass Through Double Gang Wall Plate is perfect for the transition to in-wall cabling. This solution offers a clean, professional look and is ideal for classrooms, conference rooms and houses of worship.ConvenienceThe HDMI and 3.5mm Audio pass through ports include thin, flexible pigtails that accommodate the tight bend radius required for installations within a standard junction box. In addition, the decorative cutout provides a space for additional components like our USB Superboosters that fit a standard opening.DurabilityConstructed of high quality aluminum, this wall plate is designed for durability and a long life in commercial environments where constant wear and tear causes damage.Features and Benefits
Supports HDMI audio/video signals, VGA video and Stereo Audio

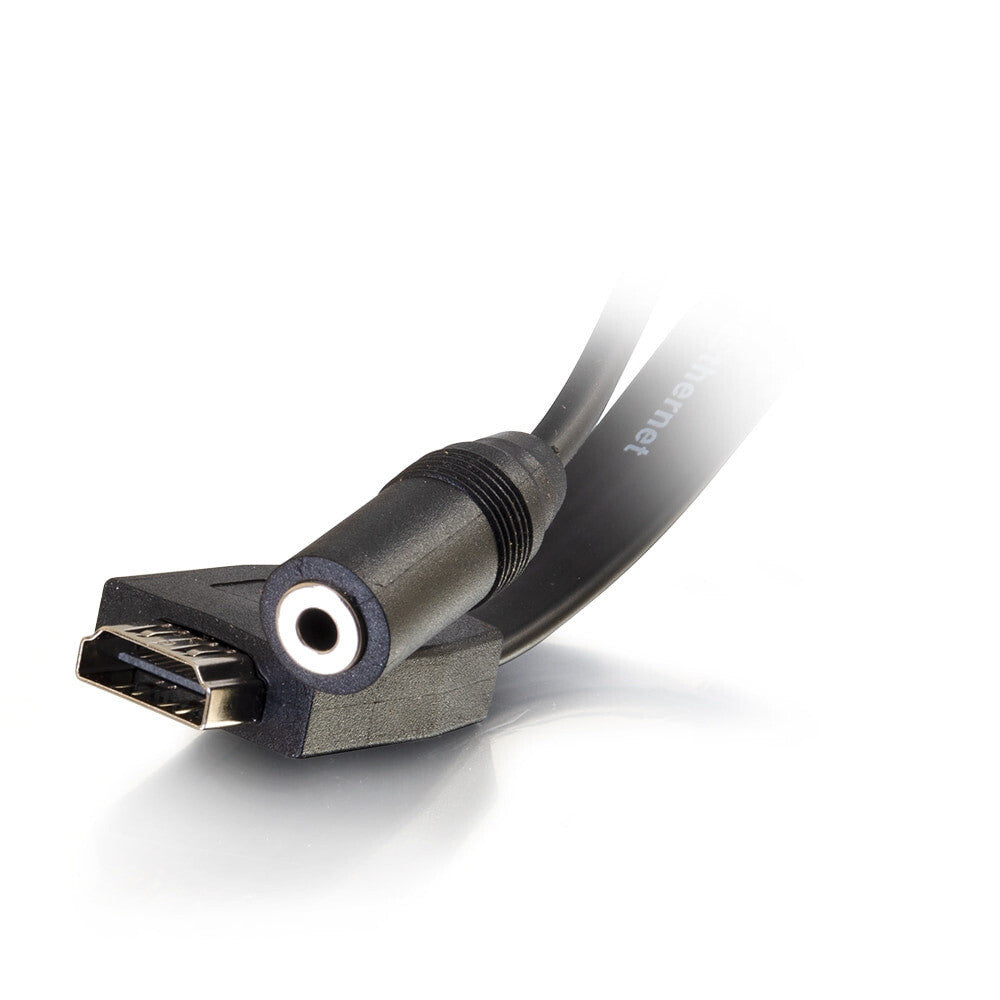

Flexible HDMI and 3.5mm pigtails for easy installation in a wall box
Compatible with a standard double gang wall box
Compatible with decorative inserts
Voltage Rating: 30V
Nominal Capacitance: 58PF/M
Conductor Resistance: @ 20°C max, 30AWG: 376.96{OHM]/KM
Insulation Resistance: 10M
/km @ 20°C DC 500V
Attenuation:
@ 0.30~825MHz 5dB/3.0M
@ 825~2475MHz 12dB/3.0M
@ 2475~4125MHz 20dB/3.0M
@ 4125~5100MHz 25dB/3.0MPhysical Specifications:
Jacket: Black PVC
Jacket Thickness: 0.51mm
Minimum Bend radius: 30mm
Approvals: CE and conforms to 2011/65/EU ROHS 2Conductor (2 Conductors, 5 Pair):
Conductor: 30AWG(7/0.10TC)X5PR
Insulation: FM-PE, ID: 0.75±0.05mm
Color: Brown/White, Red/White,
Orange/White, Green/White, Blue/White
Drain: 30AWG(7/0.10TC)X5
Shield: AL Foil WrapX5
Braid: (16/5/0.08TC)X5Conductor (4 Conductors):
Conductor: 30AWG(7/0.10TC)X4C
Insulation: PP, ID: 0.55±0.05mm
Color: Red/Yellow/Orange/White
Drain: 30AWG(7/0.10TC)
Shield: AL Foil WrapConductor (2 Conductors):
Conductor: 26AWG(7/0.16TA)X2C
Insulation: SR-PVC ID: 1.0±0.05
Color: Black/White
Shield: AL Foil Wrap
Drain: 24AWG(7/0.20TA)Wall Plate
Material: Brushed Aluminum 5052
