C2G 4-Port USB 3.2 Over Cat6a Extender

The 4-Port USB 3.2 Over Cat6a Extender was designed to extend USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet over a single Cat6a cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, video matrix systems, remote storage, and/or any other USB 3, 2 and 1 device.ConvenienceNo software drivers required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.PerformanceThe 4-Port USB 3.2 Over Cat6a Extender provides the ability to connect USB 3.2 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection. The extender also includes an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity.Features and Benefits
USB 3.2 Gen 1 data rate up to 5 Gbps
Integrated four port USB 3.2 hub
Supports all USB 3.2, 2.0, 1.1 devices simultaneously at full bandwidth
Up to 1.2A (6W) per USB port
100/1000 Mbps Ethernet channel
LAN pass-through
Point-to-point connection
Requires a single Cat6a cable
Plug and Play-no driver required
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
Molding Material: White PVC Conforms to RoHS
Product is CE Marked and Conforms to 2011/65/EU RoHS2Speeds
USB 3.2: up to 5 Gbps
USB 2.0: up to 480 Mbps

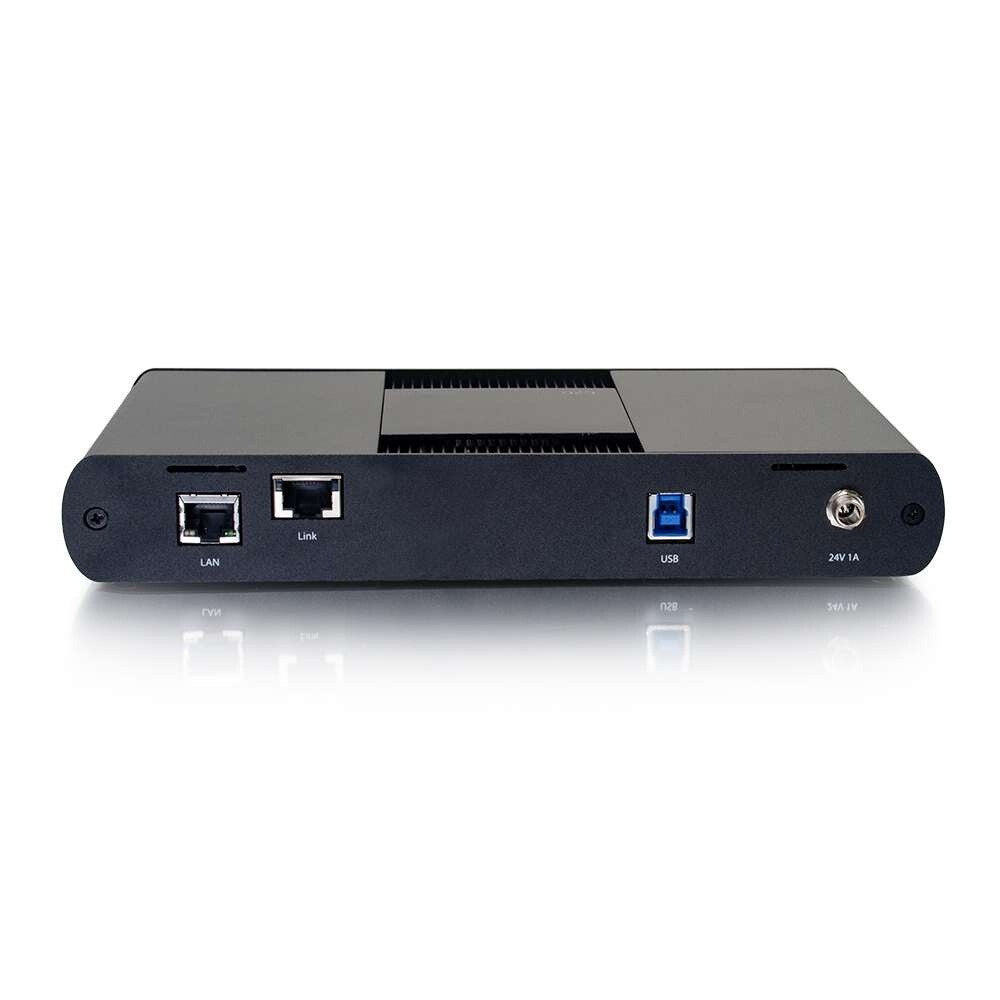

USB 1.1: up to 12 MbpsLEX (Local Extender)
1x USB 3.2 Gen 1 Type B Receptacle
1x RJ45 Ethernet 100/1000 Port
1x RJ45 Ethernet Link Port
24V 1A DC Locking Jack
Enclosure Material: Silver anodized aluminum
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4# x 9.1# x 1.3#)
920g (2.03 lbs.)

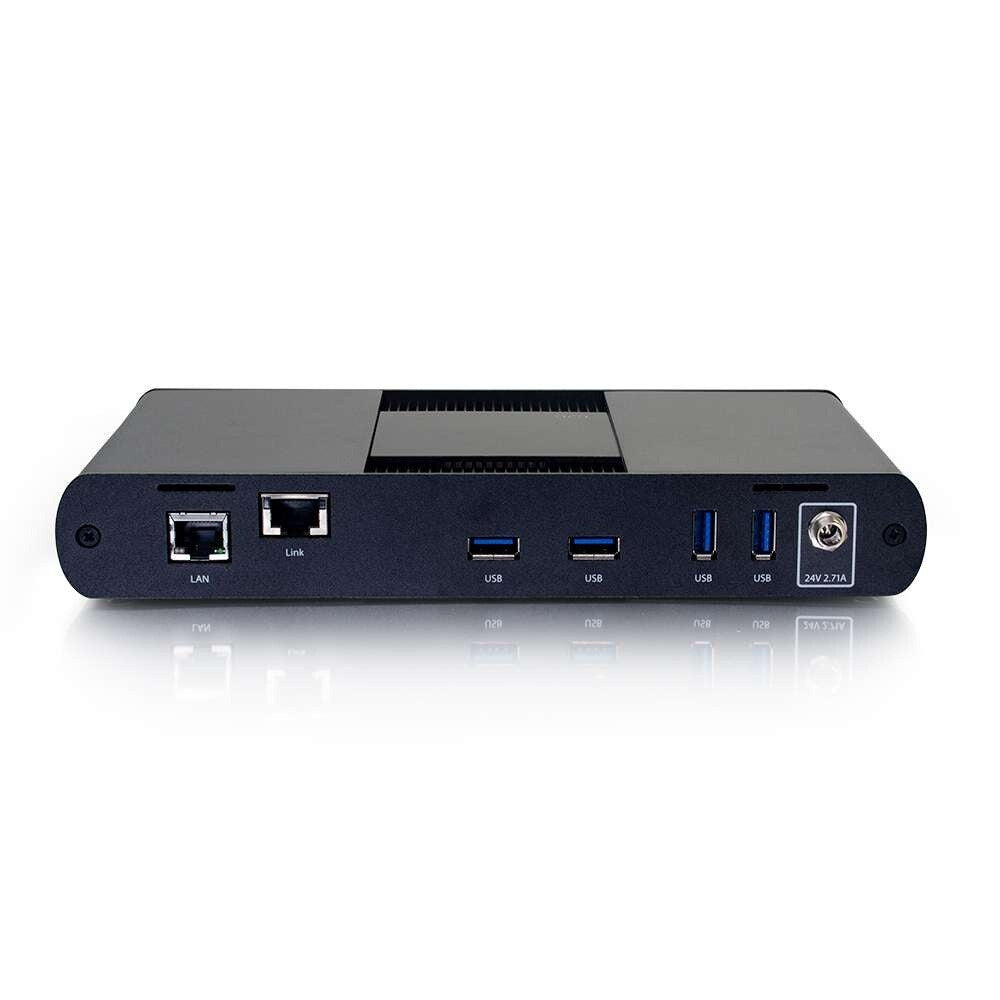

Mounting: 4 surface mounting holes or optional mounting kit availableREX (Remote Extender)
4x USB 3.2 Gen 1 Type A Receptacles
1x RJ45 Ethernet 100/1000 Port
1x RJ45 Ethernet Link Port
24V 2.71A DC Locking Jack
Available Current: up to 1.2A (6W) per USB port
Enclosure Material: Silver anodized aluminum
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4# x 9.1# x 1.3#)
990g (2.18 lbs.)
Mounting: 4 surface mounting holes or optional mounting kit availableCompliance
EMC: FCC (Class B), CE (Class B)
