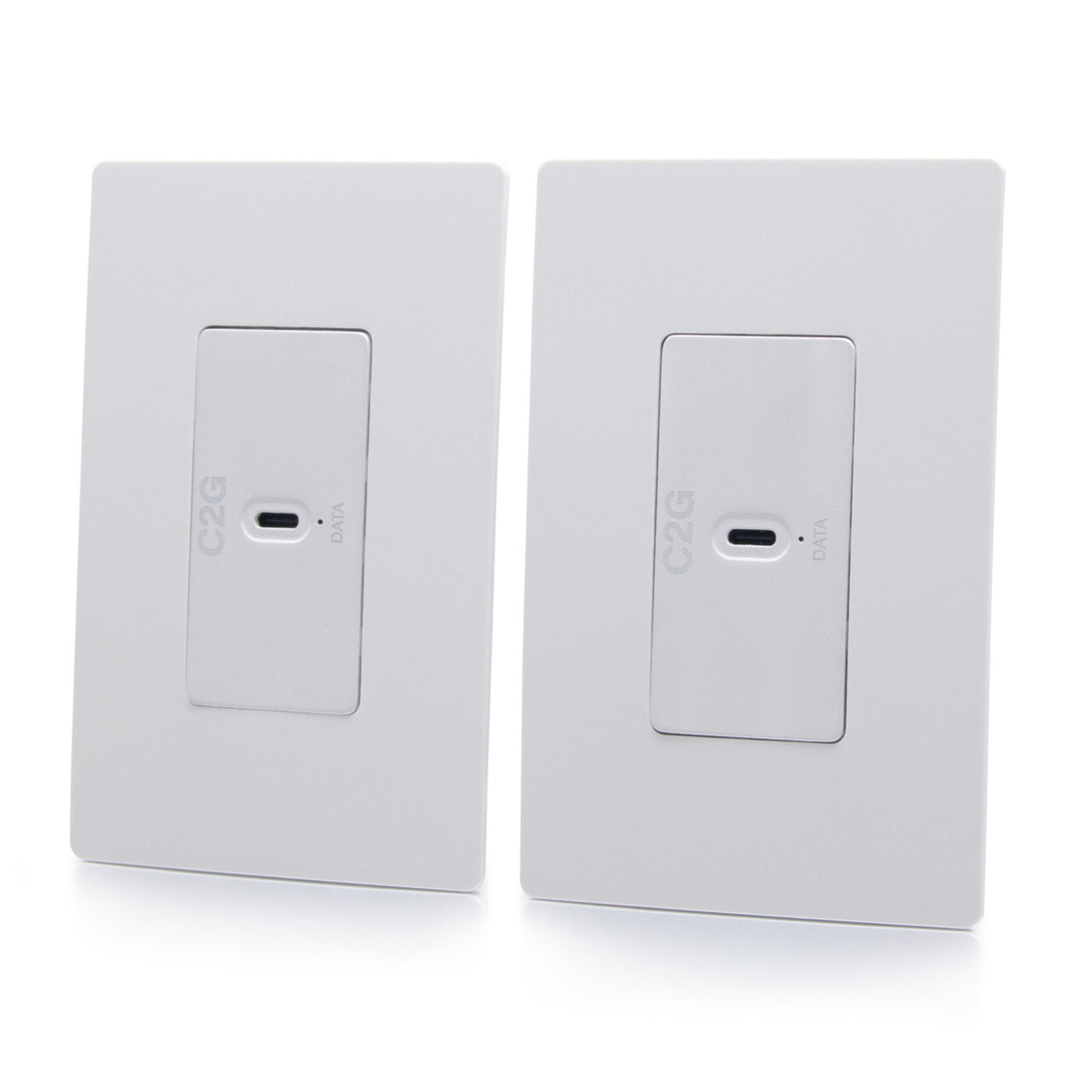

C2G Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)

Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)

---

C2G Superbooster USB Extenders deliver reliable USB signal transmission for USB devices, allowing devices such as cameras, interactive whiteboards and printers to be placed at greater distances from the host computer.

Your USB extender shouldn’t cost more than your camera. C2G’s new USB 3.2 extenders use chipset technology that is more economical than other USB 3.2 extenders currently on the market.

What's more, the C2G Superbooster USB Camera Extender has been tested to be compatible with industry-leading video conferencing cameras. Not only does this testing ensure reliability and deployment confidence for AV integrators, it saves valuable time as well.

C2G’s Superbooster® USB Extender provides reliable USB data extension from a computer to a USB device over a Cat6a F/FTP network cable – making it an ideal solution for conference rooms, command centers, classrooms, auditoriums and medical facilities.

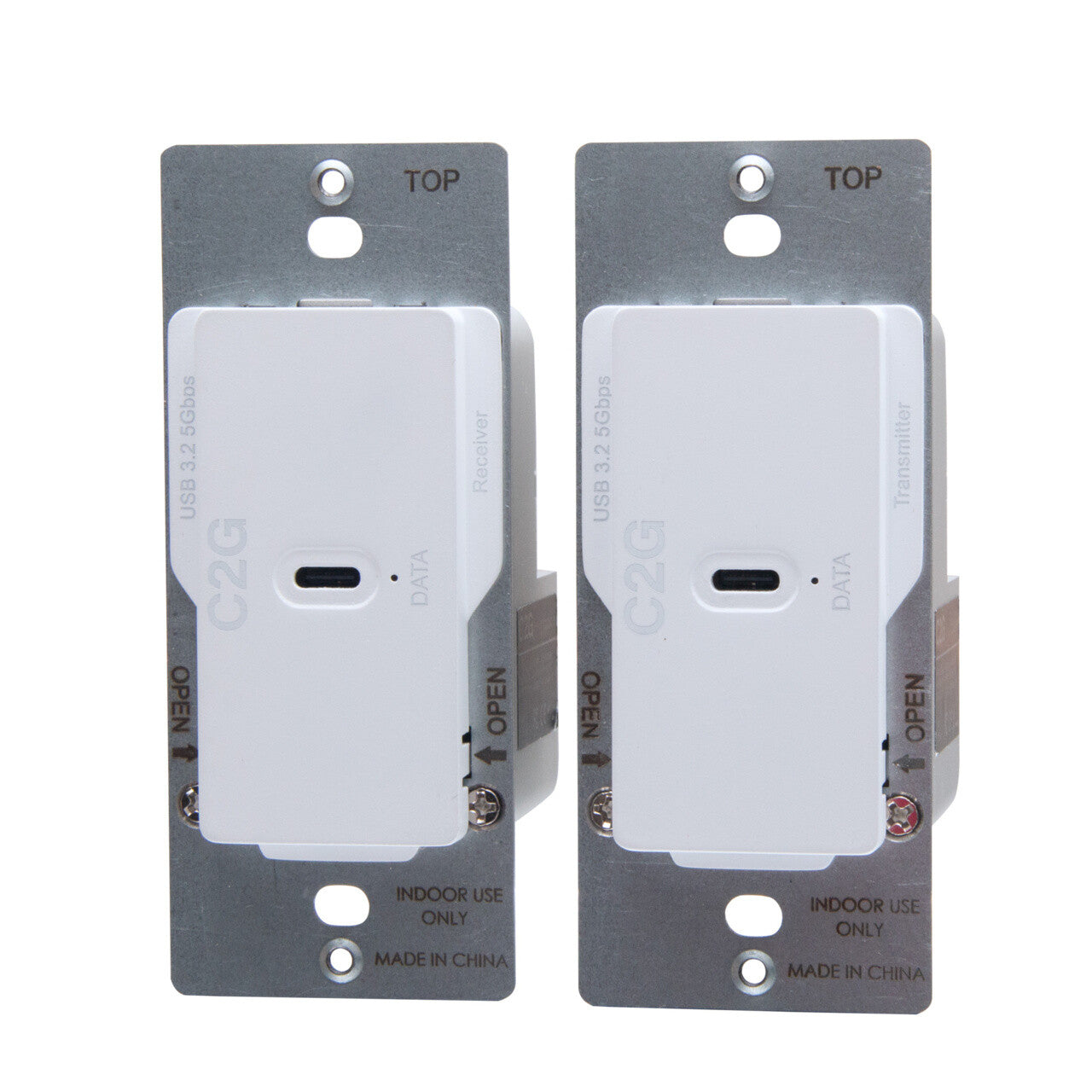

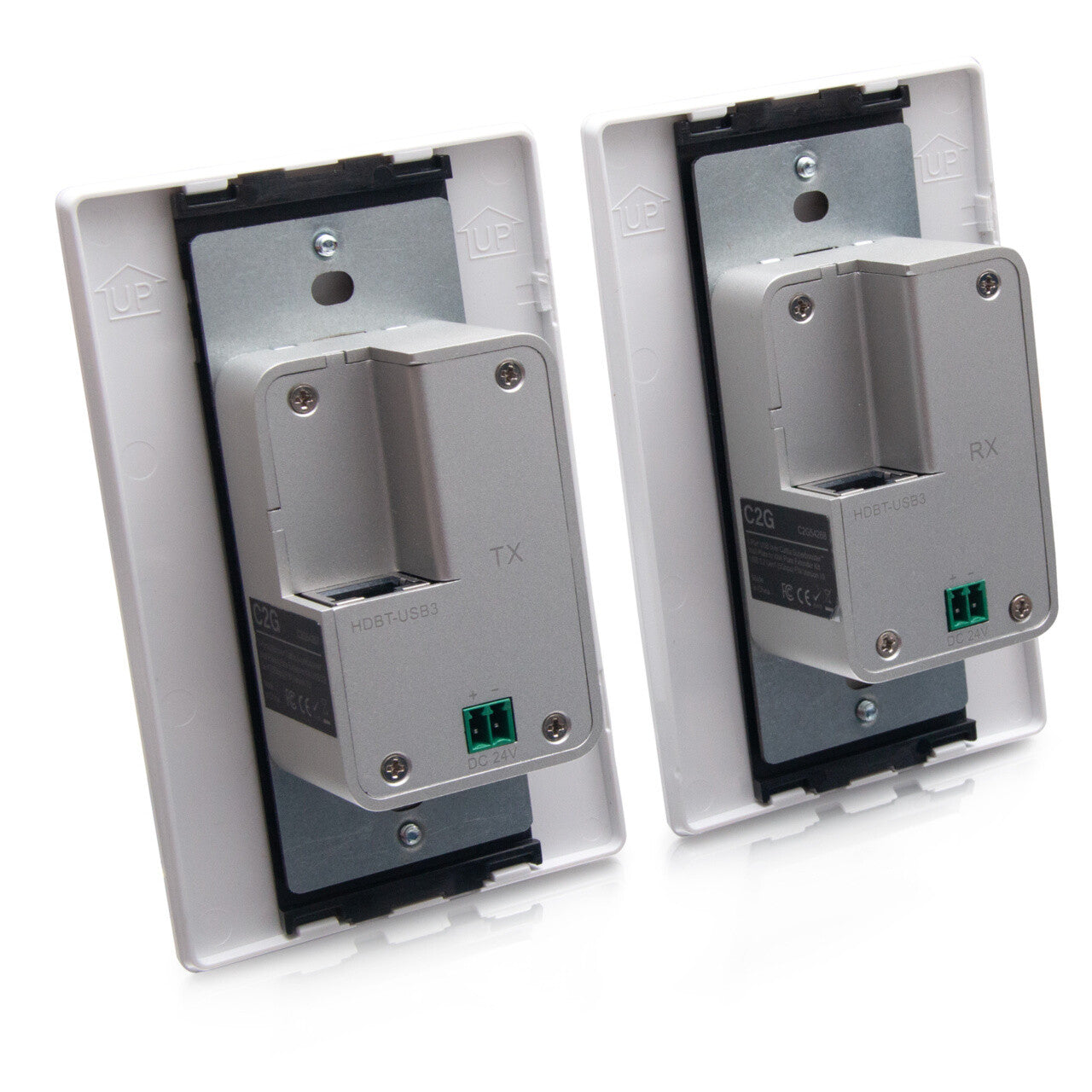

This plug-and-play solution consists of one USB 3.2 Gen1 Extender Wall Plate (transmitter), one USB 3.2 Gen1 Extender Wall Plate (receiver), 24V/1A multinational power supply with conversion plug and 2-pin Phoenix male head (3.5mm pitch), two 2-pin 3.5mm Phoenix connectors (male), and four machine screws.

This USB extender supports data transmission only—no DisplayPort Alt Mode video support.

Features
TAA Compliant
Tested and proven to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera
Extends a USB 3.2 Gen 1 data signal over Cat6a F/FTP cable
USB 3.2 connectivity with data transfer rates up to 5Gbps
USB 3.2 Gen 1 - Backwards compatible to USB 2.0 and USB 1.1
Supports bidirectional 24V PoC, allowing power to be supplied from either the transmitter or the receiver
Plug and play – no drivers required
Perfect for extending cameras, white boards, storage drives, and other high bandwidth USB devices
Backed by a 5-year warranty


This package includes:

1 x USB 3.2 Gen 1 Extender Wall Plate (Transmitter)

1 x USB 3.2 Gen 1 Extender Wall Plate (Receiver)

2 x Face Plate Cover

1 x 24V/1A Multinational Power Supply with Conversion Plug

1 x 2pin-3.5mm Phoenix Connector (Male)



Request a DemoWant to learn more about Superbooster USB Extenders? We'll connect you with a product expert to discuss your business needs and facilitate a product demo.
