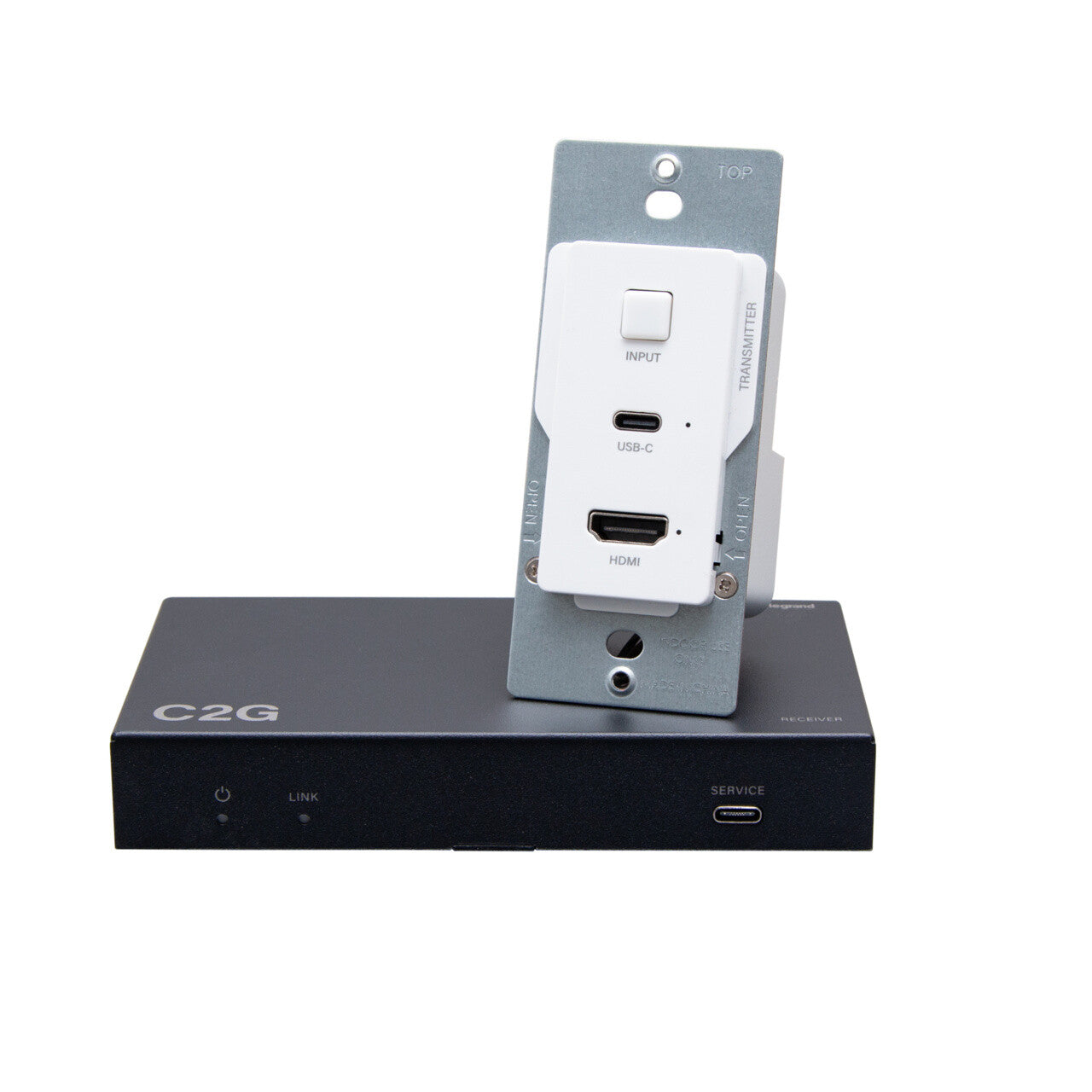

C2G HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k

HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k

---

Extends uncompressed HDMI and USB-C video signals, RS-232 control, and USB 2.0 data over a single CAT6a cable, supporting distances up to 230 ft (70 m) for 1080p or 130 ft (40 m) for 4K@60Hz HDMI and 4K@30Hz USB signals.
USB-C port supports 4K 30Hz video transmission via DP Alt Mode (v1.2a) and USB 2.0 data transfer
HDMI output on the receiver supports downscaling from 4K 60Hz to 1080p, without frame rate conversion.
HDCP 2.2 compliant ensures a secure connection between the source and display
Transmitter supports manual and automatic switching (following the last-in-first-out rule)
Two USB-A ports on the receiver supporting output power up to 5V/1.4A


This package includes:

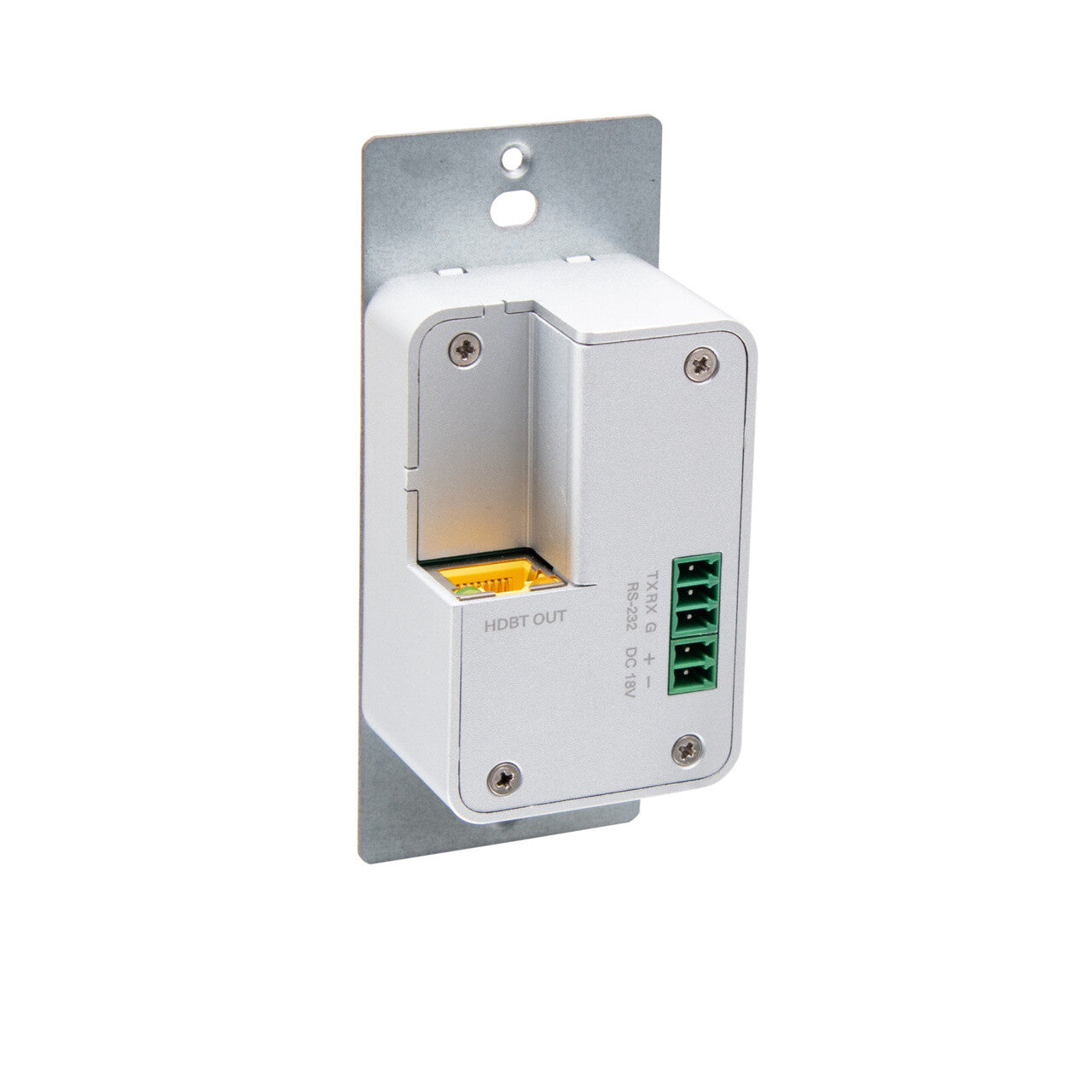

1× 4K HDBaseT Wall Plate Transmitter with USB-C/HDMI Inputs

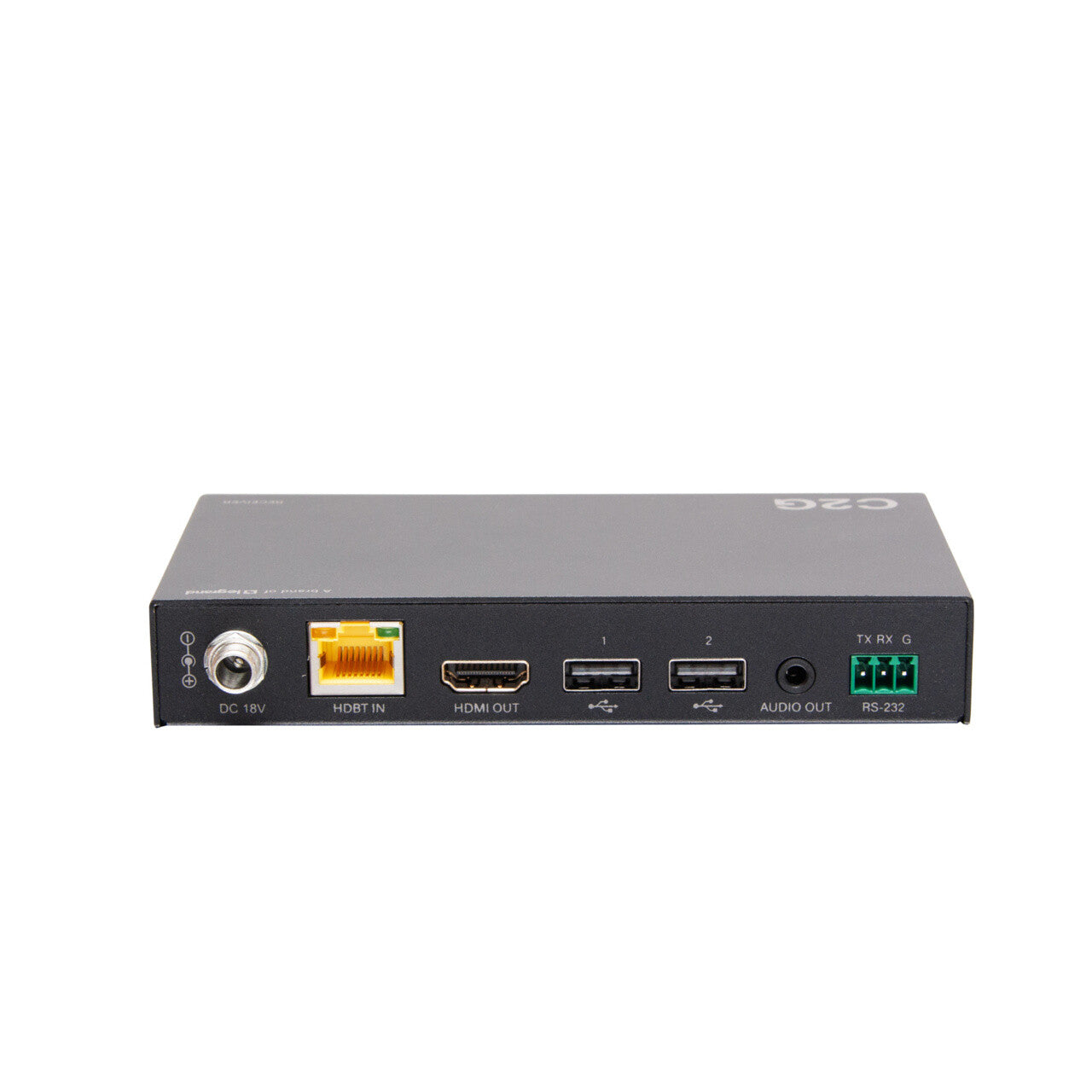

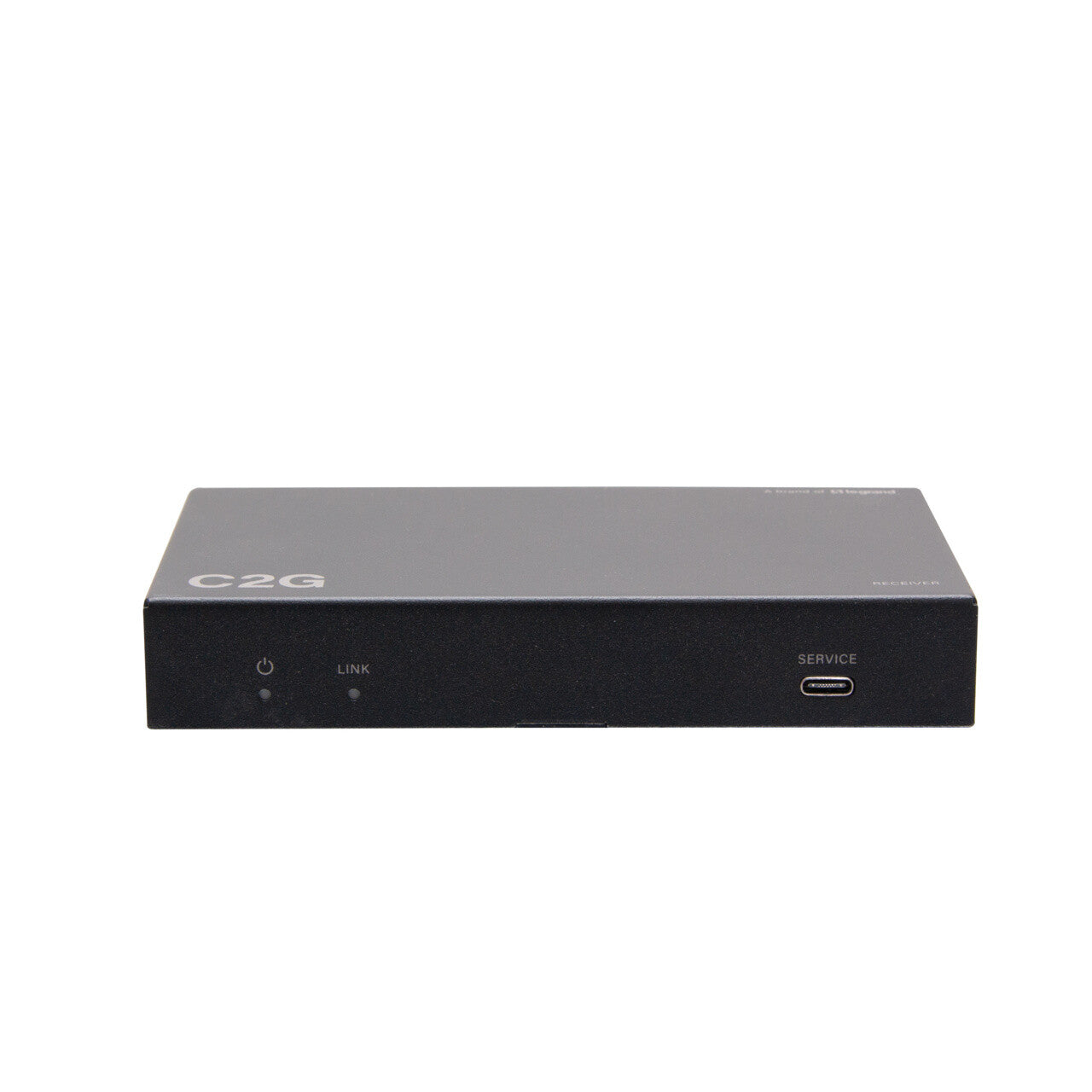

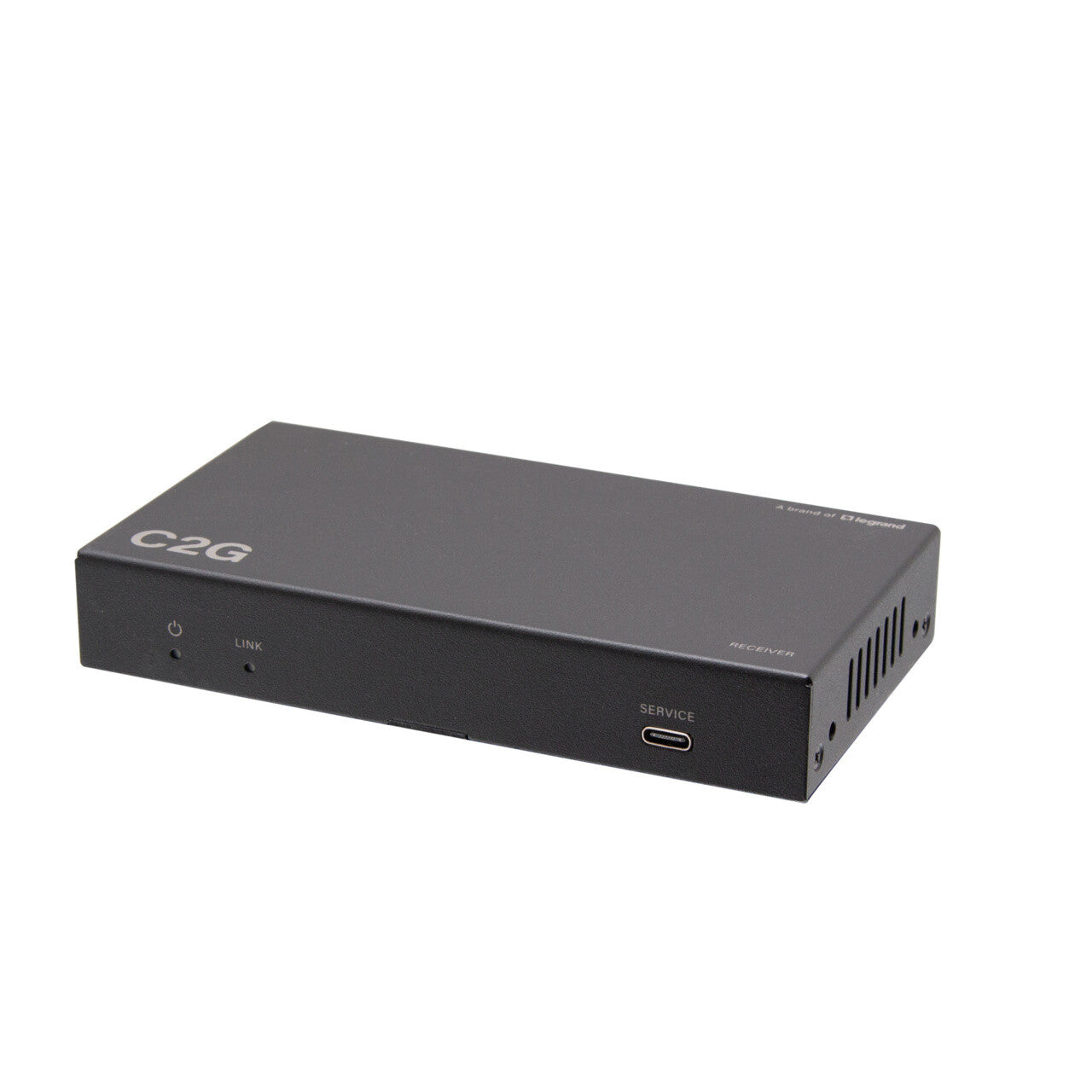

1× 4K HDBaseT Receiver Box
1× 18V/2.5A Multinational Power Supply with US/EU/UK/AU Conversion Plug
2× 3-pin 3.5mm Phoenix Connector
1× 2-pin 3.5mm Phoenix Connector
2× Mounting Ear
4× Machine Screw (KM3*4)
2× Machine Screw (6#-32*3/4)
