C2G30055

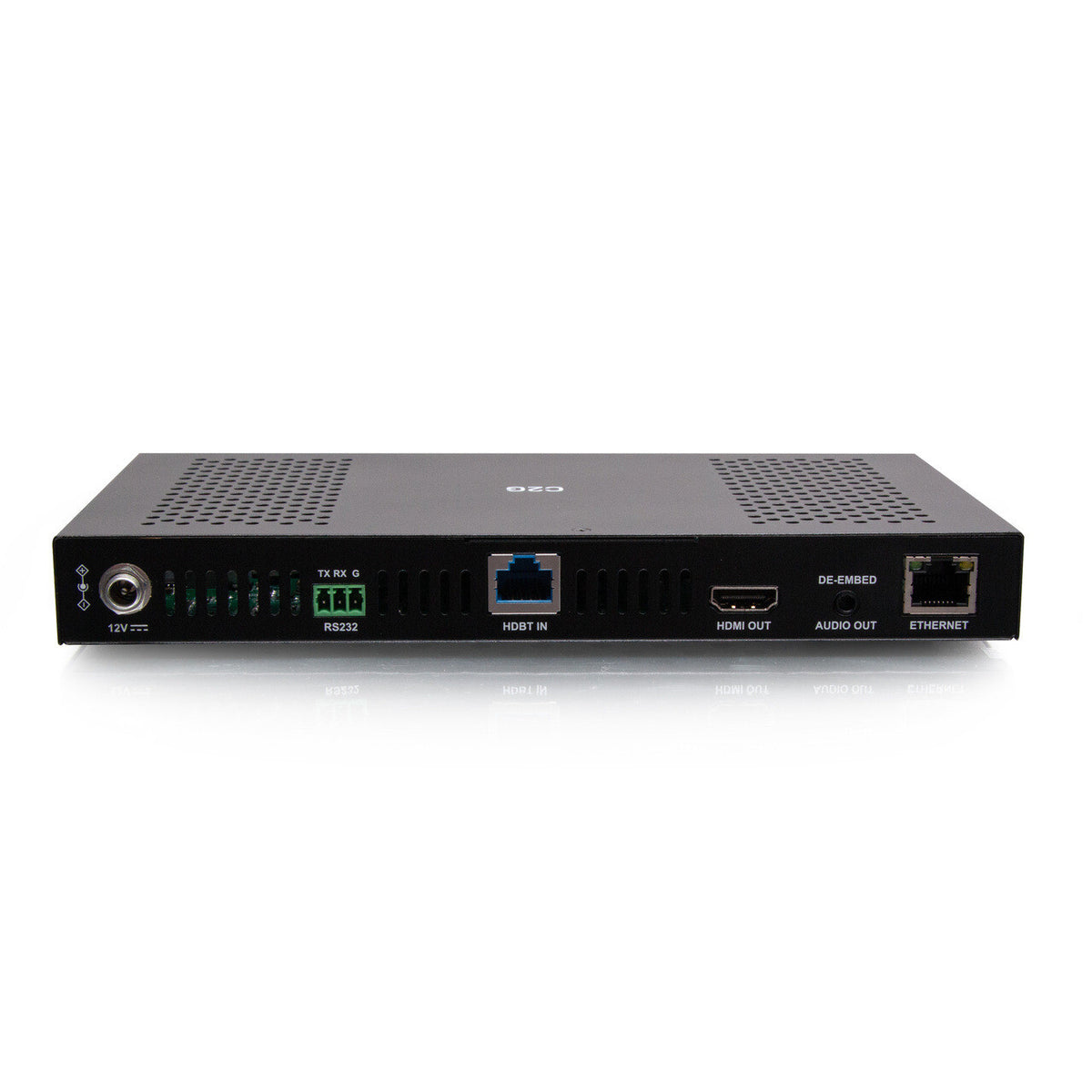

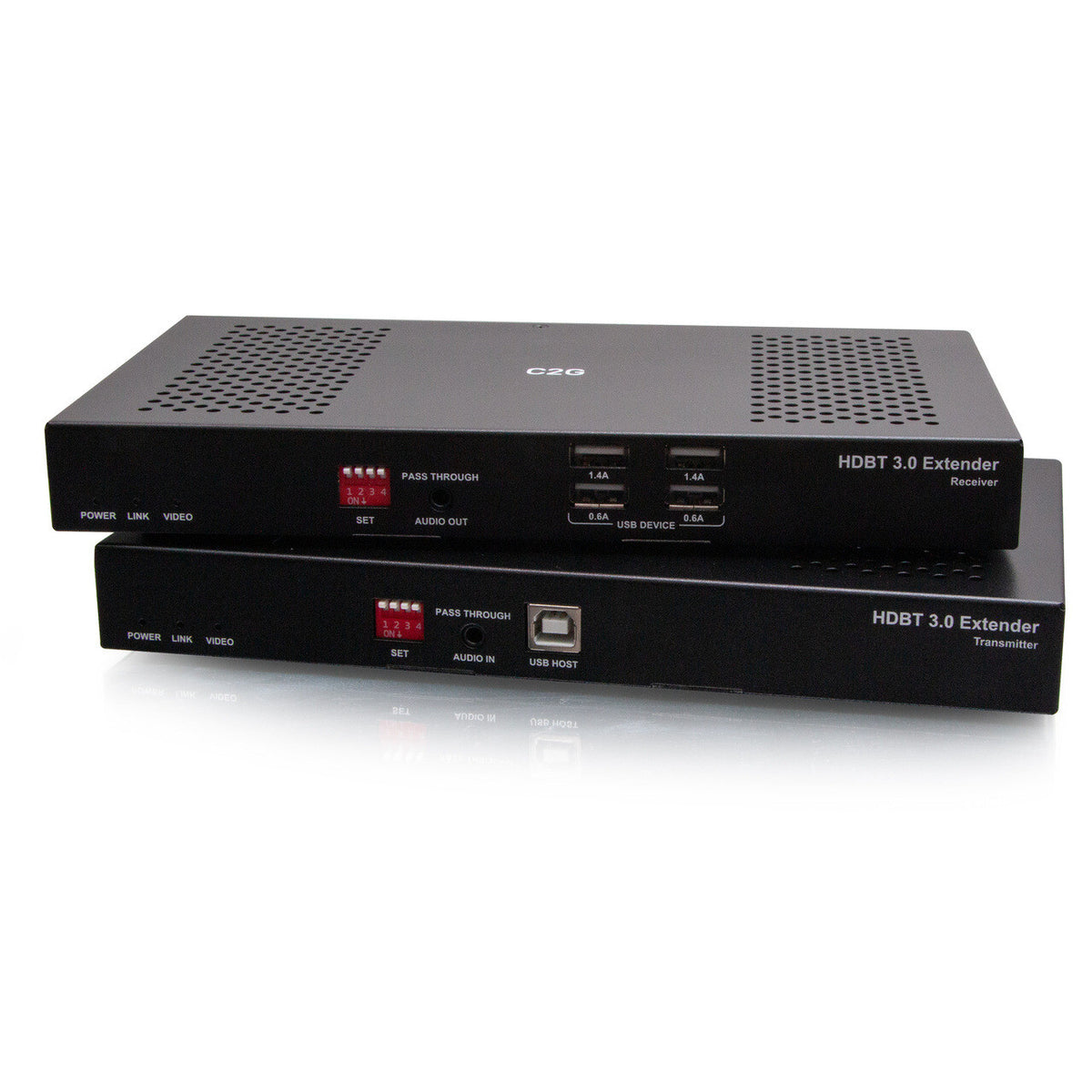

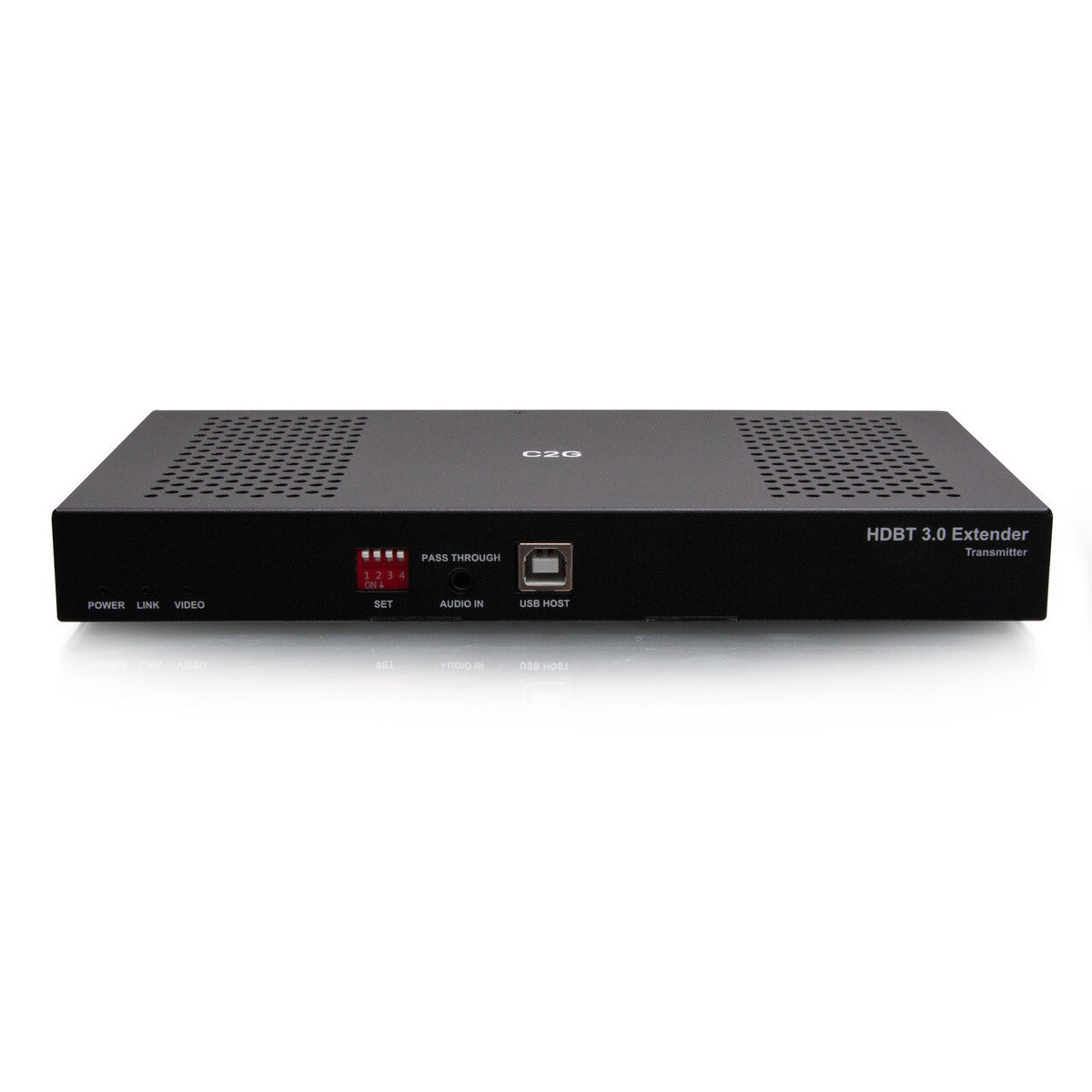

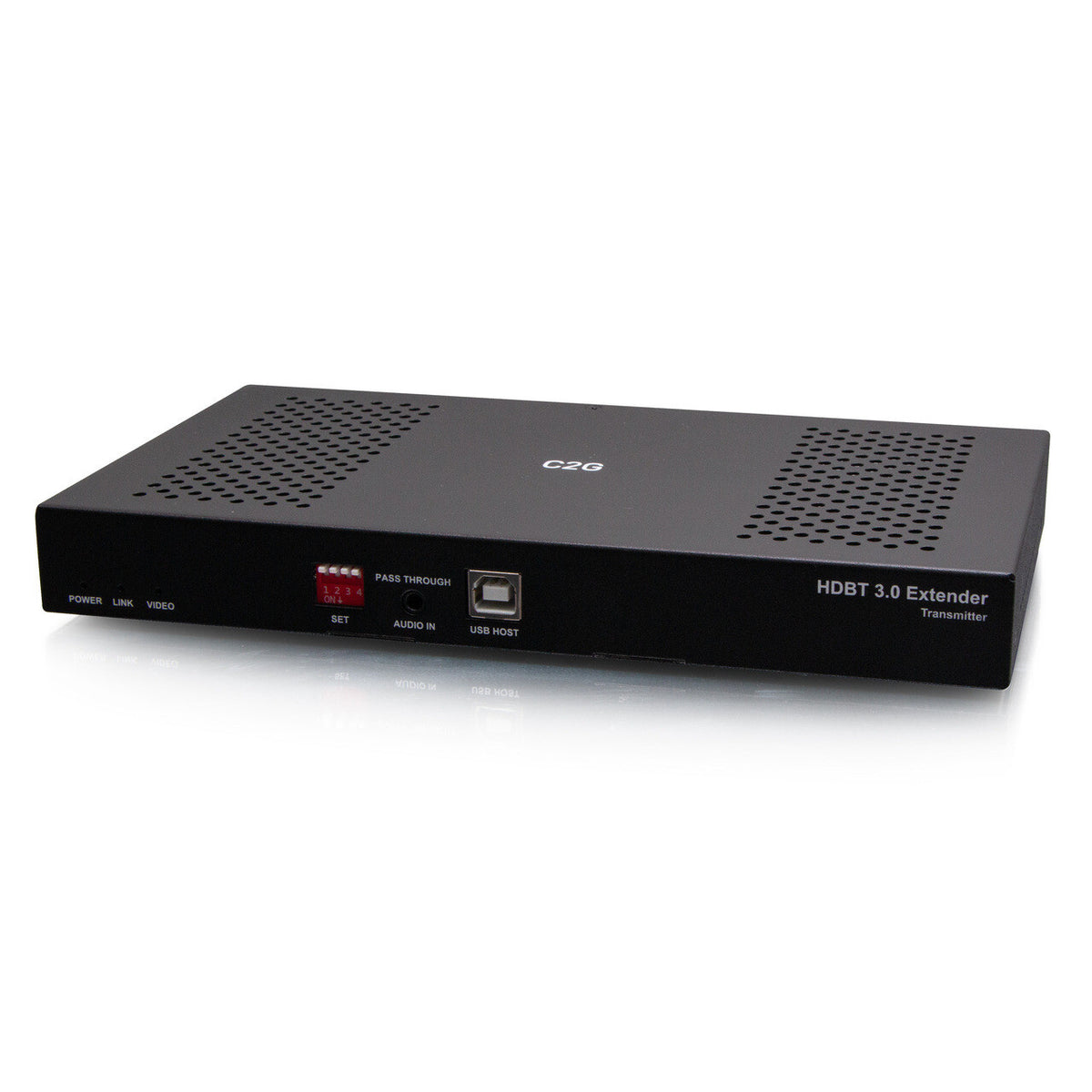

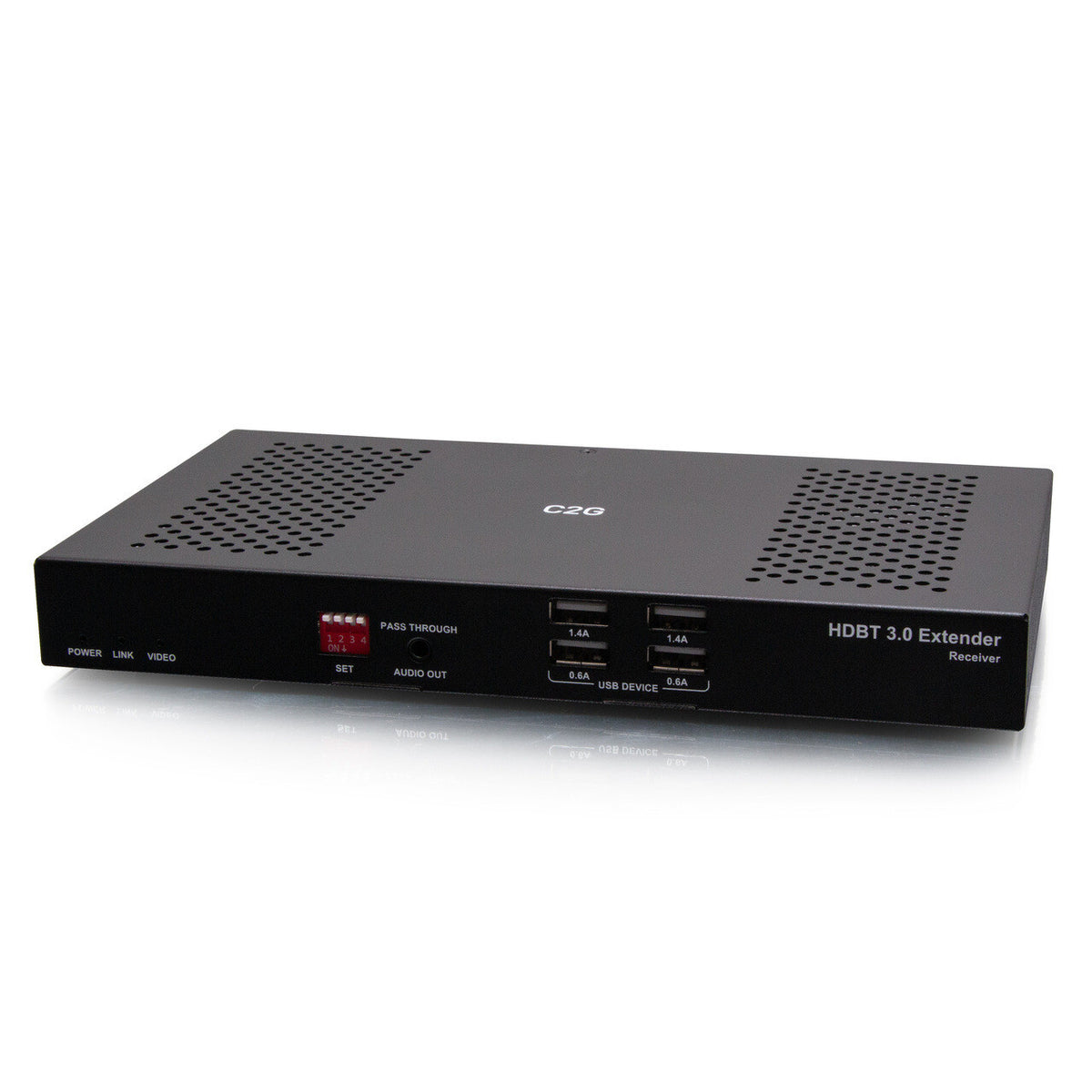

HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 100m (328ft)

---

The HDMI® HDBaseT + USB-B to A and RS232 over Cat Extender (18Gbps) allows for the extension of a 4K HDMI source up to 328ft to a 4K display without signal loss using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays or in any installation that goes far beyond the length limitations of standard HDMI and USB cabling.

This HDMI HDBaseT 3.0 kit supports 5Play features, including the combined delivery of uncompressed ultra-high-definition digital video and audio, Ethernet, control signals, USB 2.0, and up to 100W of power through a single, 100m/328ft Cat6a LAN cable. The uncompressed digital video fully supports 4K 60Hz (4:4:4) HDMI signals and all audio formats in the HDMI 2.0 specification. The Ethernet pass-through transmits 1GB of data. The featured dip switch allows for RS232 pass-through and the added convenience of field firmware updating. USB 2.0 supports streaming cameras, connected peripherals, and storage devices. With one-way Power over HDBaseT (PoH) support, one power adapter connected to the receiver powers both the transmitter and receiver, so no additional power adapter required, allowing for greater flexibility in installations.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Note: Shielded, solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables, or in high EMI/RFI environments.
