C2G  |  SKU: CG-C2G30010

C2G30010

  • Extend 4K HDMI up to 40m over a single Cat6a network patch cable using HDBaseT technology
  • Extend 4K at 60Hz (4:2:0) up to 40m and 1080p at 60Hz up to 70m with Cat 6a cable
  • Extend 4K at 60Hz (4:2:0) up to 35m and 1080p at 60Hz up to 60m with Cat 5e/6 cable
  • HDCP 2.2 compliant, to create a secure connection between the source and display
  • Bi-directional PoC, when either transmitter or receiver is plugged into power
Manufacturer PDFs

leaflet

manual pdf

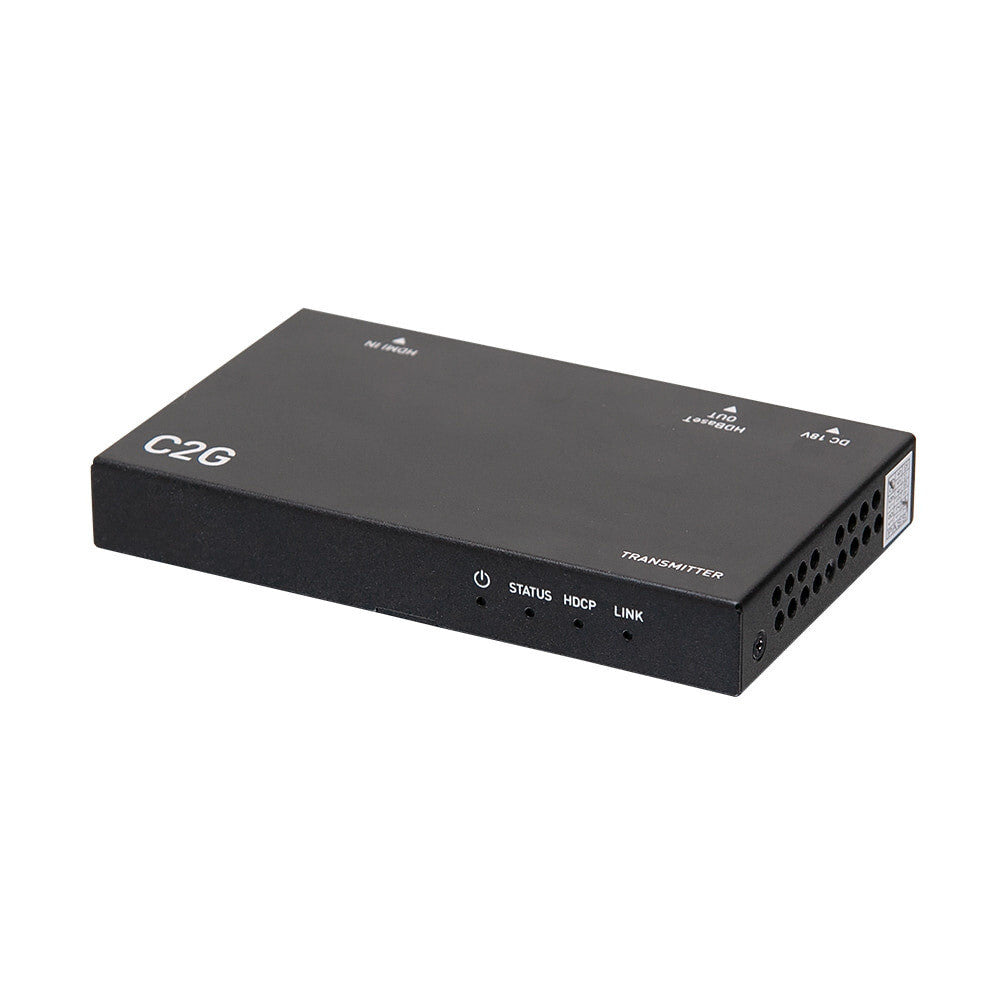

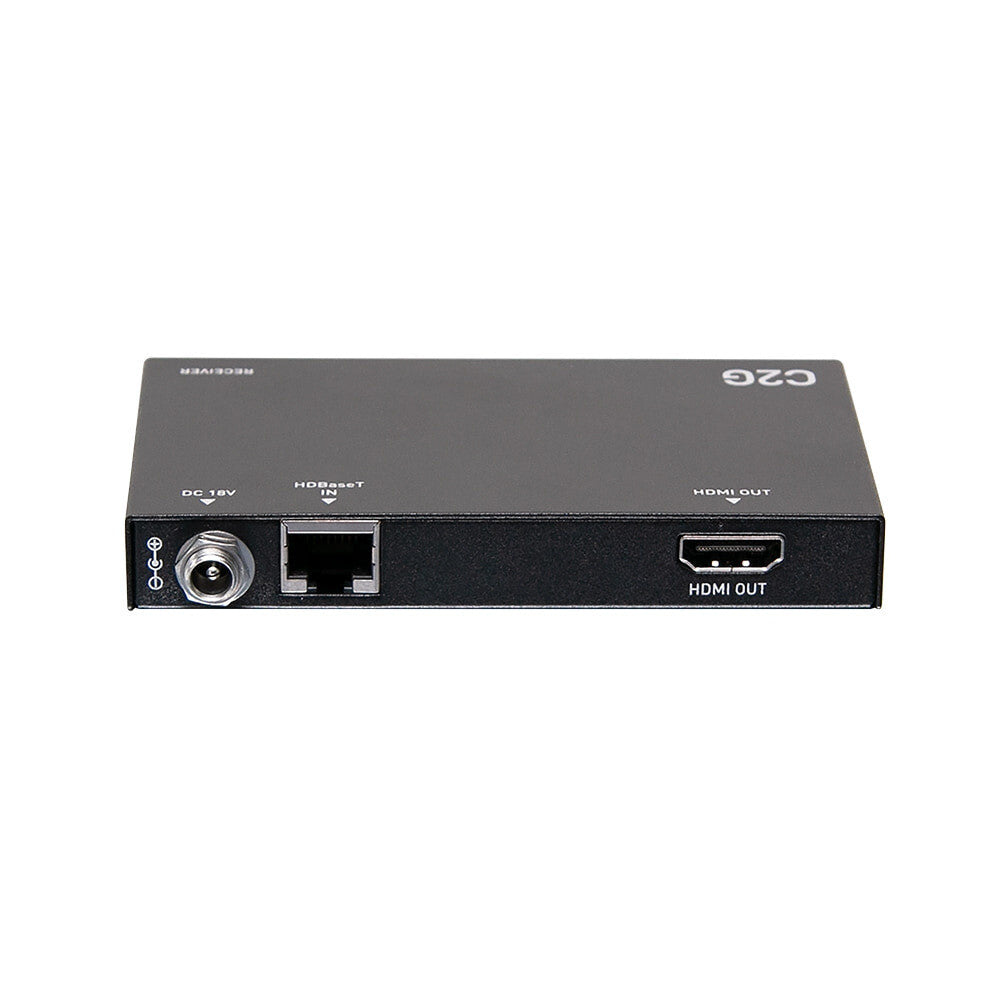

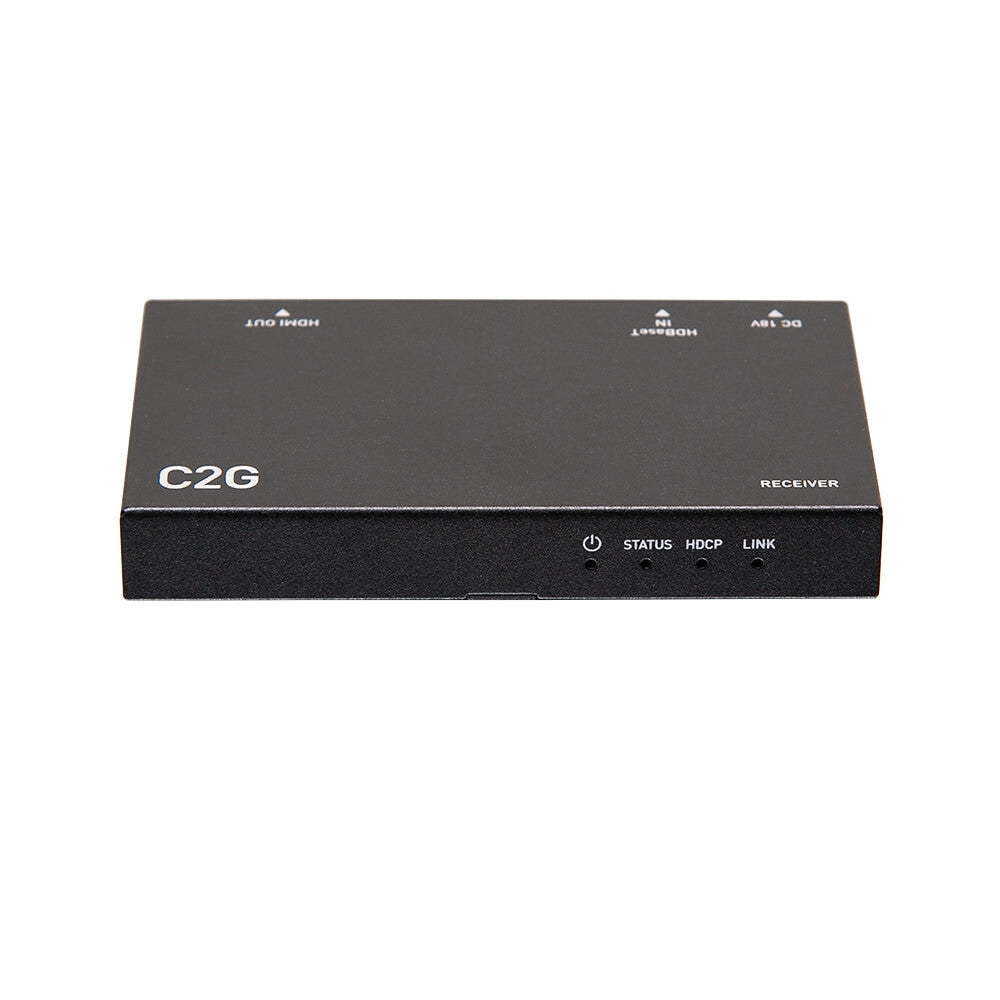

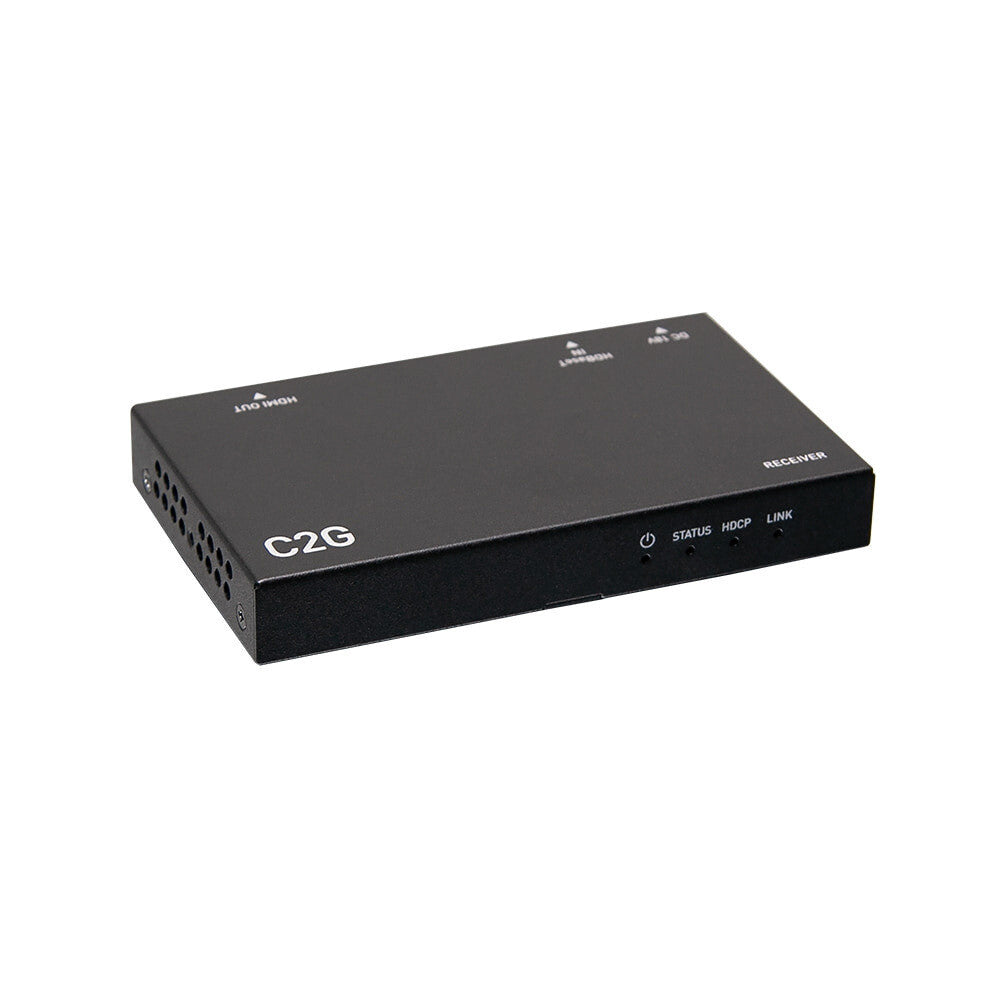

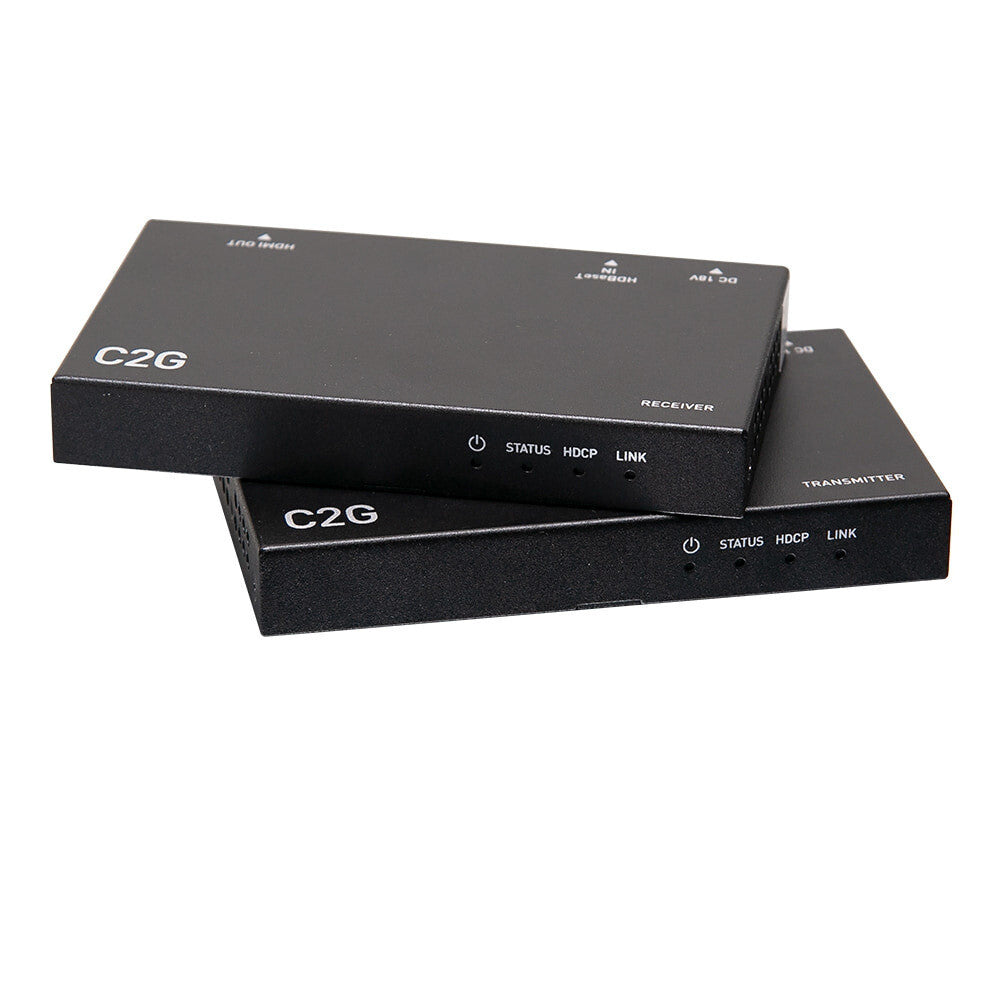

HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz

The HDMI HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 40m to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution for delivering uncompressed HDMI video and audio to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This HDMI HDBaseT Extender supports 4K resolutions at 60Hz up to 40m and 1080p at 60Hz up to 70m when using a single, recommended Cat6a Ethernet cable. Also, extend 4K at 60Hz up to 35m and 1080p at 60Hz up to 60m when using Cat5e or Cat6 cabling.

This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. The bi-directional PoC (Power over Cable) function allows both the transmitter and the receiver to be powered on when either side is plugged into power, allowing for greater flexibility in installations.

C2G

C2G30010

$417
HDMI® HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz

The HDMI HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 40m to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution for delivering uncompressed HDMI video and audio to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This HDMI HDBaseT Extender supports 4K resolutions at 60Hz up to 40m and 1080p at 60Hz up to 70m when using a single, recommended Cat6a Ethernet cable. Also, extend 4K at 60Hz up to 35m and 1080p at 60Hz up to 60m when using Cat5e or Cat6 cabling.

This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. The bi-directional PoC (Power over Cable) function allows both the transmitter and the receiver to be powered on when either side is plugged into power, allowing for greater flexibility in installations.
