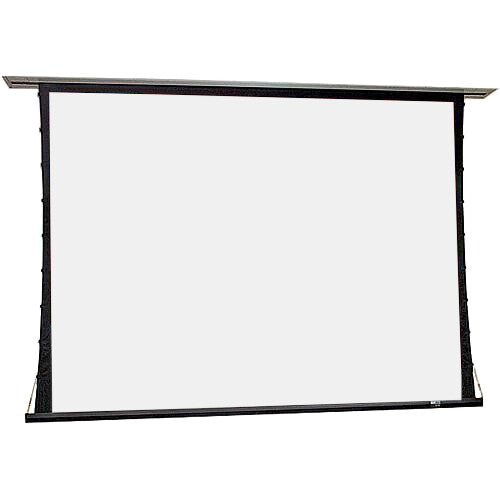

Draper Access XL V, 248", HDTV, Matt White XT1000VB, 110 V, with LVC-IV Low Voltage Controller
- Case dimensions are 10-1/8" high x 9-7/16" deep (26 cm x 24 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details
- Maximum image width up to 18' (549 cm) wide, depending on surface selection
- RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area
- Adjustable or removable hoisting brackets included for easy lifting during installation

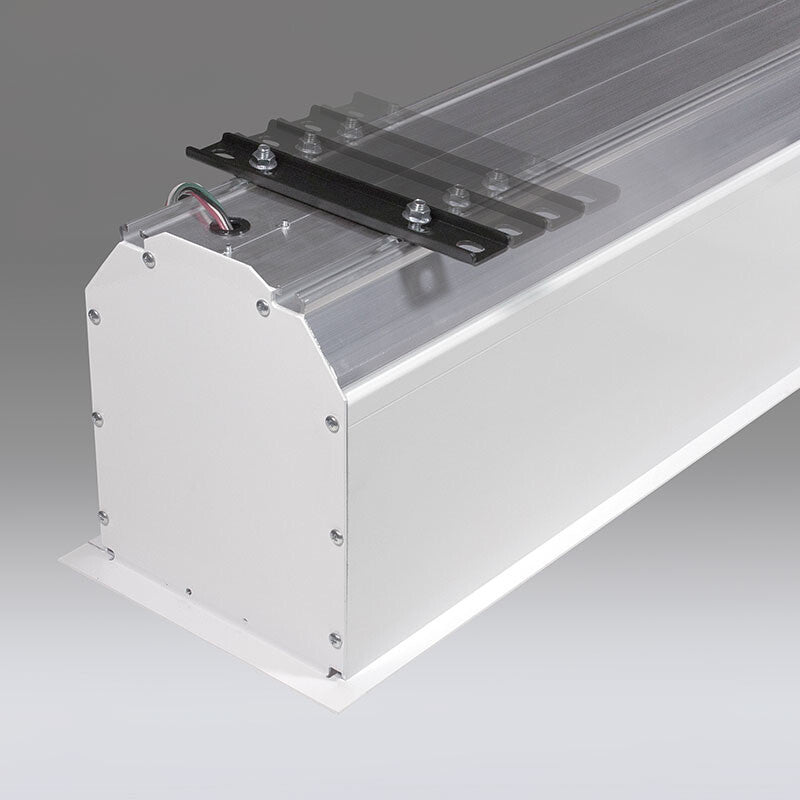

- Sliding brackets on top of case allow unlimited adjustment for mounting
- Sliding brackets inside case accommodate different size screens

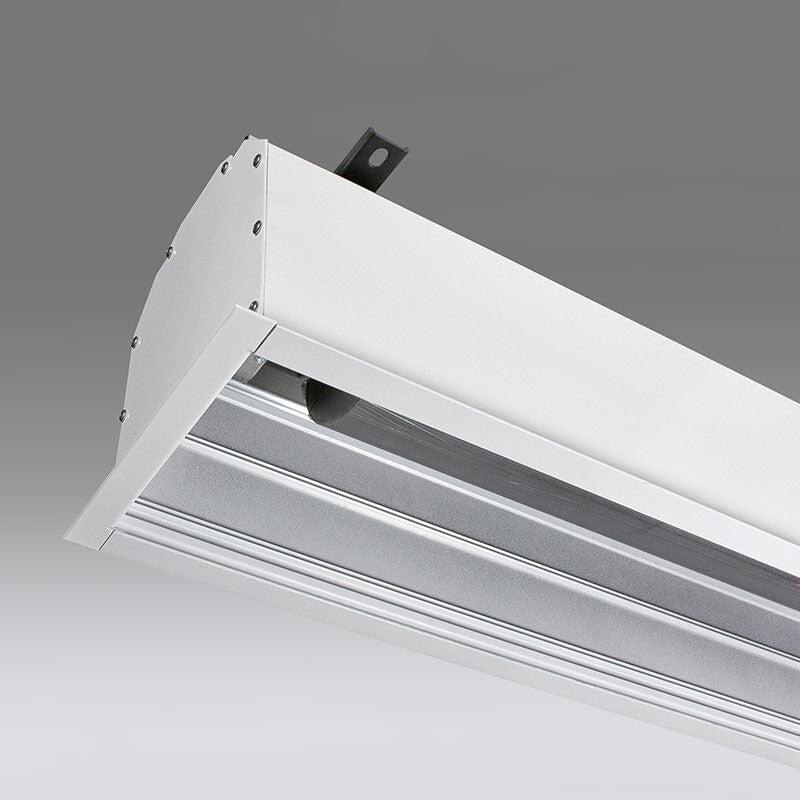

- Bottom access panel door is detachable for service or maintenance
- Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available
- White case standard, black available upon request
- Custom sizes available
- UL Listed

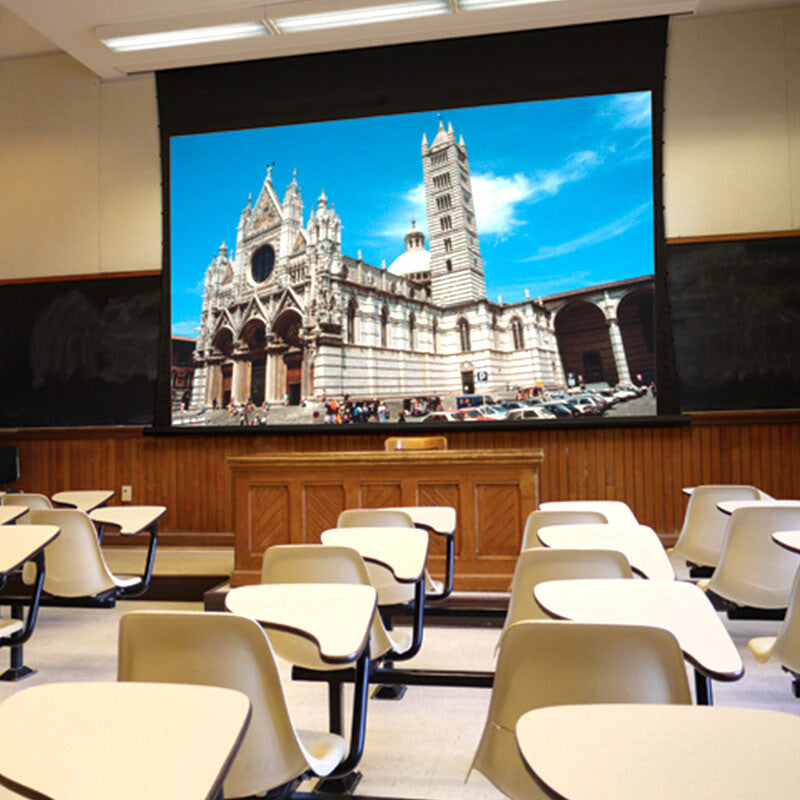

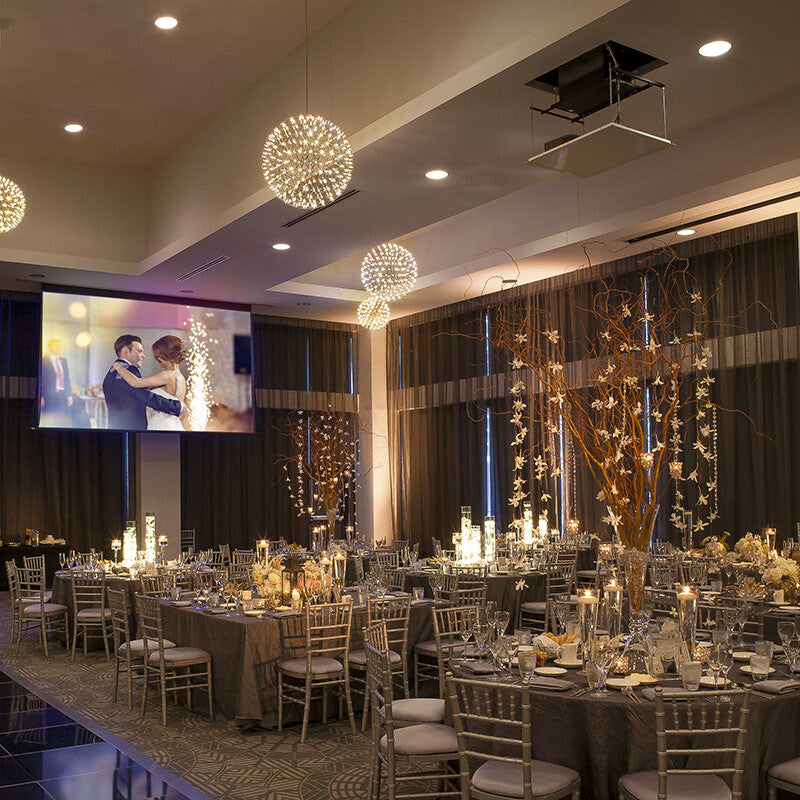

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL V projection screen. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. Case includes a bottom access panel door for easy service and maintenance.
-
Diagonal
-
Drive Type
-
Mounting Type
-
Native Aspect Ratio
-
Viewable Screen Height (H)
-
Viewable Screen Width (W)
