1 6
Draper  |  SKU: DR-147016FB

Access XL V, 208 3/8in, 21:9 Ultrawide, Matt White XT1000VB, 110 V

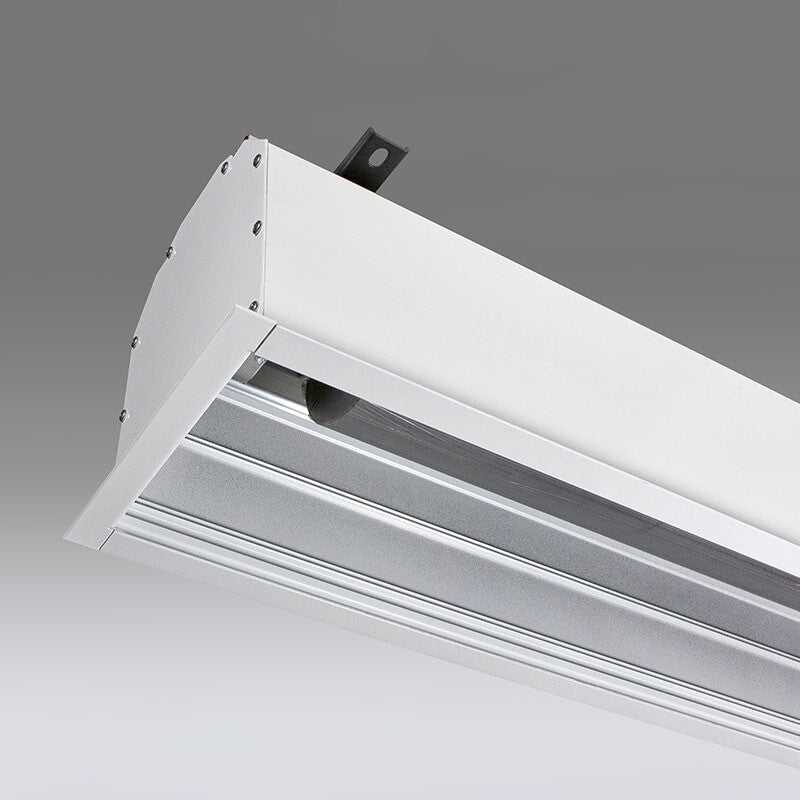

  • Case dimensions are 10-1/8" high x 9-7/16" deep (26 cm x 24 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details
  • Maximum image width up to 18' (549 cm) wide, depending on surface selection
  • RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years

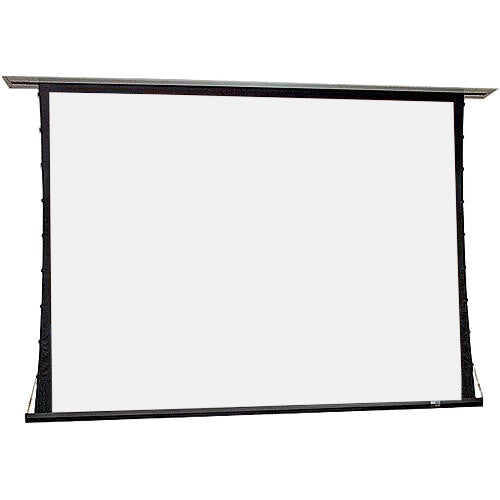

  • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area
  • Adjustable or removable hoisting brackets included for easy lifting during installation

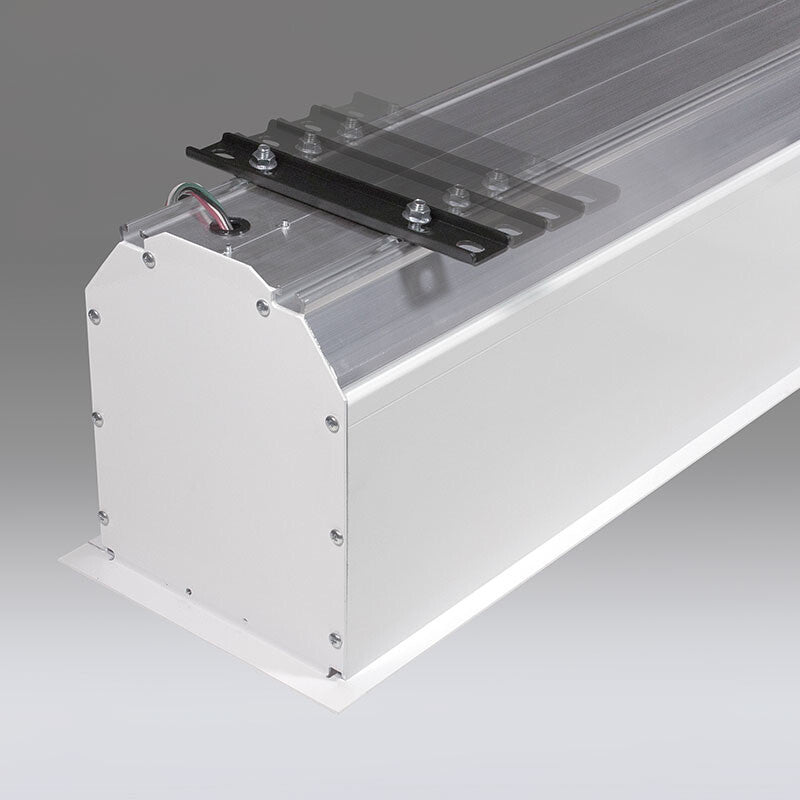

  • Sliding brackets on top of case allow unlimited adjustment for mounting
  • Sliding brackets inside case accommodate different size screens
  • Bottom access panel door is detachable for service or maintenance
  • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available
  • White case standard, black available upon request
  • Custom sizes available
  • UL Listed
Manufacturer PDFs

LIMITED WARRANTY

manual pdf

leaflet

Access XL V, 208 3/8", 21:9 Ultrawide, Grey XH600V, 110 V

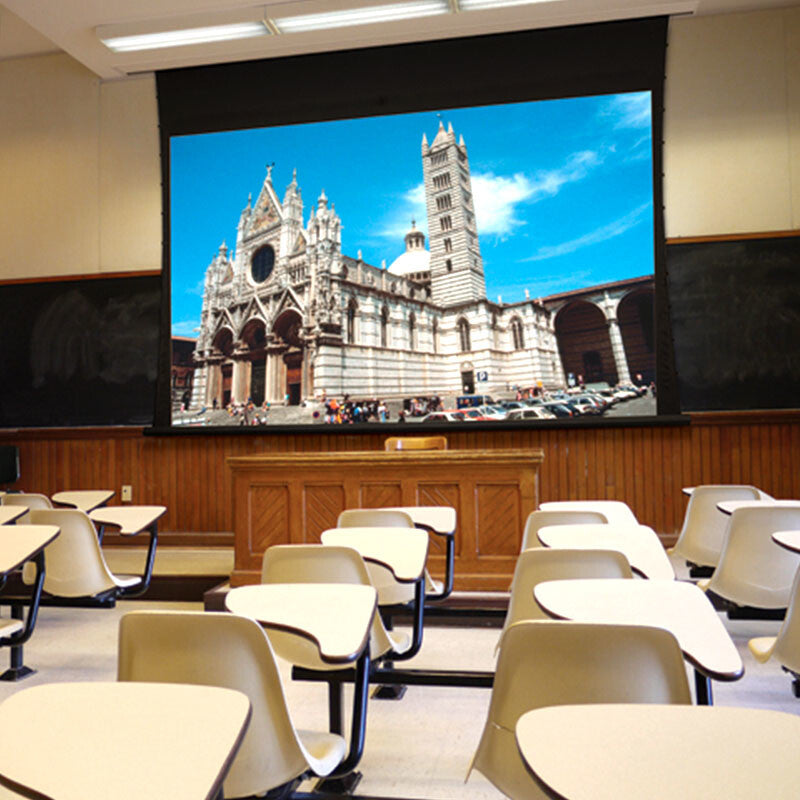

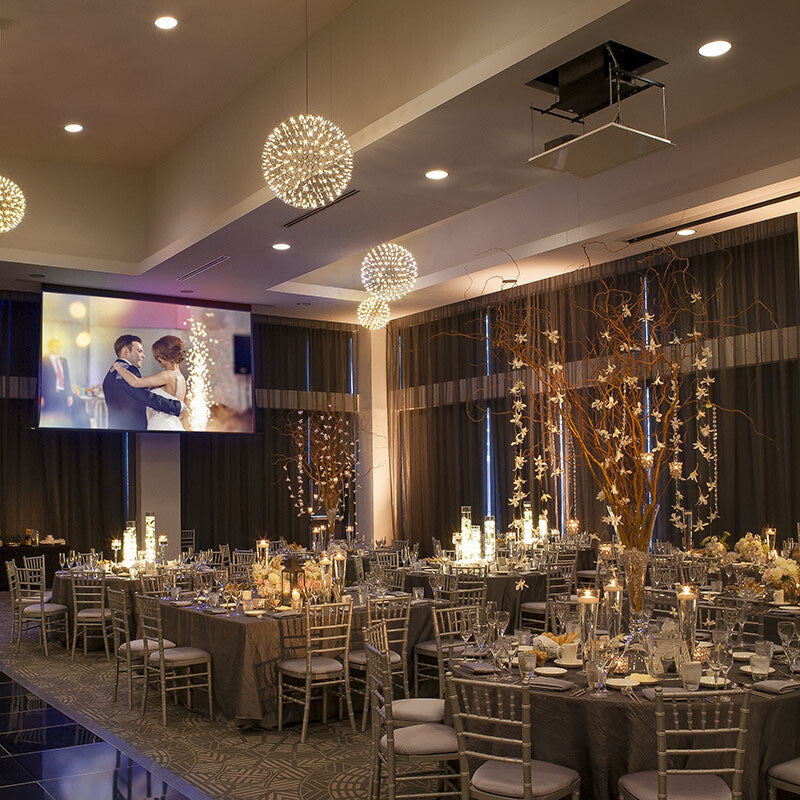

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL V projection screen. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. Case includes a bottom access panel door for easy service and maintenance.

Draper

Access XL V, 208 3/8in, 21:9 Ultrawide, Matt White XT1000VB, 110 V

$25,288
Access XL V, 208 3/8", 21:9 Ultrawide, Grey XH600V, 110 V

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL V projection screen. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. Case includes a bottom access panel door for easy service and maintenance.
