Draper  |  SKU: DR-146007

Draper 146007 projection screen 6.35 m (250") 4:3

  • Case dimensions are 10-1/8" high x 9-7/16" deep (26 cm x 24 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details
  • Maximum image width up to 20' (610 cm) wide, depending on surface selection
  • Black drop standard, depending on screen size. Extra drop above image area available upon request
  • Adjustable or removable hoisting brackets included for easy lifting during installation

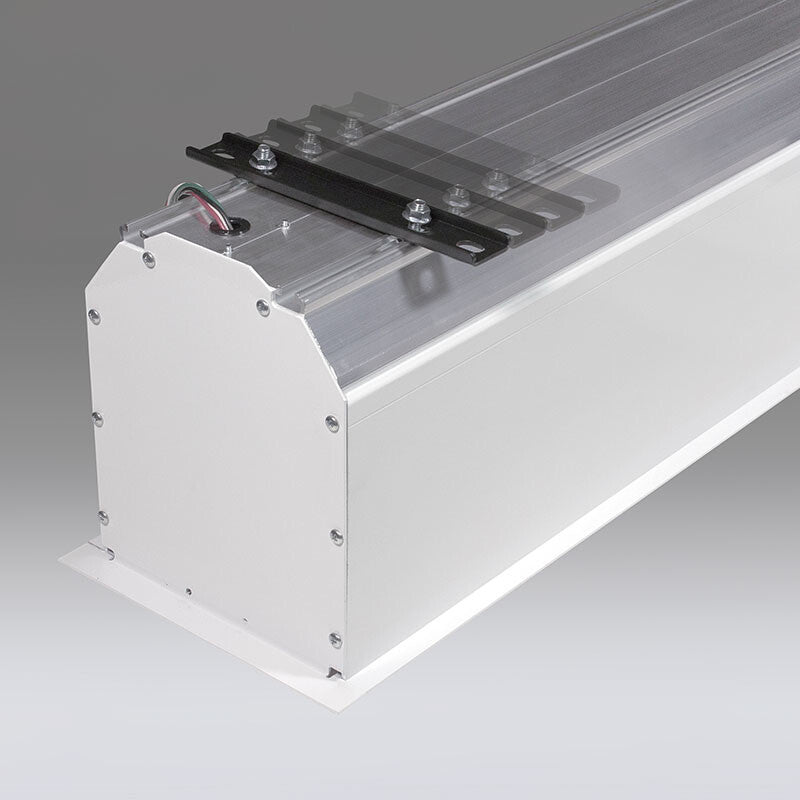

  • Sliding brackets on top of the case allow for adjustments for mounting
  • Sliding brackets inside case accommodate different size screens

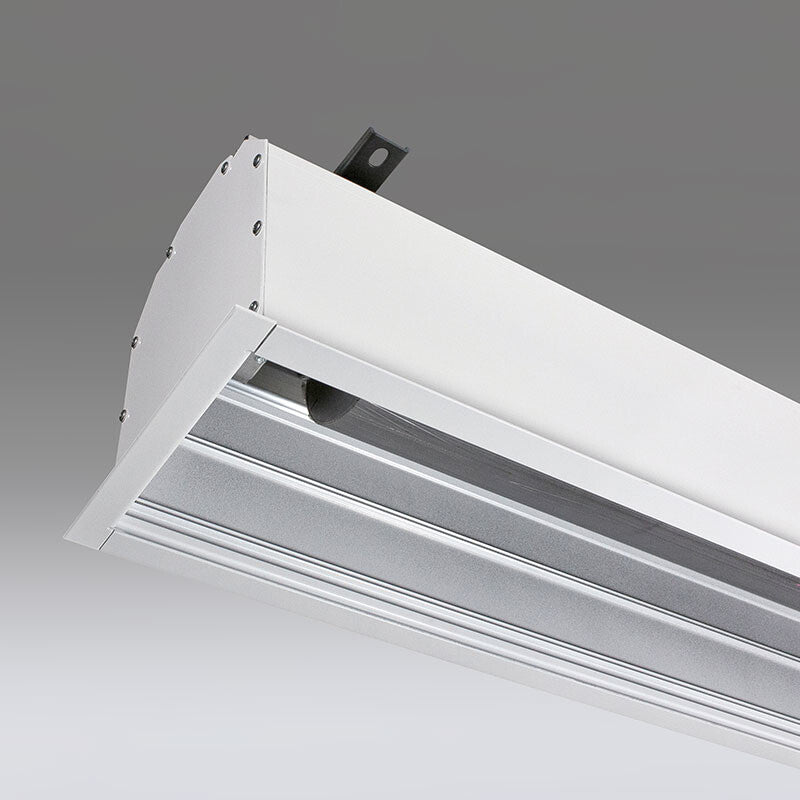

  • Bottom access panel door detachable for easy service and maintenance
  • Includes a 110V, 3-position switch (standard). Quiet, low-voltage motors and 220V options available
  • White case standard, black available upon request
  • Custom sizes available
  • UL Listed
Manufacturer PDFs

manual pdf

Warranty

Care and Maintenance Instructions

leaflet

Access XL E, 250", NTSC 4:3, Matt White XT1000E, 110 V

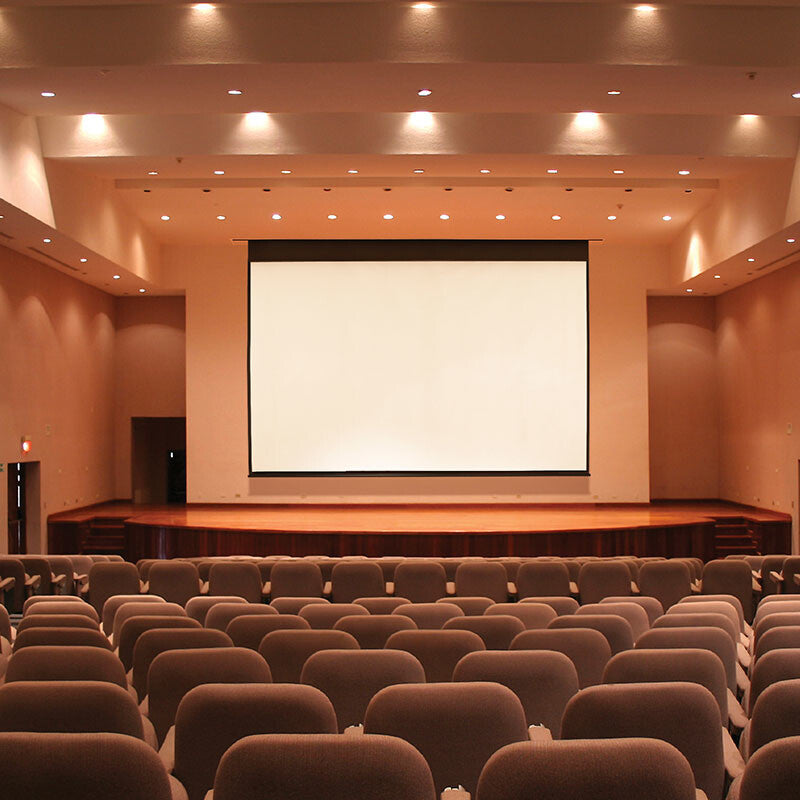

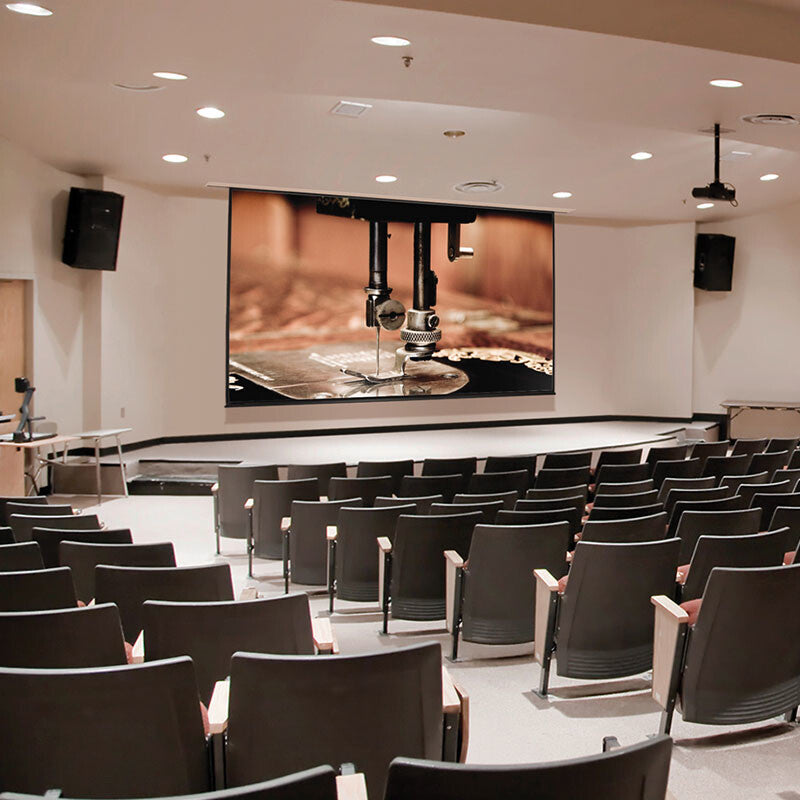

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL E projection screen. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. Case includes a bottom access panel door for easy service and maintenance.

Draper

Draper 146007 projection screen 6.35 m (250") 4:3

$18,006
Access XL E, 250", NTSC 4:3, Matt White XT1000E, 110 V

Large venues—such as ballrooms, conference centers, or university classrooms—benefit from the larger sizes available with the Access XL E projection screen. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. Case includes a bottom access panel door for easy service and maintenance.
