Draper | SKU:
DR-139106EC
Access E, 150in, NTSC, Contrast Grey XH800E, 110 V
- Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
- Maximum image width up to 16' (488 cm) wide, depending on surface selection.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
- Sliding brackets on top of the case allow for adjustments when mounting.
- Sliding brackets inside case accommodate different size screens.
- Bottom access panel door is detachable for easy service or maintenance.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
- Low voltage, video interface or other controls can be built into housing for access from below ceiling.
- White case standard, black available upon request.
- Custom sizes available.
- UL Listed.
Access E, 150in, NTSC, Contrast Grey XH800E, 110 V
$5,954
Access E, 150", NTSC, Contrast Grey XH800E, 110 V

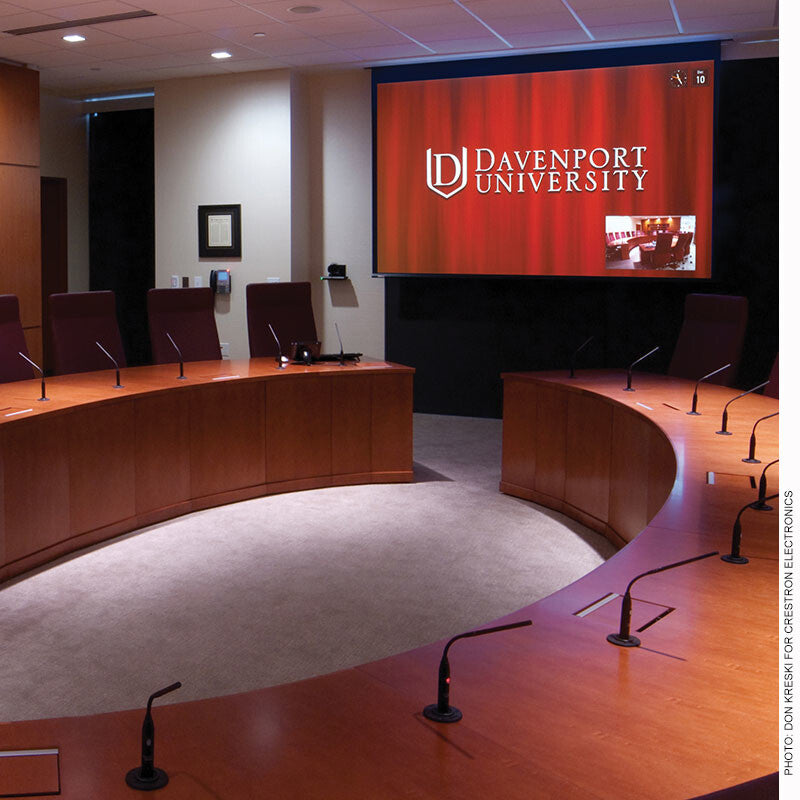

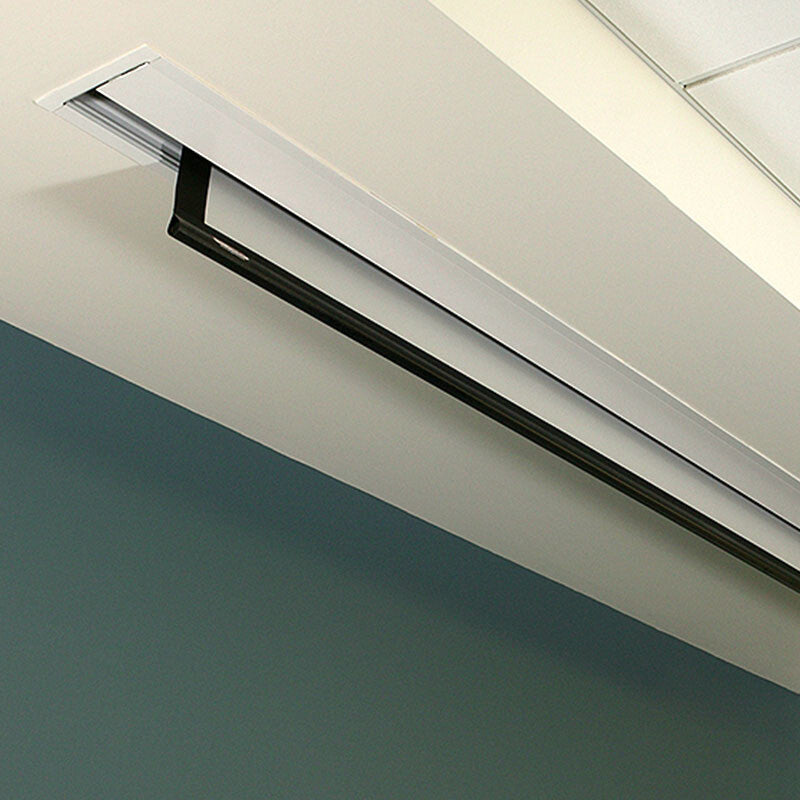

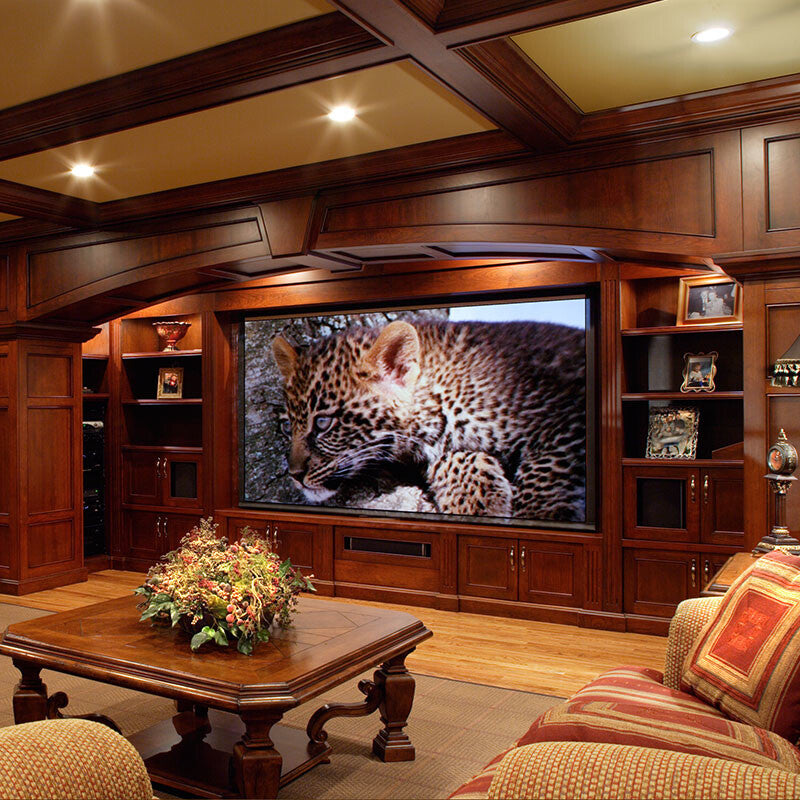

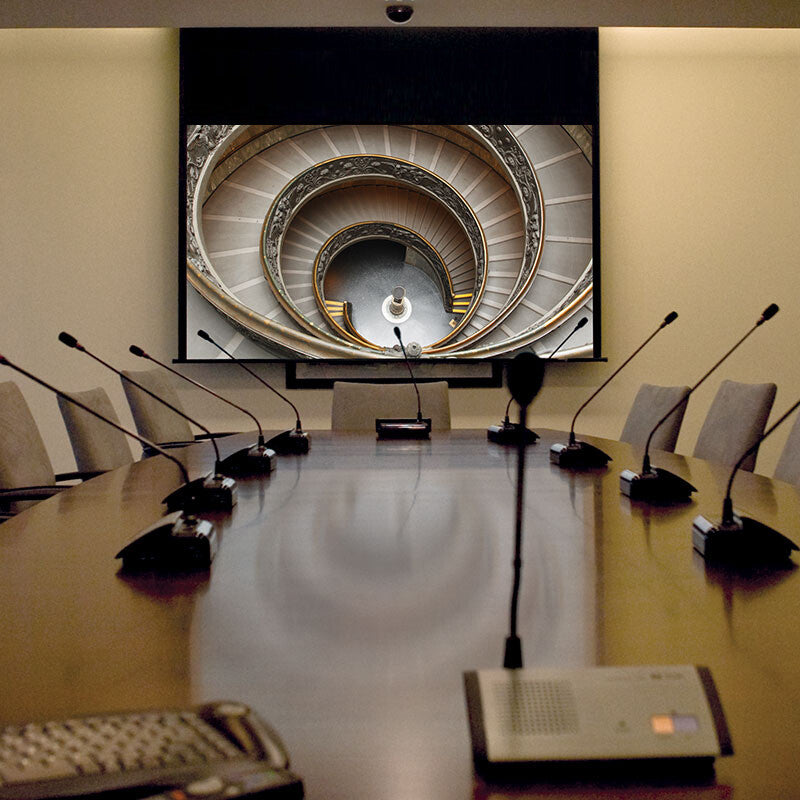

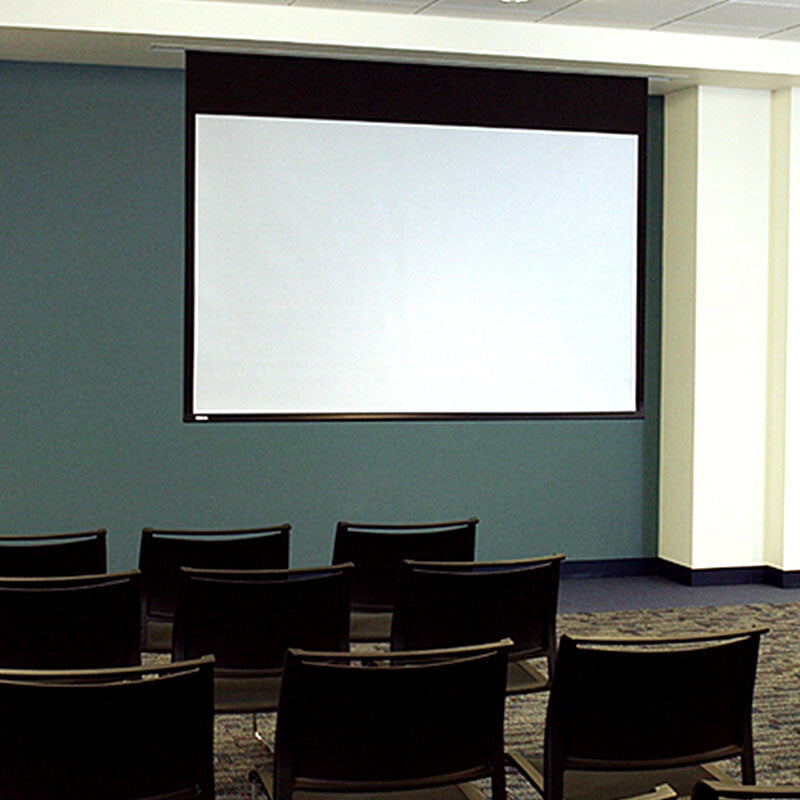

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. Case includes a bottom access panel door for easy service and maintenance.
-
Diagonal
-
Drive Type
-
Mounting Type
-
Native Aspect Ratio
-
Viewable Screen Height (H)
-
Viewable Screen Width (W)
