Mimo  |  SKU: MI-UM-760C-OF

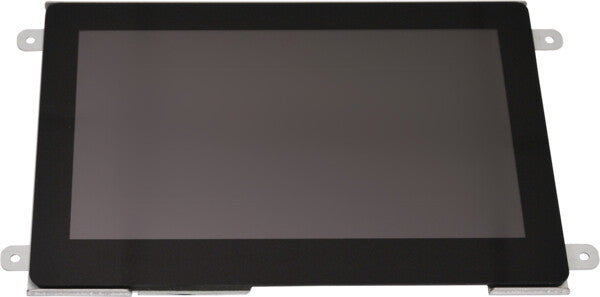

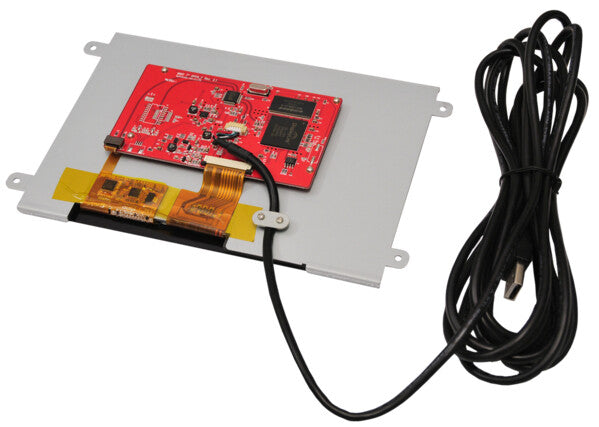

Mimo Monitors UM-760C-OF Signage Display 17.8 cm (7") LCD 250 cd/m² Black Touchscreen

  • 7” diagonal, 16:9, 1024x600 Resolution
  • Viewing angles: 75/75/70/70
  • Contrast ratio: 700:1
  • Luminance, White: 250 CD/m2
  • Capacitive 5 point touch panel
  • Windows and Linux HID support (MAC coming soon)
  • Rear 4 point mounting for secure installation
  • Employs DisplayLinkTM technology that provides video, touch, and power over a single USB connection (UM-760C-OF) or HDMI (UM-760CH-OF)
  • Ultra-light, weighs less than 1 pound
  • Secondary-customer facing display in retail POS environments, information kiosks, hospitality, and gaming and just a few of the possible applications
  • As with all our monitors, the Mimo 760C-OF is compatible with Windows 7, 8, 10, Linux, and Mac OS. Note to Mac OS users: requires additional purchase of $35 driver to activate touchscreen capability
  • Mechanical drawings available upon request
Manufacturer PDFs

leaflet

7" Open Frame USB Capacitive Touch Display, 1024x600, 250cd/m2

Open Frame 7” USB Capacitive Touch Screen Monitor
The UM-760C-OF adds capacitive touch technology to Mimo’s line of 7-inch open frame displays. The UM-760C-OF is a 7” small capacitive open frame touchscreen monitor, enabling easy integration into custom enclosures or other equipment for a range of applications. This small touchscreen display monitor sacrifices nothing in slick design, but now has the added responsiveness of a 5 point multi-touch capacitive touchscreen integrated in a rugged, durable molded metal product cycle-enclosure. No external changes are needed when it comes time to phase in future generation panels. The UM-760C-OF open frame touchscreen monitor delivers the most cost-effective solution for applications such as hospitality, retail, trade shows, gaming, light industrial automation, and much more.

Video, Touch, and Power Via Single USB Connection
Utilizing the same single cable USB display technology found on our line of displays, the UM-760C-OF 7-inch touch screen monitor with HDMI delivers video, touch, and power over a single USB connection. No more cluttered connections or the inconvenience of connecting AC power to your wall or desk-mounted touch screen monitor.

USB Extender
Our plug-and-play USB extender adapter ensures that you can take full advantage of a desk mount or wall mounted USB display no matter the distance from your computer device. Tested to work with all Mimo USB displays and compatible with many third-party models, the Mimo USB extenders delivers USB power over a Cat 5e extension link (Power over Twisted Pair) to the remote hub directly from the source side. This simple device simplifies installation and eliminates the need for AC power close to your table or wall installation.

Mimo

Mimo Monitors UM-760C-OF Signage Display 17.8 cm (7") LCD 250 cd/m² Black Touchscreen

$372
7" Open Frame USB Capacitive Touch Display, 1024x600, 250cd/m2

Open Frame 7” USB Capacitive Touch Screen Monitor
The UM-760C-OF adds capacitive touch technology to Mimo’s line of 7-inch open frame displays. The UM-760C-OF is a 7” small capacitive open frame touchscreen monitor, enabling easy integration into custom enclosures or other equipment for a range of applications. This small touchscreen display monitor sacrifices nothing in slick design, but now has the added responsiveness of a 5 point multi-touch capacitive touchscreen integrated in a rugged, durable molded metal product cycle-enclosure. No external changes are needed when it comes time to phase in future generation panels. The UM-760C-OF open frame touchscreen monitor delivers the most cost-effective solution for applications such as hospitality, retail, trade shows, gaming, light industrial automation, and much more.

Video, Touch, and Power Via Single USB Connection
Utilizing the same single cable USB display technology found on our line of displays, the UM-760C-OF 7-inch touch screen monitor with HDMI delivers video, touch, and power over a single USB connection. No more cluttered connections or the inconvenience of connecting AC power to your wall or desk-mounted touch screen monitor.

USB Extender
Our plug-and-play USB extender adapter ensures that you can take full advantage of a desk mount or wall mounted USB display no matter the distance from your computer device. Tested to work with all Mimo USB displays and compatible with many third-party models, the Mimo USB extenders delivers USB power over a Cat 5e extension link (Power over Twisted Pair) to the remote hub directly from the source side. This simple device simplifies installation and eliminates the need for AC power close to your table or wall installation.
