Wiremold  |  SKU: WM-433DR

433DR

DataVisual Ottawa - Sold Out - Available to Order!
2210 Thurston Drive Ottawa, Ontario K1G 6E1
8882949889
DataVisual Calgary - Sold Out - Available to Order!
5233 52 St. SE Calgary, Alberta T2C 4T2
+18882949889
  • Flush activation assemblies Aesthetically pleasing fittings with low profile connections for power
  • Flush plates provide ease of connection. Saves time and money. The preset and cover replace the need for a handy box to make conduit connections or splicing connections
  • Wide Range of activations Whatever the requirement, there are several options to choose from without compromising aesthetics, functionality, or durability
  • Flush flanges and covers match Walker Floor Boxes. When products are installed in the same area, they offer a uniform apearance
Manufacturer PDFs

leaflet

manual pdf

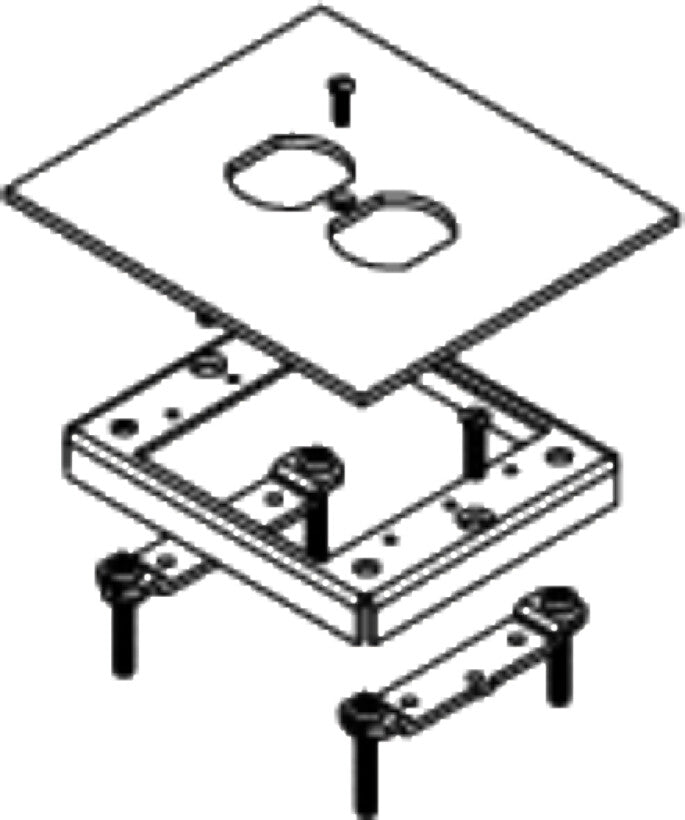

Flush Carpet Trim Plate

Single or double duplex opening with finishing plate. Oversized plate covers flush plate and carpet edges. Finishing plate is 4 3/4'' x 5 3/8'' (121mm x 137mm). Flush plate is 3 7/8'' x 4 5/8'' (98mm x 117mm). NOTE: A minimum 1 1/2'' preset or afterset is required on Pro Series Underfloor Duct to support standard duplex receptacles and communication devices when using flush activations. The 1'' preset or afterset should be specified for pedestal style fittings or when cabling will be pulled through the activation point.

Wiremold

433DR

Flush Carpet Trim Plate

Single or double duplex opening with finishing plate. Oversized plate covers flush plate and carpet edges. Finishing plate is 4 3/4'' x 5 3/8'' (121mm x 137mm). Flush plate is 3 7/8'' x 4 5/8'' (98mm x 117mm). NOTE: A minimum 1 1/2'' preset or afterset is required on Pro Series Underfloor Duct to support standard duplex receptacles and communication devices when using flush activations. The 1'' preset or afterset should be specified for pedestal style fittings or when cabling will be pulled through the activation point.

View product
