Wiremold | SKU:
WM-EHWB8-WH
WIREMOLD EHWB8-WH outlet box White
- Available in both 4- and 8-gang versions to provide maximum flexibility
- Built-in tunnel & feed through capability allows service feeds to be fed through the box, reducing the number f feeds required to reduce installation time

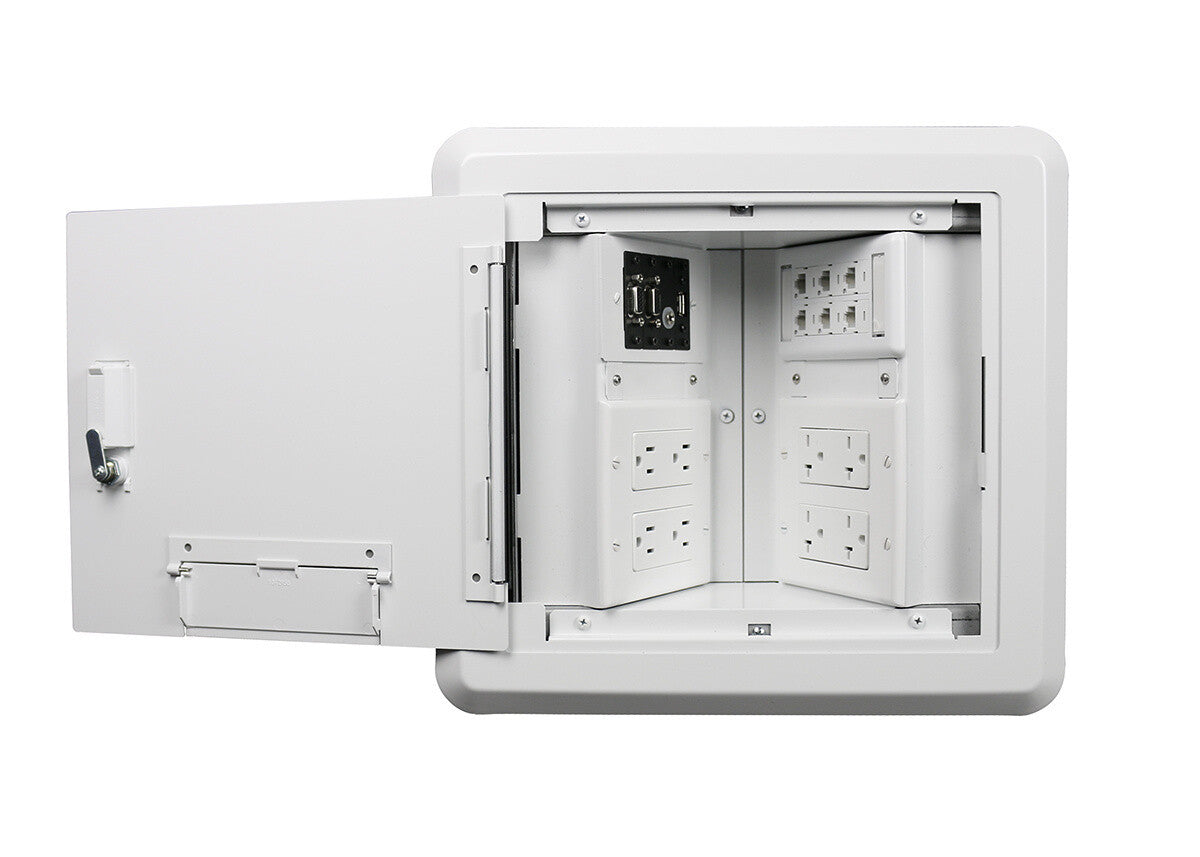

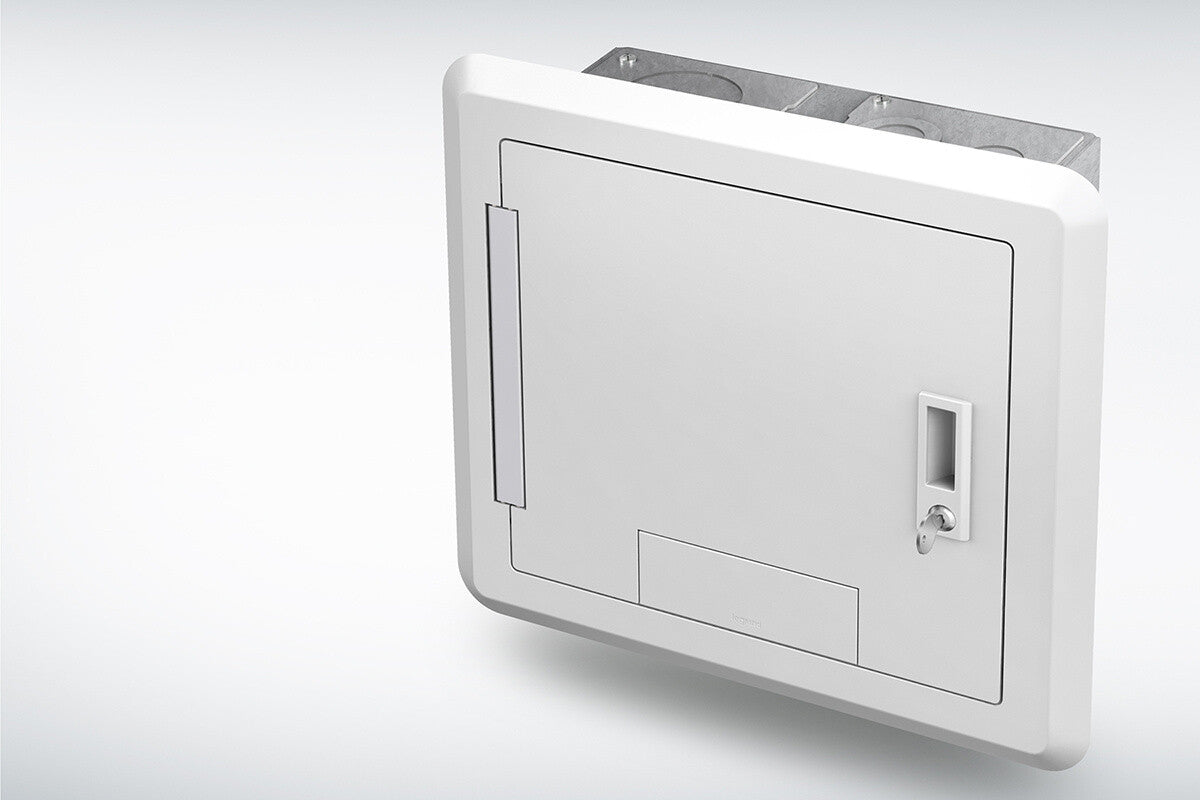

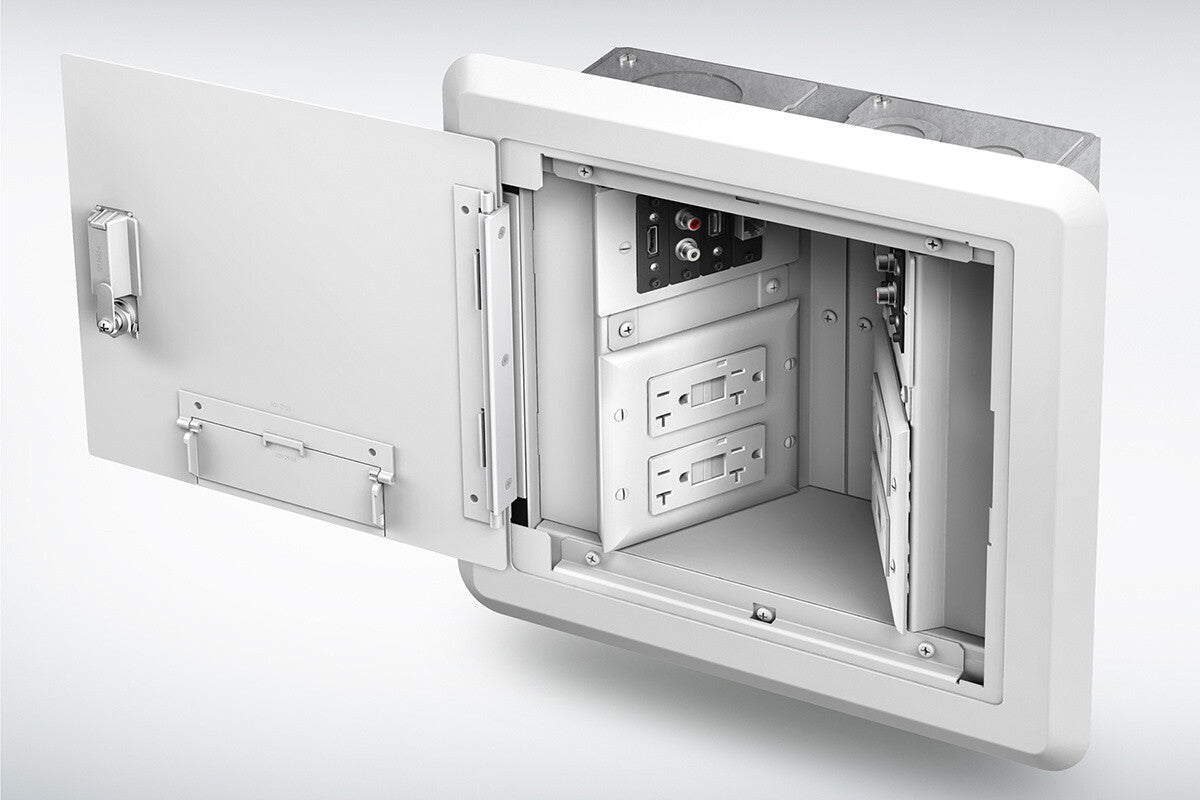

- Cover opens a full 180° and can be painted to blend with room decor. Includes integrated handle, lock and key set for security, and flush egress door for cabling
- Designed to accept standard 1- to 4-gang device plates. No proprietary plates simplifies ordering and installation
- Accepts Legrand AVIP devices, plus A/V devices from leading manufacturers
- 3 5/8'' [92mm] of space behind device plates provides the extra depth needed for wiring larger A/V devices
- Accepts trade size service feeds from 3/4'' up to 2''. Knockout plates are removable and interchangeable, providing multiple options

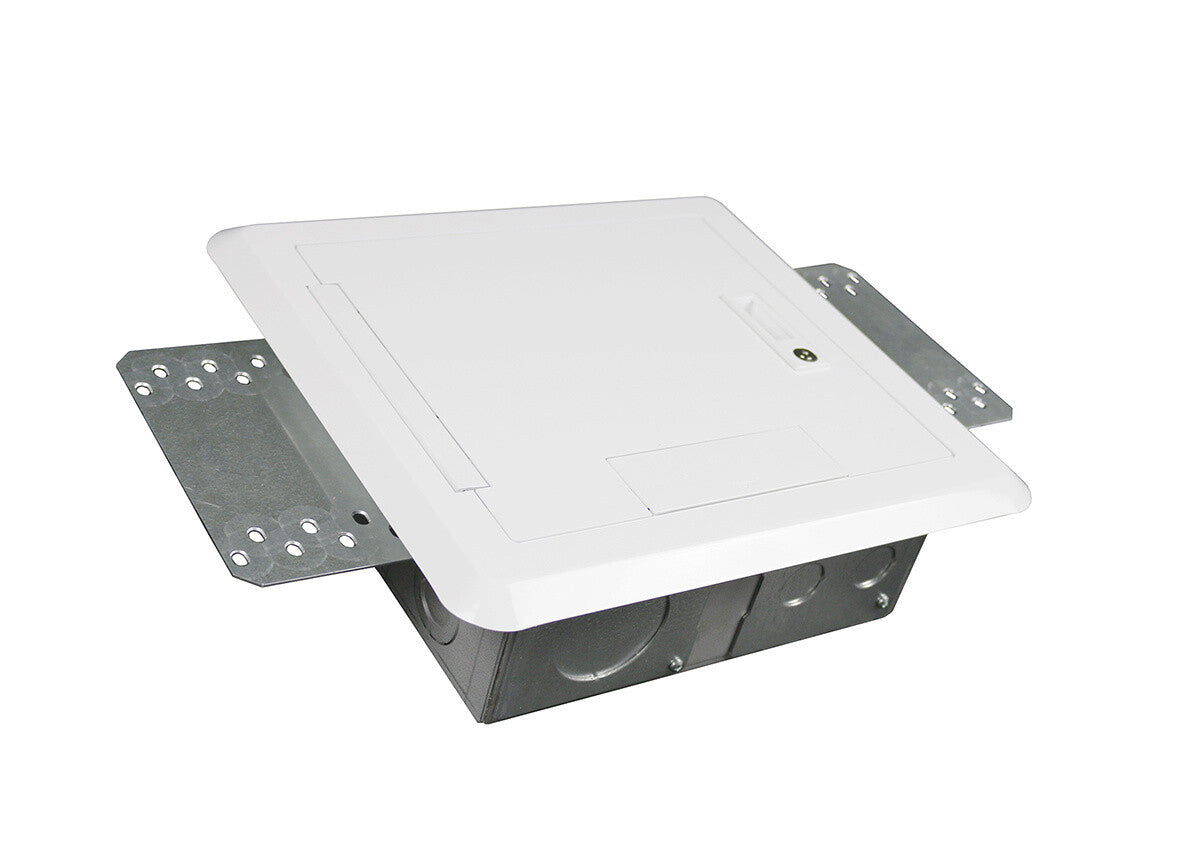

- Can be installed in new work and old work installations. New hardware not necessary
- Both boxes (4- and 8-gang) fit are designed to fit in 16'' opening between studs in standard 2'' x 4'' [51mm x 102mm] wall
- UL Listed to U.S. and Canadian safety standards
- Finished interior eliminates industrial look for upscale installations, while increasing visibility, making it easier to locate
- This product meets the material restrictions of RoHS
Manufacturer PDFs
WIREMOLD EHWB8-WH outlet box White
$619
Evolution Series 8-Gang Hinged Wall Box
Designed to fit into the 16'' on center (406mm) opening between studs in a standard 2''x 4'' (51mm x 102mm) wall. For both new work and old work applications. The box has two (2) 4-gang standard NEMA size openings and designed to accommodate power, communications, and A/V devices. Each box
-
