Wiremold  |  SKU: WM-EHWB8-BK

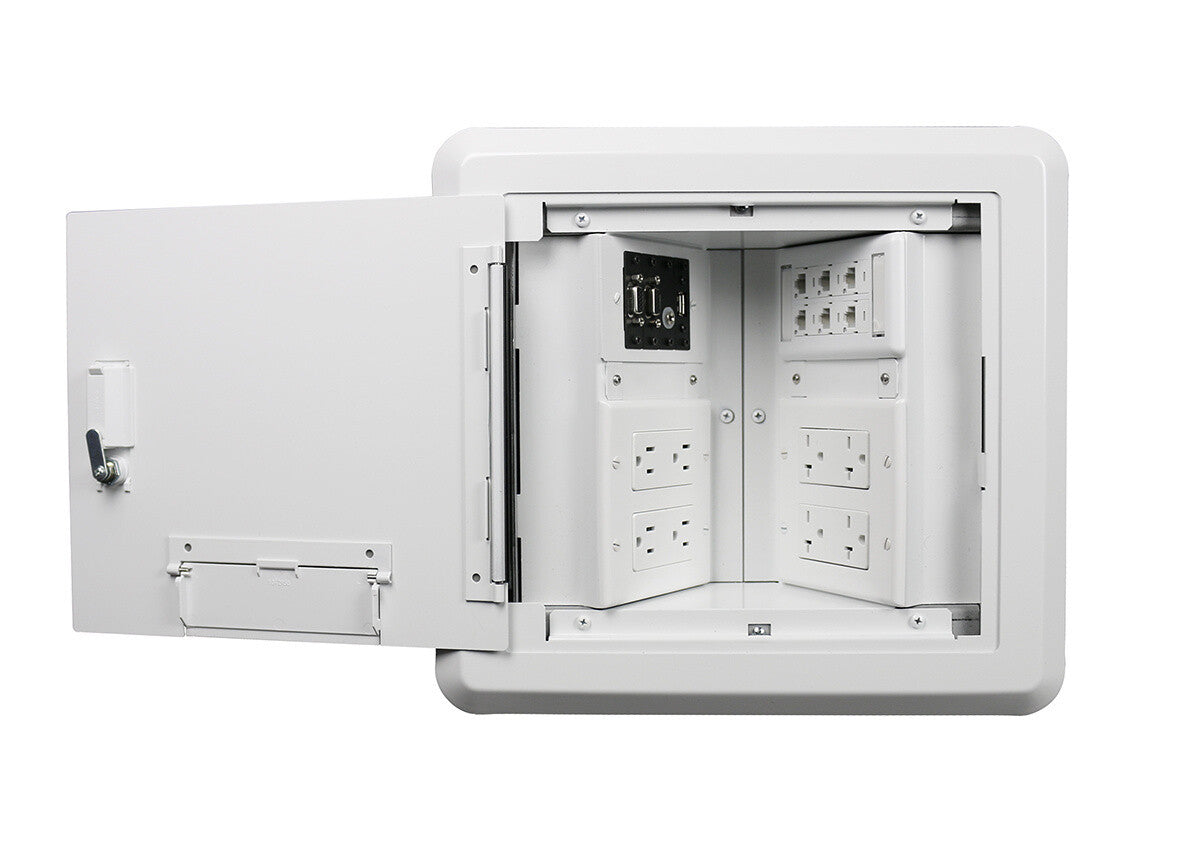

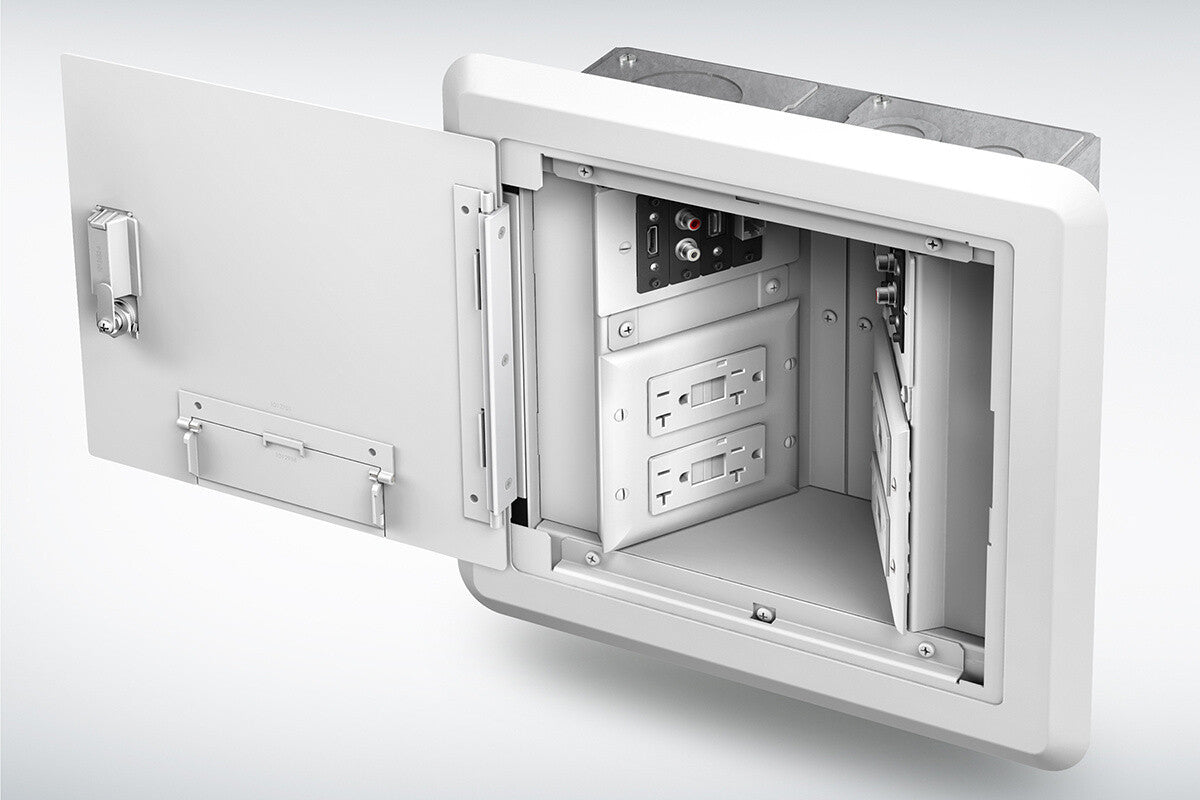

WIREMOLD EHWB8-BK outlet box White

  • Available in both 4- and 8-gang versions to provide maximum flexibility
  • Built-in tunnel & feed through capability allows service feeds to be fed through the box, reducing the number f feeds required to reduce installation time

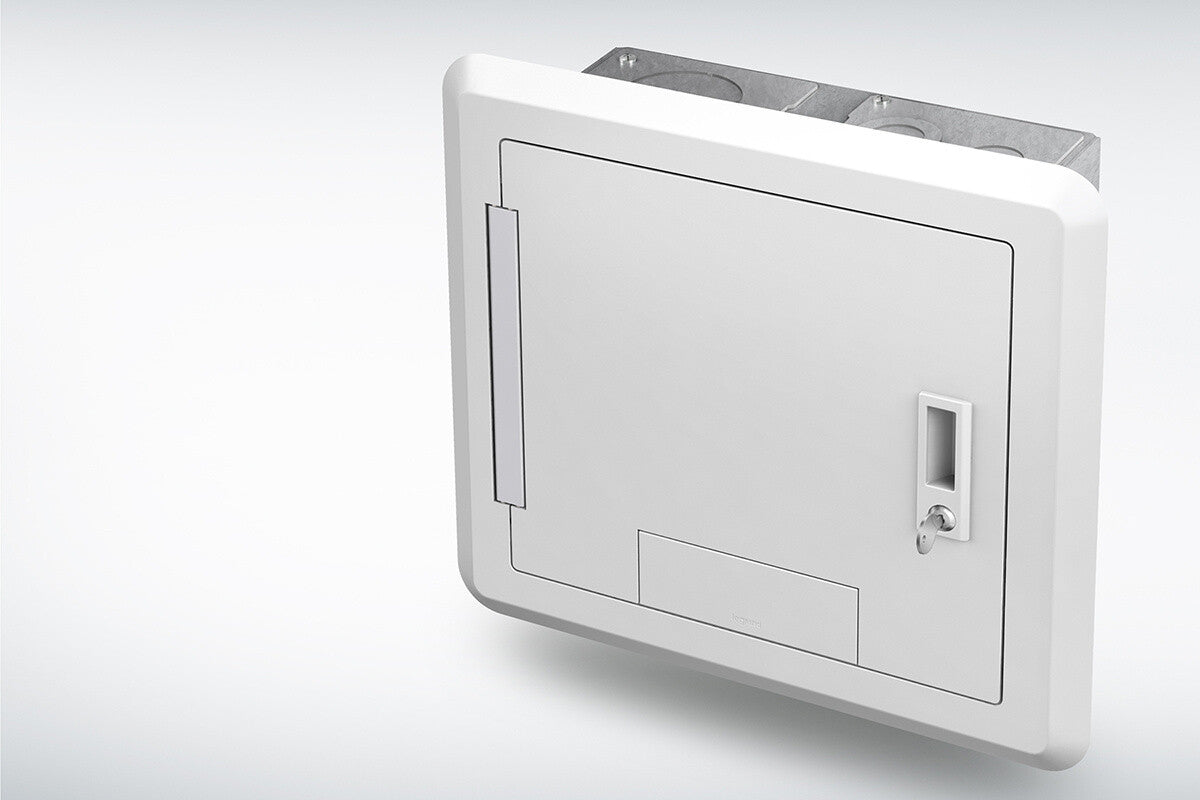

  • Cover opens a full 180° and can be painted to blend with room decor. Includes integrated handle, lock and key set for security, and flush egress door for cabling
  • Designed to accept standard 1- to 4-gang device plates. No proprietary plates simplifies ordering and installation
  • Accepts Legrand AVIP devices, plus A/V devices from leading manufacturers
  • 3 5/8'' [92mm] of space behind device plates provides the extra depth needed for wiring larger A/V devices
  • Accepts trade size service feeds from 3/4'' up to 2''. Knockout plates are removable and interchangeable, providing multiple options
  • Can be installed in new work and old work installations. New hardware not necessary
  • Both boxes (4- and 8-gang) fit are designed to fit in 16'' opening between studs in standard 2'' x 4'' [51mm x 102mm] wall
  • UL Listed to U.S. and Canadian safety standards
  • Finished interior eliminates industrial look for upscale installations, while increasing visibility, making it easier to locate
  • This product meets the material restrictions of RoHS
Manufacturer PDFs

leaflet

Evolution Series 8-Gang Hinged Wall Box

Designed to fit into the 16'' on center (406mm) opening between studs in a standard 2''x 4'' (51mm x 102mm) wall. For both new work and old work applications. The box has two (2) 4-gang standard NEMA size openings and designed to accommodate power, communications, and A/V devices. Each box includes tunnel that allows wiring compartments on both sides of the box to be fed with a single conduit, reducing time and construction cost. The box has been designed with a cable pass through capability allowing multiple service points to be daisy chained together, eliminating the need for multiple conduit runs. Box includes temporary cover. Finished cover assembly (EHWBC) sold separately.>

Wiremold

WIREMOLD EHWB8-BK outlet box White

$619
Evolution Series 8-Gang Hinged Wall Box

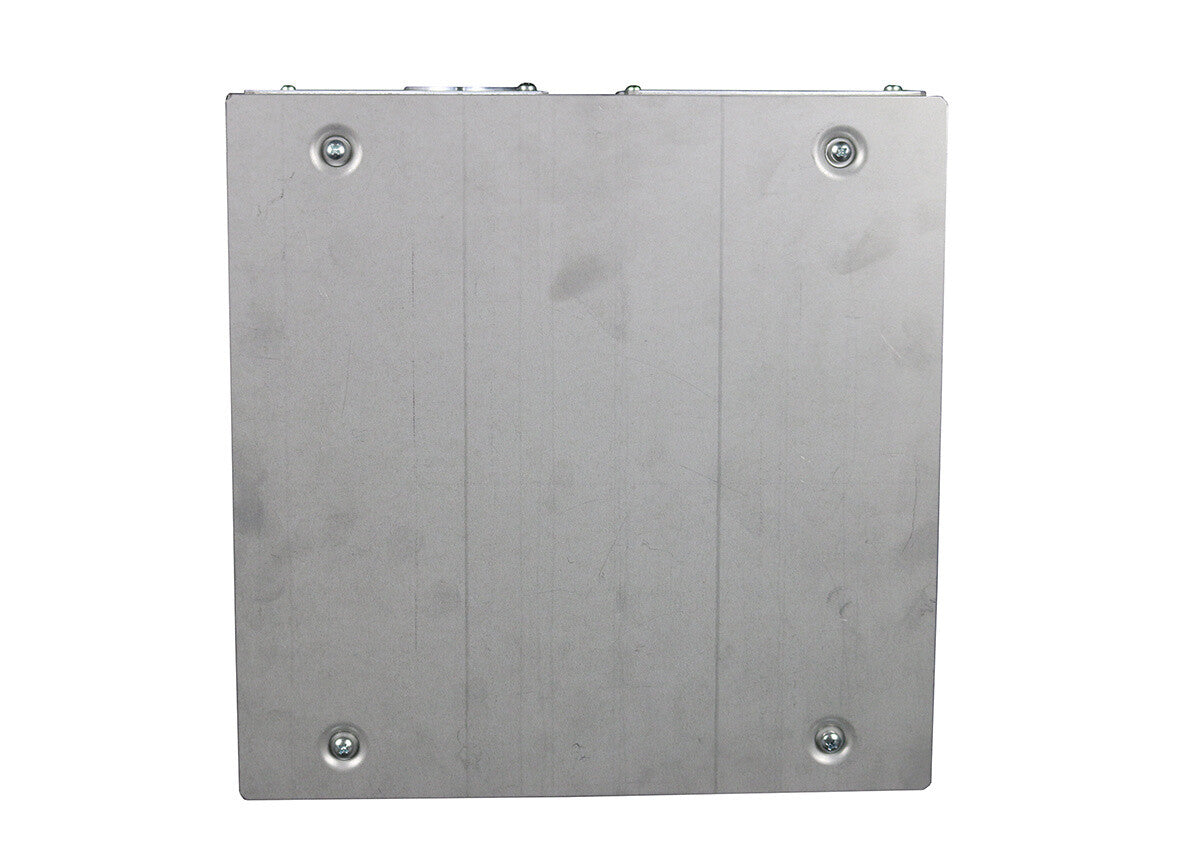

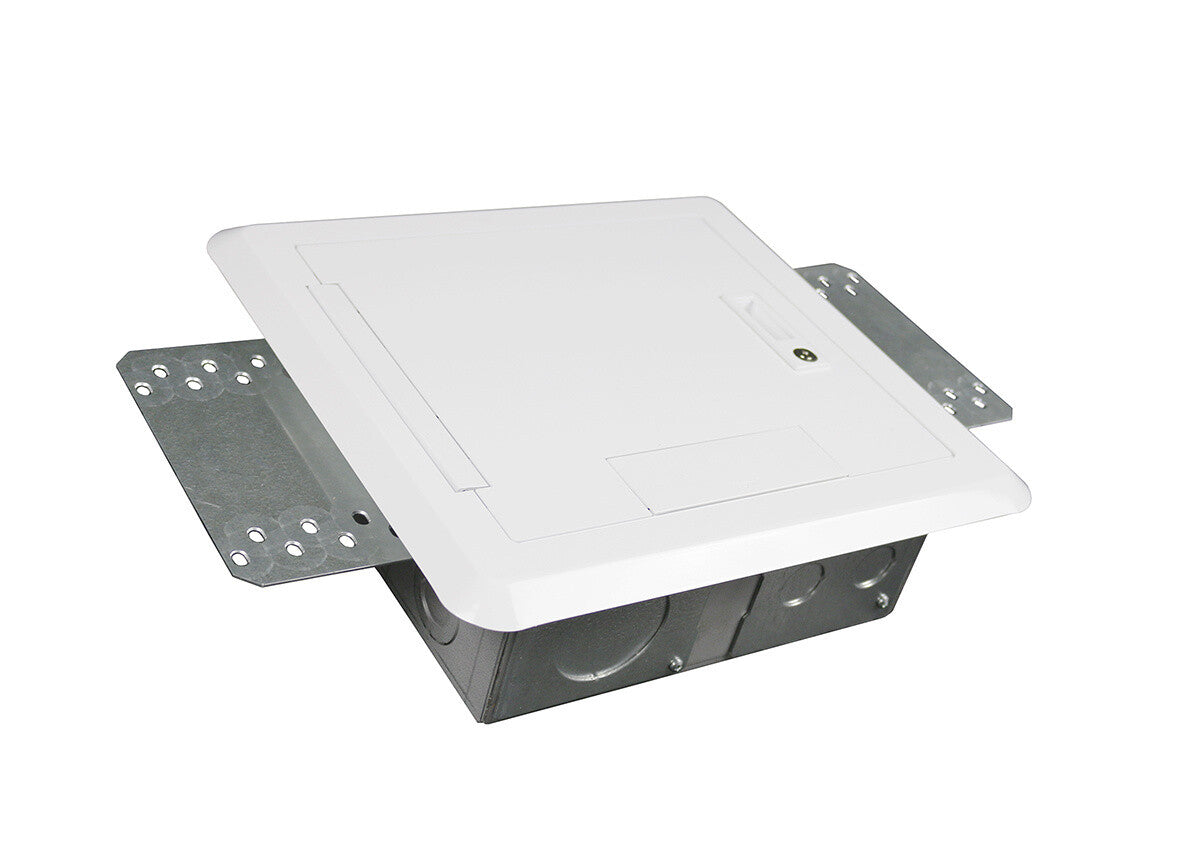

Designed to fit into the 16'' on center (406mm) opening between studs in a standard 2''x 4'' (51mm x 102mm) wall. For both new work and old work applications. The box has two (2) 4-gang standard NEMA size openings and designed to accommodate power, communications, and A/V devices. Each box includes tunnel that allows wiring compartments on both sides of the box to be fed with a single conduit, reducing time and construction cost. The box has been designed with a cable pass through capability allowing multiple service points to be daisy chained together, eliminating the need for multiple conduit runs. Box includes temporary cover. Finished cover assembly (EHWBC) sold separately.>
