HDL310 audio conferencing system - White

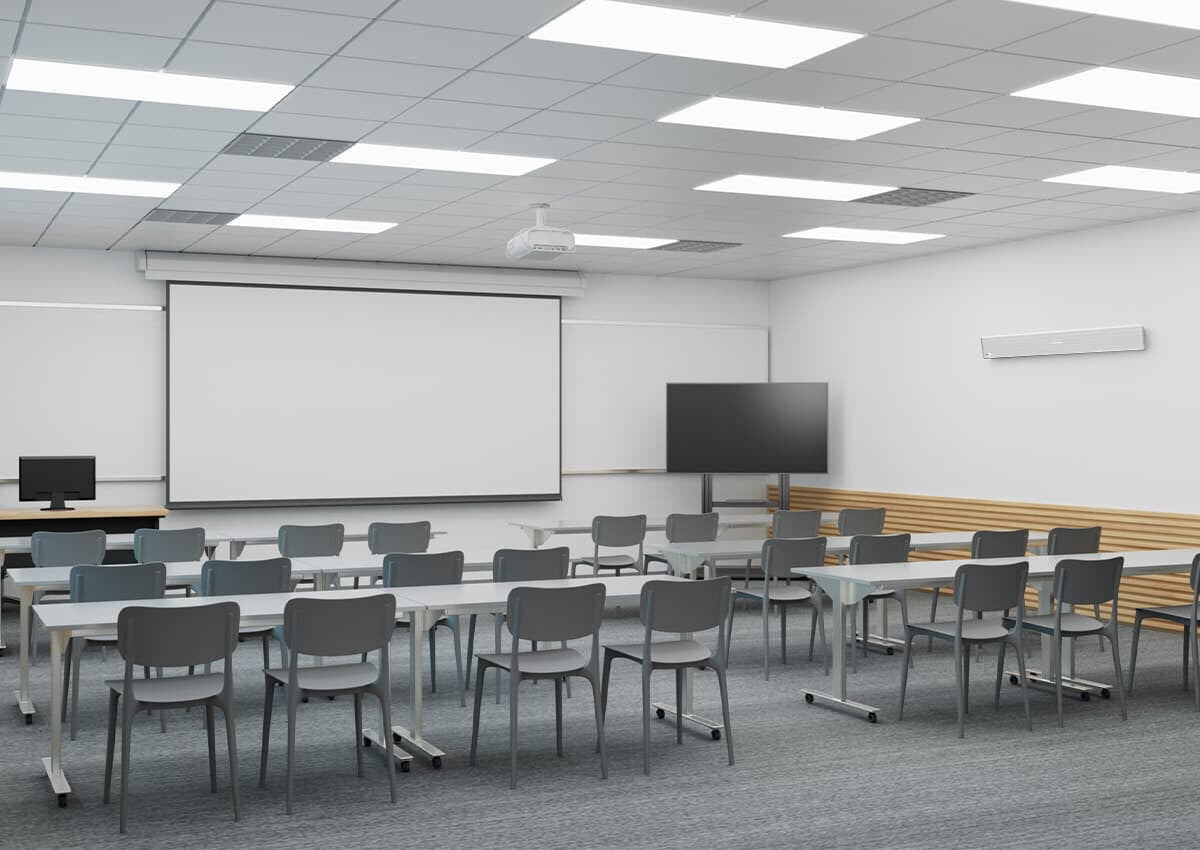

Discover the simple and scalable way to get pro AV performance in large spaces up to 30' x 30' (9.1 x 9.1 m). The HDL310 is your no-compromise alternative to all-in-one sound bars that have limited microphone pickup range and custom AV systems that are costly and complex.

Powering the HDL310 system is patented Microphone Mist technology, the breakthrough that audio conferencing has been waiting for. It fills rooms with thousands of virtual microphones so people’s voices are picked up everywhere. And because the HDL310 has greater processing power and expanded memory, you unlock even more advanced audio capabilities within the technology.

Technology features

• Advanced Microphone Mist technology processing platform
• Continuous autocalibration

• Position-based gain control

• Acoustic echo cancellation

• Built-in sound masking

• Plug and play, no software or drivers required

• Single Ethernet cable to microphone and speaker bar

• Primary audio source for video playback

• Integrated, multicolor status LED


Microphones

• 12 low-noise omnidirectional MEMS
• Frequency response at 94 dB SPL 100 Hz to 7 kHz
• Total harmonic distortion (THD) 0.25% (typical)


Speakers

• 2 x 20 W 4" aluminum cone
• Acoustic output (hardware capable): 91 dB SPL @ 1 m
• Total harmonic distortion (THD) 0.25% (typical)

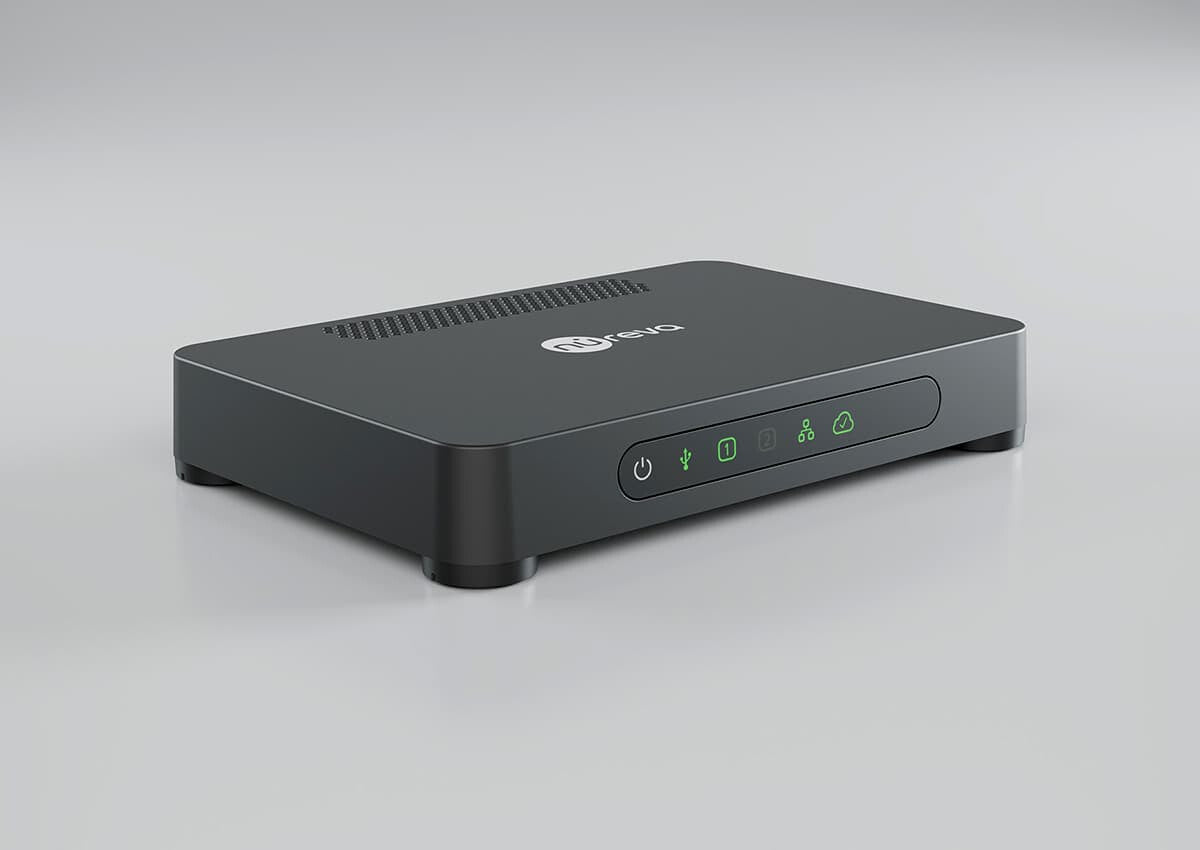

 CONNECT MODULE

• USB 2.0 interface to computer or collaboration hub, type B
• Auxiliary out — 3.5 mm single-ended stereo jack
• Auxiliary in — 3.5 mm single-ended stereo jack
• 2 connections to microphone and speaker bar RJ45
• Console Direct RJ45 for connecting to network
• Input jack for power supply

INCLUDES

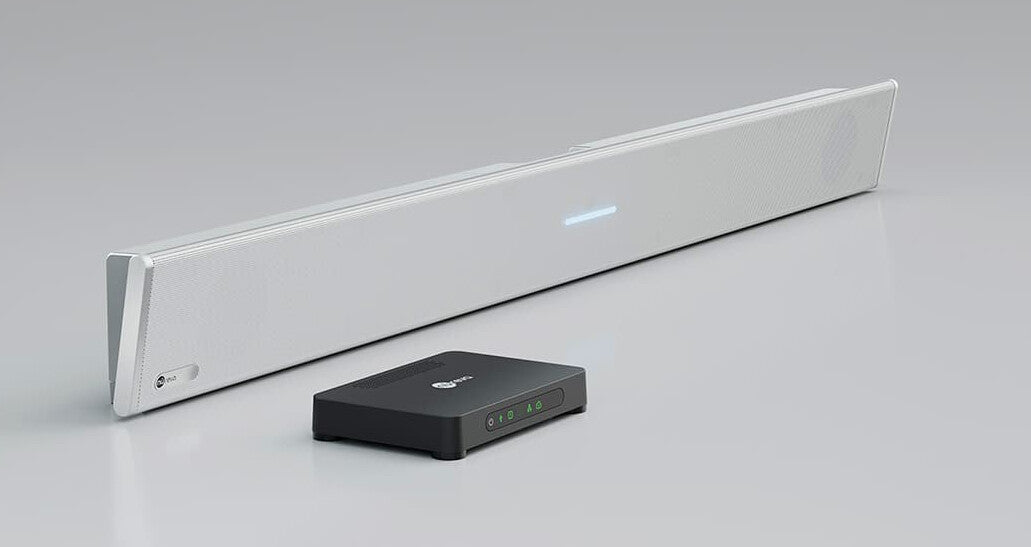

Integrated microphone and speaker bar
Connect module, dark gray
Connect module mounting bracket, dark gray
Country specific power cable, 6' (2.5 m), black
Ethernet cable, CAT6 SSTP, 50' (15 m), Class 3 rated, black
USB Type A-B cable, 10' (3 m), VW-1 rated, black
Infrared remote with 2 AAA batteries
Documentation
