Netgear  |  SKU: NT-CSM4532-100NAS

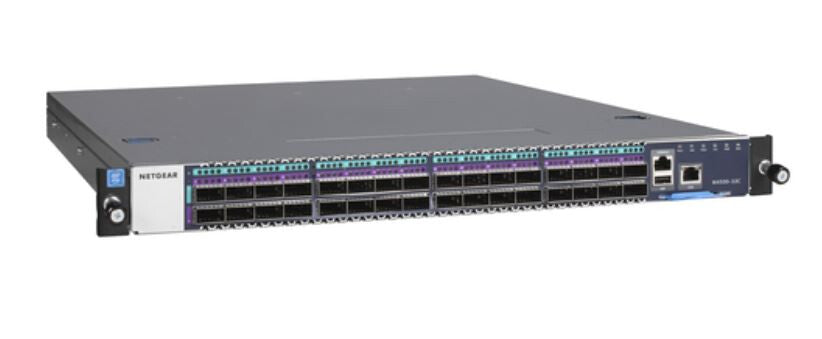

NETGEAR M4500-32C Managed L2/L3/L4 1U Black

  • The M4500-32C switch provides 32-port QSFP28 (40G, 50G and 100G fiber)
  • With 6.4Tbps non-blocking fabric and 2Bpps forwarding rate, M4500-32C delivers L2/L3/L4 and IPv4/IPv6 rich services for Professional AV-over-IP installations (SDVoE-ready certified)
  • Two modular power supplies are pre-installed for 1+1 power redundancy
  • Six modular fan trays are pre-installed for 4+2 fan redundancy
  • Line-rate spine and leaf topologies with the M4500-48XF8C (32-port SFP28 and 8-port QSFP28)
  • Layer 3 feature set includes static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite and PIM
  • Enhanced IGMP+ implementation for plug & play multicast at Layer 2 between M4300/M4500 switches
M4500-32C 32 ports 1x100G; 1x50G; 1x40G; 4x25G; 4x10G, RJ45 RS232, USB

The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.

Netgear

NETGEAR M4500-32C Managed L2/L3/L4 1U Black

$22,904
M4500-32C 32 ports 1x100G; 1x50G; 1x40G; 4x25G; 4x10G, RJ45 RS232, USB

The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.
