Netgear  |  SKU: NT-XSM4316PA-100NES

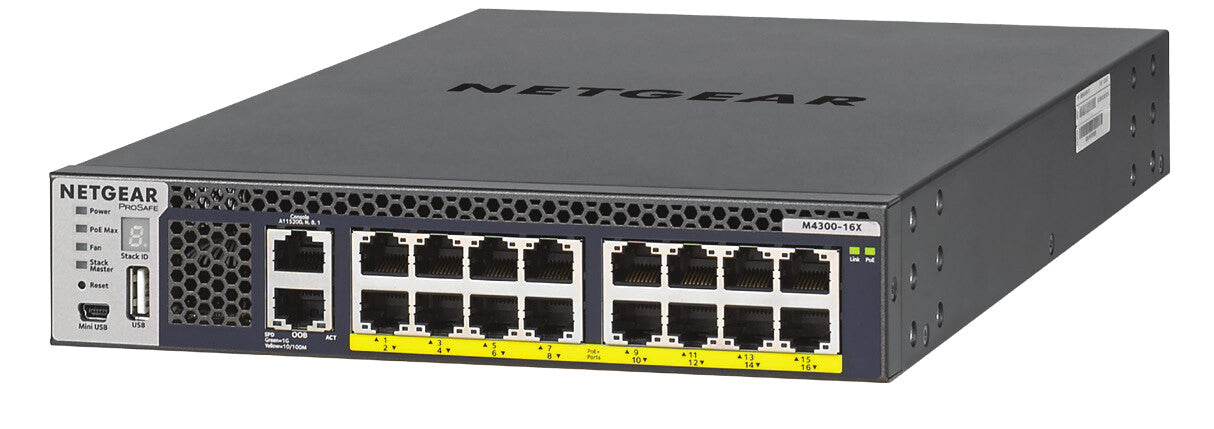

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

  • 16-port 100M/1G/2.5G/5G/10GBASE-T with PoE+ (copper RJ45)
  • 320Gbps non-blocking fabric across 16 ports
  • Out-of-band 1G Ethernet management port
  • Mini-USB and RJ45 RS232 console ports and USB storage port
  • Full L3 feature set and non-stop forwarding (NSF) stacking
  • Half-width form factor with one- and two-unit rack mount kit
  • Two half-width switches can be installed in a single rack space for redundant top-of-rack

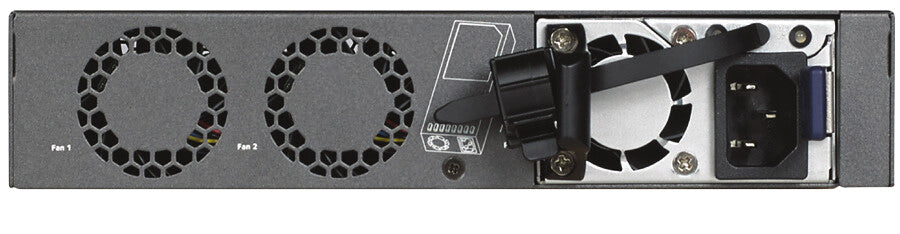

  • Ships with one modular APS299W PSU in its power supply slot
  • Low acoustics (36dB with APS299W, 35dB with APS600W, @25°C / 77°F )
Manufacturer PDFs

leaflet

manual pdf

M4300-16X, 320 Gbps, 238 Mpps, 16x 100/1000/2.5/5/10GBASE-T RJ-45, PoE+, 299W PSU, 212x44x345 mm

The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.

Netgear

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

$3,002
M4300-16X, 320 Gbps, 238 Mpps, 16x 100/1000/2.5/5/10GBASE-T RJ-45, PoE+, 299W PSU, 212x44x345 mm

The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
