Middle Atlantic | SKU:
MA-AX-SXR-39

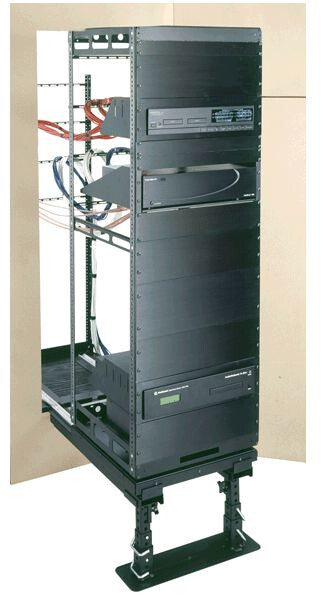

Middle Atlantic Products AX-SXR, 31" x 20", 39U Wall mounted rack Black
- Unique interlocking corner joint for exceptional strength and easy assembly
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Service tracks include built-in level to save time
- Removable rack frame can be integrated off-site to save time
- Includes cable management system for effective cable management
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
- Service tracks and stands sold separately
Manufacturer PDFs
Middle Atlantic Products AX-SXR, 31" x 20", 39U Wall moun...
$2,655
Rotating AXS System for Millwork and In-Wall, 31" Extension Length x 20" Frame Depth, 39 spaces
Provides Enhanced Rear Access to Equipment and Cabling
- Slide Out rack frame rotates for equipment servicing
- Simplifies installation of larger electronics systems in cabinet
- Frame heights range from 15 sp. (26-1/4") to 43 sp. (75-1/4")
- 20" useable depth
- 450 lb. weight capacity with proper weight distribution
- Integral cable management system provided
- Brush Gasket fills unsightly gaps that may appear between the rack and custom millwork (requires a rough-in width of 19-5/8")
- Guide Kit includes the Brush Gasket and helps center the rack while protecting millwork (requires a rough-in width of 19-5/8").
- Locks closed with included hardware
-
Type
