Lumens  |  SKU: LM-LC100NBundle51PNW

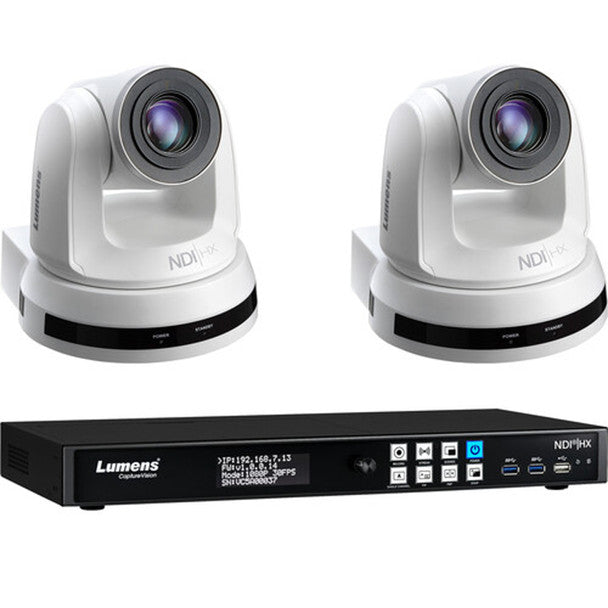

LC100N CaptureVision System and x2 VC-A51PNW Camera Bundle (White)

Lumens LC100N CaptureVision System 2-Channel HD Recorder/Processor/Encoder with NDI

Stream, record, and encode HDMI, 3G-SDI, and USB video using the LC100N CaptureVision System from Lumens and its NDI|HX input capabilities. The switcher has one HDMI and two 3G-SDI video inputs which supports 1080p60 video and one HDMI input which supports up to UHD 4K video. Two HDMI outputs and one HDMI pass-through output deliver your video to compatible sources of your choice or via NDI. Your program output and up to two individual inputs are recorded for simplified editing. This can be easily uploaded to your organization's Panopto, OpenCast, or Kaltura platform.

Stream your video via Ethernet and various protocols and store it in the system's built-in 2 TB HDD to revisit at a later date. Built-in control buttons and a status screen on the front panel allow you to switch between different display views and channels with ease. Two XLR/TRS combo inputs, as well as the Ethernet and USB ports, support a wide variety of audio sources. The system has an embedded WebGUI program and both RS-232 and RS-485 ports for serial control.

Features at a Glance

  • 2-channel media processing
  • Simultaneous recording and streaming
  • Supports RTSP and NDI|HX2 pull streaming protocol
  • Supports RTMP, RTMPS, MPEG-TS, SRT, TCP, UDP, and HTTP push streaming protocols
  • XLR combo inputs with +48V phantom power
  • Built-in 2 TB HDD storage
  • Compatible with Lumens IP PTZ/Box camera

NDI|HX Support: LC100N can receive multiple NDI streams at 1080p, enabling plug-and-play network production. The device can convert HDMI, SDI, and USB sources to NDI|HX, allowing the unit to be used as an IP encoder.

Onboard GUI Director: Live control is incorporated into the device, simply plug in an HDMI display to the device output to access the intuitive GUI. Sessions can be produced live or scheduled in advance.

Pre-Defined Scenes: Build layout scenes that incorporate visual effects like split-screen, picture-in-picture, title/logo overlays, and background images. Activate and change layouts.

Program and ISO Recording: The LC100 records the mixed program-out video and captures two video inputs with independent audio for simplified archiving and post-production workflow.

Deployment Software: The Lumens deployment software enables control, management, and administration of multiple units within a single network. Remotely monitor device status.

Intermission Scene and Chapter Marker: If you need a break during streaming, toggle the break time page while simultaneously setting a chapter mark to jump to a particular timestamp during playback.

Lumens VC-A51PN 1080p60 PTZ Camera with NDI HX and 20x Optical Zoom (Black)

Integrate the black Lumens VC-A51PN 1080p60 PTZ Camera with NDI|HX and 20x optical zoom into your AV broadcast or IP live production setup for distribution and control over Ethernet network connection. Efficiently capture your next conference or live performance with simultaneous 3G-SDI, HDMI, and NDI video outputs. A 1/2.8" CMOS sensor adds a wide dynamic range, 3D noise reduction, advanced autofocus, and auto white balance to your broadcast. Stream 1080p60 video with low latency to platforms like YouTube, Twitch, or Facebook without the need for additional hardware or software.

Control over the 20x optical zoom and pan and tilt movements can be achieved via NDI tools or hardware controllers thanks to the camera's RS-232, RS-422, and IP serial control compatibility. The device can be powered through Ethernet connection via PoE+ or via the DC input for flexible installation in your preexisting workflow.

Camera Control

  • RS-232 and RS-422 support allows for connection to a wide range of products
  • NDI, VISCA, VISCAIP, PELCO-D, and ONVIF protocols
  • Supports IR remote control
Lumens

LC100N CaptureVision System and x2 VC-A51PNW Camera Bundle (White)

$13,352

Lumens LC100N CaptureVision System 2-Channel HD Recorder/Processor/Encoder with NDI

Stream, record, and encode HDMI, 3G-SDI, and USB video using the LC100N CaptureVision System from Lumens and its NDI|HX input capabilities. The switcher has one HDMI and two 3G-SDI video inputs which supports 1080p60 video and one HDMI input which supports up to UHD 4K video. Two HDMI outputs and one HDMI pass-through output deliver your video to compatible sources of your choice or via NDI. Your program output and up to two individual inputs are recorded for simplified editing. This can be easily uploaded to your organization's Panopto, OpenCast, or Kaltura platform.

Stream your video via Ethernet and various protocols and store it in the system's built-in 2 TB HDD to revisit at a later date. Built-in control buttons and a status screen on the front panel allow you to switch between different display views and channels with ease. Two XLR/TRS combo inputs, as well as the Ethernet and USB ports, support a wide variety of audio sources. The system has an embedded WebGUI program and both RS-232 and RS-485 ports for serial control.

Features at a Glance

NDI|HX Support: LC100N can receive multiple NDI streams at 1080p, enabling plug-and-play network production. The device can convert HDMI, SDI, and USB sources to NDI|HX, allowing the unit to be used as an IP encoder.

Onboard GUI Director: Live control is incorporated into the device, simply plug in an HDMI display to the device output to access the intuitive GUI. Sessions can be produced live or scheduled in advance.

Pre-Defined Scenes: Build layout scenes that incorporate visual effects like split-screen, picture-in-picture, title/logo overlays, and background images. Activate and change layouts.

Program and ISO Recording: The LC100 records the mixed program-out video and captures two video inputs with independent audio for simplified archiving and post-production workflow.

Deployment Software: The Lumens deployment software enables control, management, and administration of multiple units within a single network. Remotely monitor device status.

Intermission Scene and Chapter Marker: If you need a break during streaming, toggle the break time page while simultaneously setting a chapter mark to jump to a particular timestamp during playback.

Lumens VC-A51PN 1080p60 PTZ Camera with NDI HX and 20x Optical Zoom (Black)

Integrate the black Lumens VC-A51PN 1080p60 PTZ Camera with NDI|HX and 20x optical zoom into your AV broadcast or IP live production setup for distribution and control over Ethernet network connection. Efficiently capture your next conference or live performance with simultaneous 3G-SDI, HDMI, and NDI video outputs. A 1/2.8" CMOS sensor adds a wide dynamic range, 3D noise reduction, advanced autofocus, and auto white balance to your broadcast. Stream 1080p60 video with low latency to platforms like YouTube, Twitch, or Facebook without the need for additional hardware or software.

Control over the 20x optical zoom and pan and tilt movements can be achieved via NDI tools or hardware controllers thanks to the camera's RS-232, RS-422, and IP serial control compatibility. The device can be powered through Ethernet connection via PoE+ or via the DC input for flexible installation in your preexisting workflow.

Camera Control
