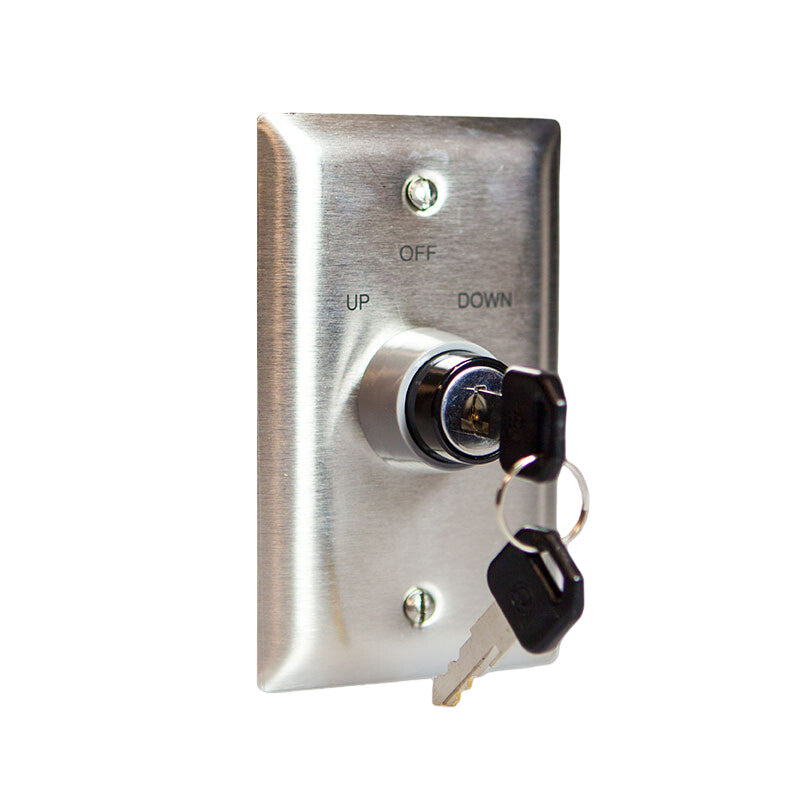

Draper  |  SKU: DR-121022

SP-KSM, 110 V

  • Includes 3-position key operator, momentary action
  • Cover plate dimensions: 2-3/4” (70 mm) x 4-1/2” (114 mm) fits single-gang box
  • Stainless steel cover plate
  • Two cam-operated, single-pole, single-throw (SPST) contact blocks (on-off)
  • Wired to emulate single-pole, double-throw (SPDT
  • Switch function: momentary action. Center off (on-off-on)
  • UL recognized, CSA recognized
Manufacturer PDFs

leaflet

3-position, key operated, stainless steel, two keys, 600 V

Where momentary spring-loaded action is required, the KS-3 replaces the standard 3-position key switch. The SP-KSM combines the “up” and “down” directional functions with the security of a key switch to provide limited screen access. It can be used for low-voltage contact closure or multiple switching. The SP-KSM ships standard with Scissor Lift, and is necessary to access Scissor Lift service positions.

Draper

SP-KSM, 110 V

$142
3-position, key operated, stainless steel, two keys, 600 V

Where momentary spring-loaded action is required, the KS-3 replaces the standard 3-position key switch. The SP-KSM combines the “up” and “down” directional functions with the security of a key switch to provide limited screen access. It can be used for low-voltage contact closure or multiple switching. The SP-KSM ships standard with Scissor Lift, and is necessary to access Scissor Lift service positions.
