Draper | SKU:
DR-121222

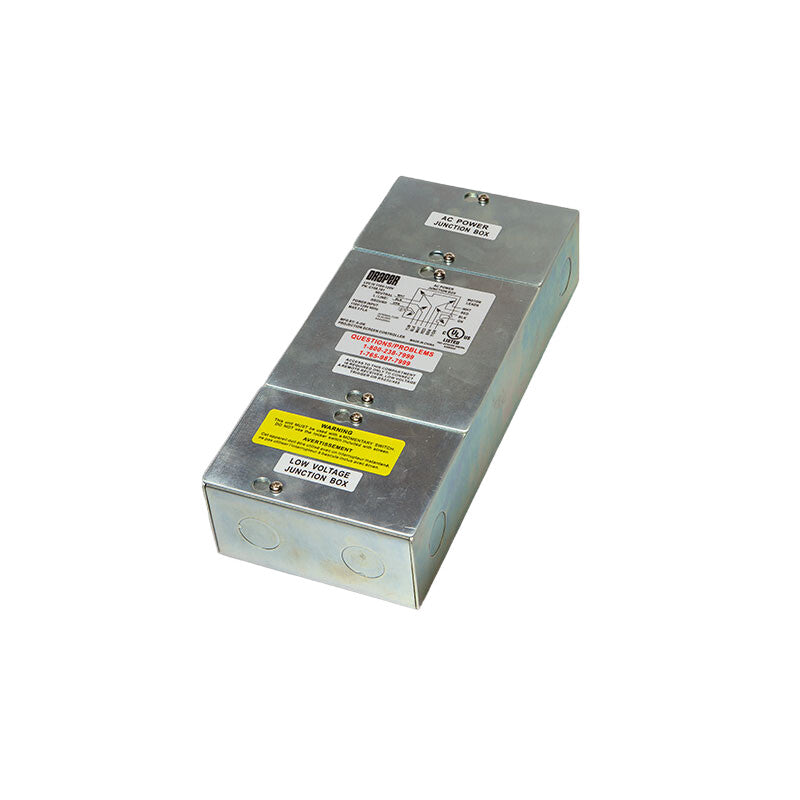

LVC-IV (Low-Voltage Control Module), 110 V
DataVisual Ottawa - In Stock - 3 available
2210 Thurston Drive Ottawa, Ontario K1G 6E1
8882949889
DataVisual Calgary - Sold Out - Available to Order!
5233 52 St. SE Calgary, Alberta T2C 4T2
+18882949889
- Kit includes one (1) LVC-IV control module
- Low-voltage options include: wall switch, “dry” contact closure, radio frequency (RF), infrared (IR), serial communication, or low-voltage relay (4V-28V)
- Built-in LVC-IV modules must be preordered. Module can be built into Access (Access Fit, Standard Access, and Access XL) V & E, Ultimate Access V & E, Ultimate Access XL V & E, Silhouette V & E, Premier, Targa, or Envoy
- Factory-installed controls will increase the length of the case in the Premier and Targa. If case length dimension is critical, contact Draper® for exact case length
- Control module is UL listed and housed in a 3-compartment, single box
Manufacturer PDFs
Wiring LVC-IV to AeroLift - Instructions
RF Remote Control Wiring - LVC-IV
LVC-IV (Low-Voltage Control Module), 110 V
$450
Low-Voltage Control Module, 110/120V
The LVC-IV (Low-Voltage Control Module) provides single 110V/220V motor control through a variety of low-voltage control options. The control module includes: 3-screw terminal block for a low-voltage “dry” contact wall switch, IR receiver jack, built-in RF receiver, two (2) RJ25 ports for RS232/RS485, low-voltage relay port with cable, and a user-serviceable 3.5 A fuse.
-
