Chief | SKU:
CF-AS3A101
New arrival

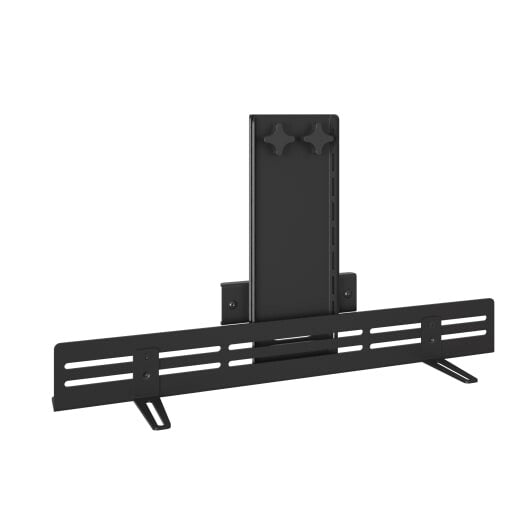

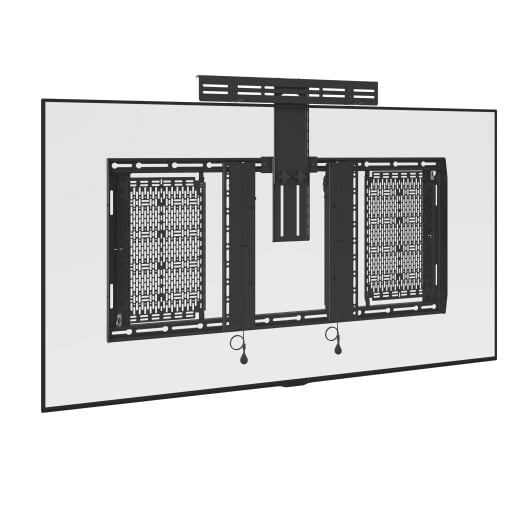

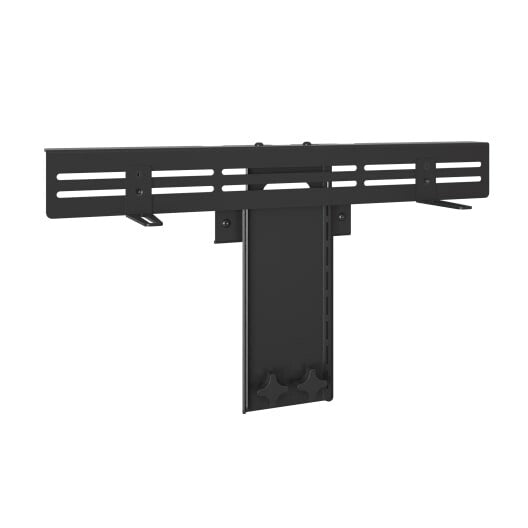

Chief Video-Sound Bar Mount for Tempo Flat Panel Wall Mount System

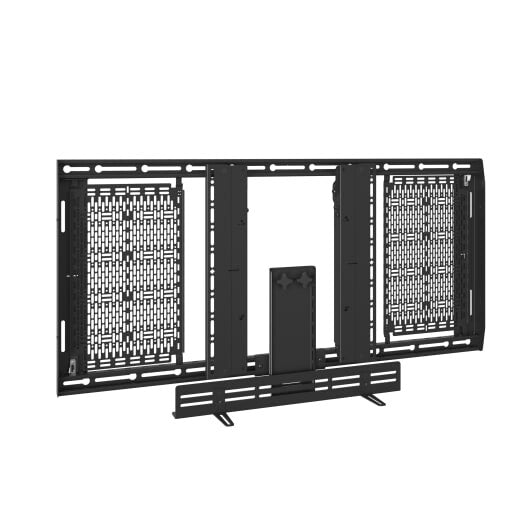

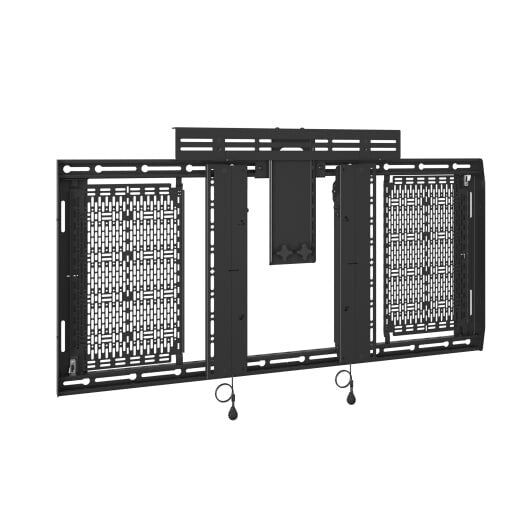

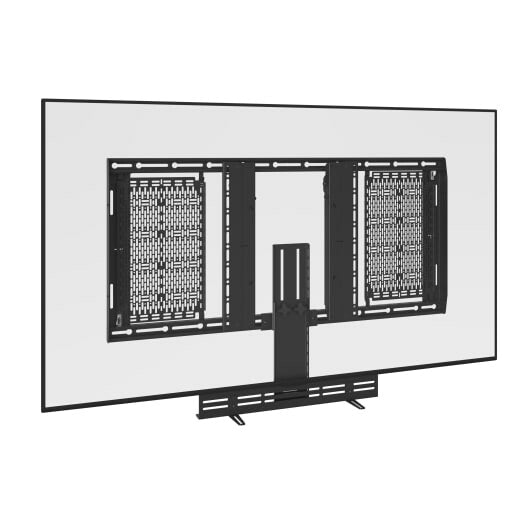

- Quick and easy installation. The video-sound bar mount glides and locks into place on the top or bottom rail of the Tempo FP Wall Mount System using strut channel nuts with captive screws
- Lateral shift allows you to position the video-sound bar mount wherever you need it along the wall plate mounting rail
- Toolless height-adjust knobs allow 6.27” (159 mm) of travel to easily position the camera shelf at the right height above or below the display
- Video-sound bar mount can be installed between 9.75” (248 mm) to 28.15” (715 mm) of Tempo FP Wall Mount System center line.*
- Window opening and slots along both sides of the vertical bracket facilitate cable management
- Weight capacity of 20 lbs (9 kg) with video-sound bars mounted to interface bracket. When using “L” brackets to mount a video-sound bar the weight capacity is 15 lbs (6.8 kg)

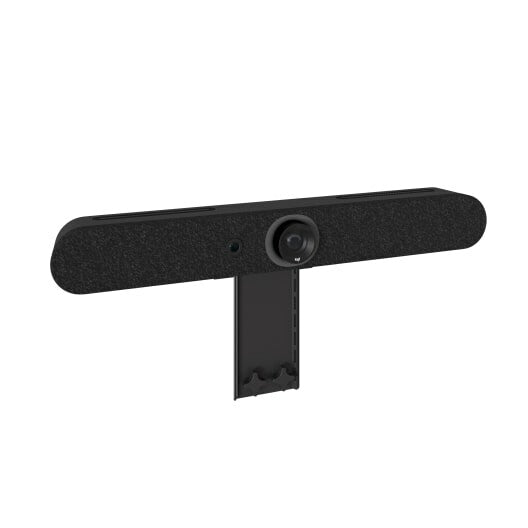

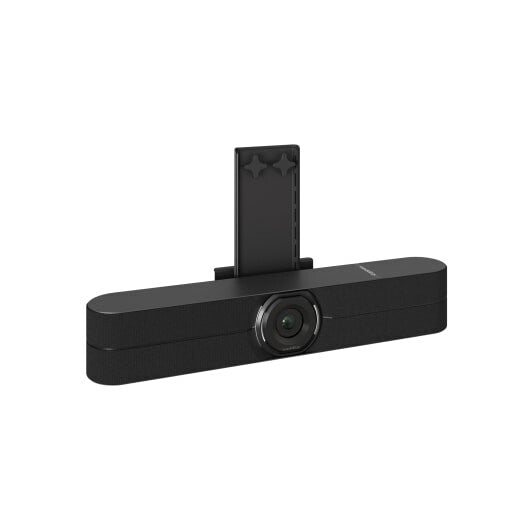

- Fits most video-sound bars having mounting holes in the back or bottom
Chief Video-Sound Bar Mount for Tempo Flat Panel Wall Mount System
$0
Video-sound bar interface bracket, height adjustment, 565 mm wide/73 mm tall, black
For Tempo Flat Panel Wall Mount System.
-
