Atlona  |  SKU: AT-AT-OCS-900N

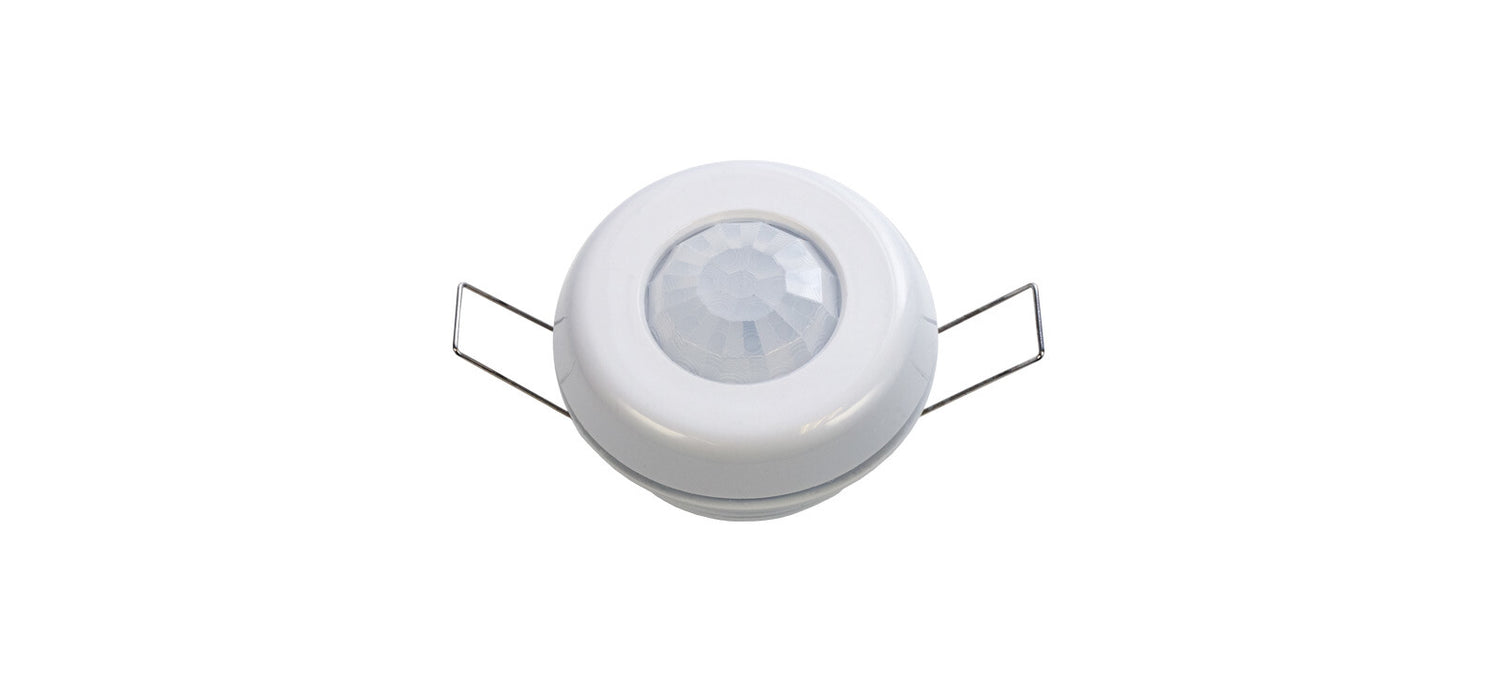

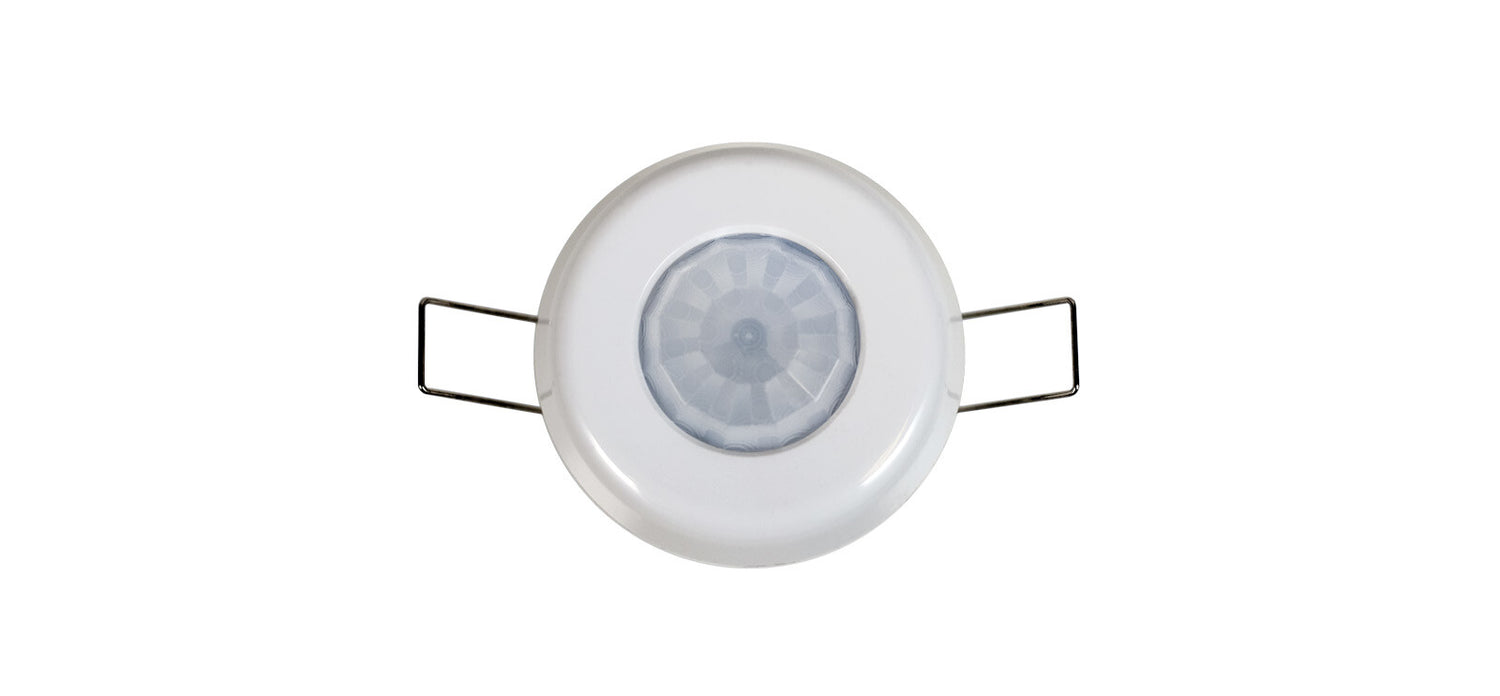

Atlona AT-OCS-900N motion detector Passive infrared (PIR) sensor Wired

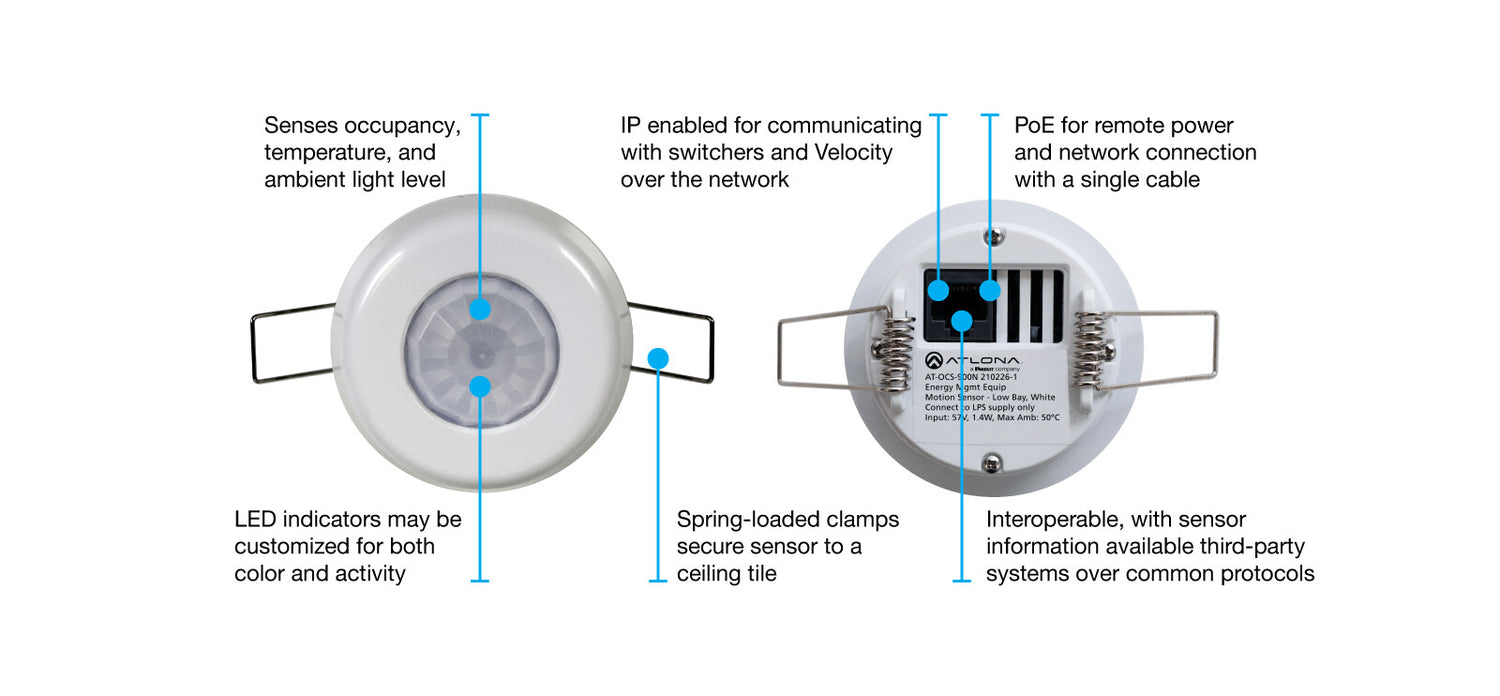

  • Multi-function sensor that detects occupancy, temperature, and ambient light level
  • IP-enabled for communicating state information over Ethernet
  • Works with WAVE™, Velocity™, and Omega™ products to automate system operation
  • Supports network communications with third-party devices using common protocols
  • Customizable detection area covering from 900 ft2 (83.6 m2) – 2,000 ft2 (185.8 m2)
Network-Enabled Occupancy Sensor

AV System Automation
The AT-OCS-900N works directly with the AT-WAVE-101, AT-OME-MS52W, AT-OME-MS42, AT-UHD-SW-510W, or Velocity™ to automatically control AV system startup or shutdown based on room occupancy.

Multi-function and Open Protocols
In addition to occupancy, the OCS-900N also captures temperature and ambient light levels, and allows the information to be communicated to Atlona products and third-party systems over the network using common protocols including UDP, TCP, WebSocket, and MQTT.

Customization and Straightforward Installation

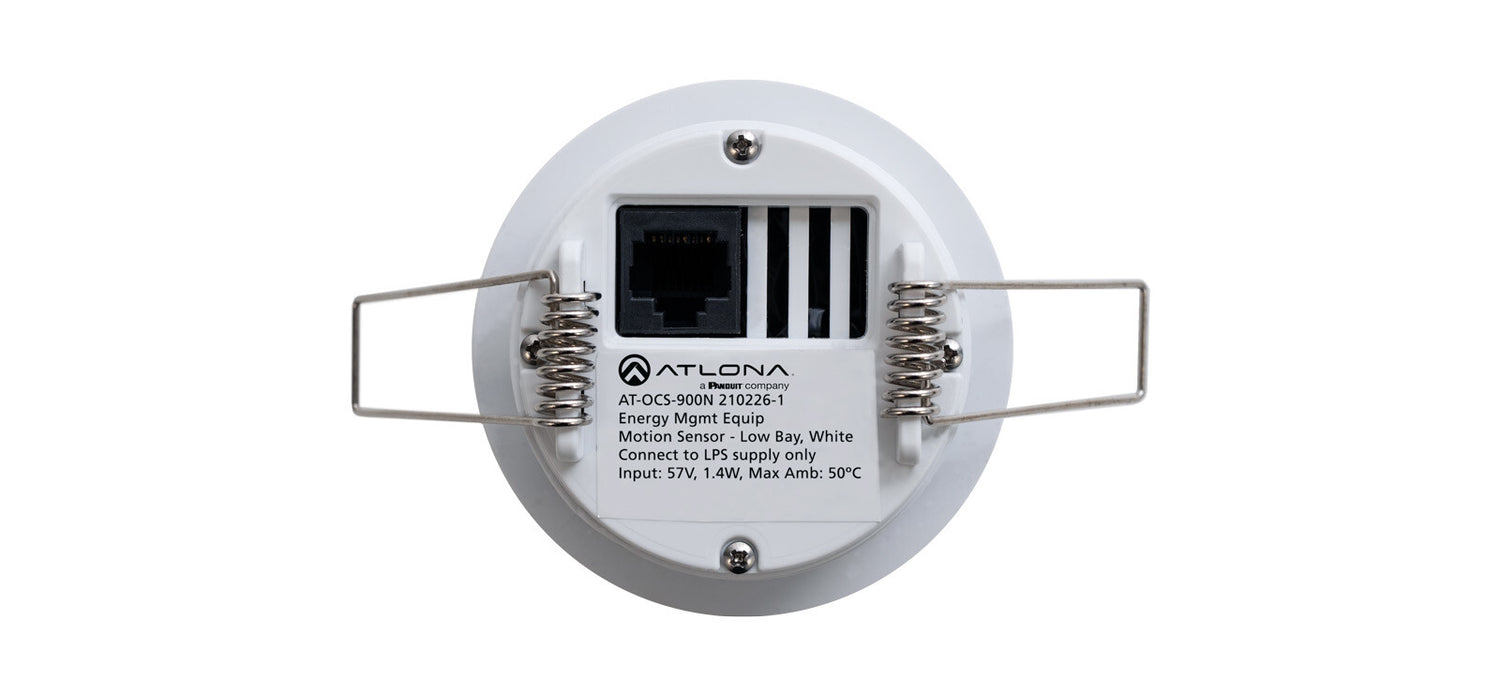

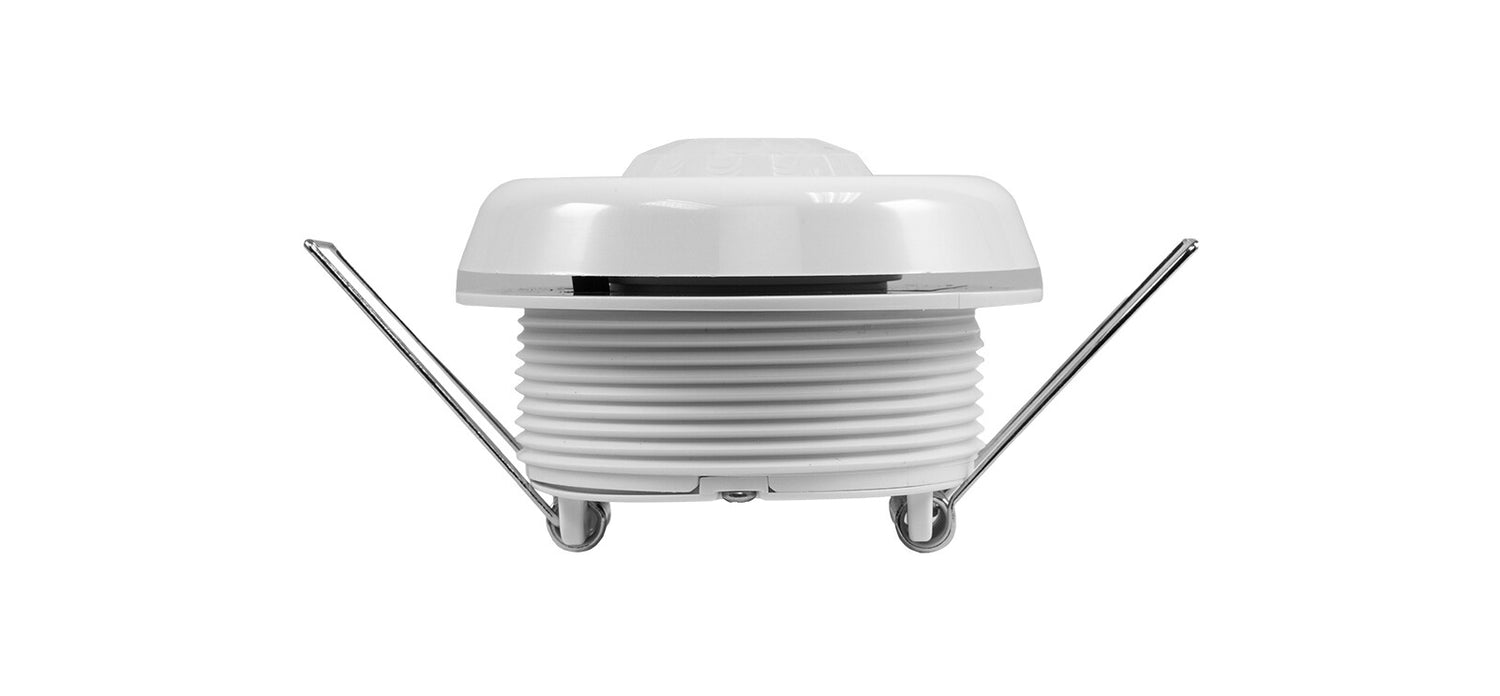

Includes two lenses that cover 900 ft2 (83.6 m2) or 2,000 ft2 (185.8 m2) depending on ceiling height and a blinder insert to help prevent unwanted detection from cross traffic. Configurable LED’s to differentiate it from other equipment in the ceiling. Single PoE connection provides both communication and power. Self-contained spring-loaded clamps secure the sensor to a ceiling tile.

Atlona

Atlona AT-OCS-900N motion detector Passive infrared (PIR) sensor Wired

$500
Network-Enabled Occupancy Sensor

AV System Automation
The AT-OCS-900N works directly with the AT-WAVE-101, AT-OME-MS52W, AT-OME-MS42, AT-UHD-SW-510W, or Velocity™ to automatically control AV system startup or shutdown based on room occupancy.

Multi-function and Open Protocols
In addition to occupancy, the OCS-900N also captures temperature and ambient light levels, and allows the information to be communicated to Atlona products and third-party systems over the network using common protocols including UDP, TCP, WebSocket, and MQTT.

Customization and Straightforward Installation
Includes two lenses that cover 900 ft2 (83.6 m2) or 2,000 ft2 (185.8 m2) depending on ceiling height and a blinder insert to help prevent unwanted detection from cross traffic. Configurable LED’s to differentiate it from other equipment in the ceiling. Single PoE connection provides both communication and power. Self-contained spring-loaded clamps secure the sensor to a ceiling tile.
